Šifra 754350
GBN 202/35H7

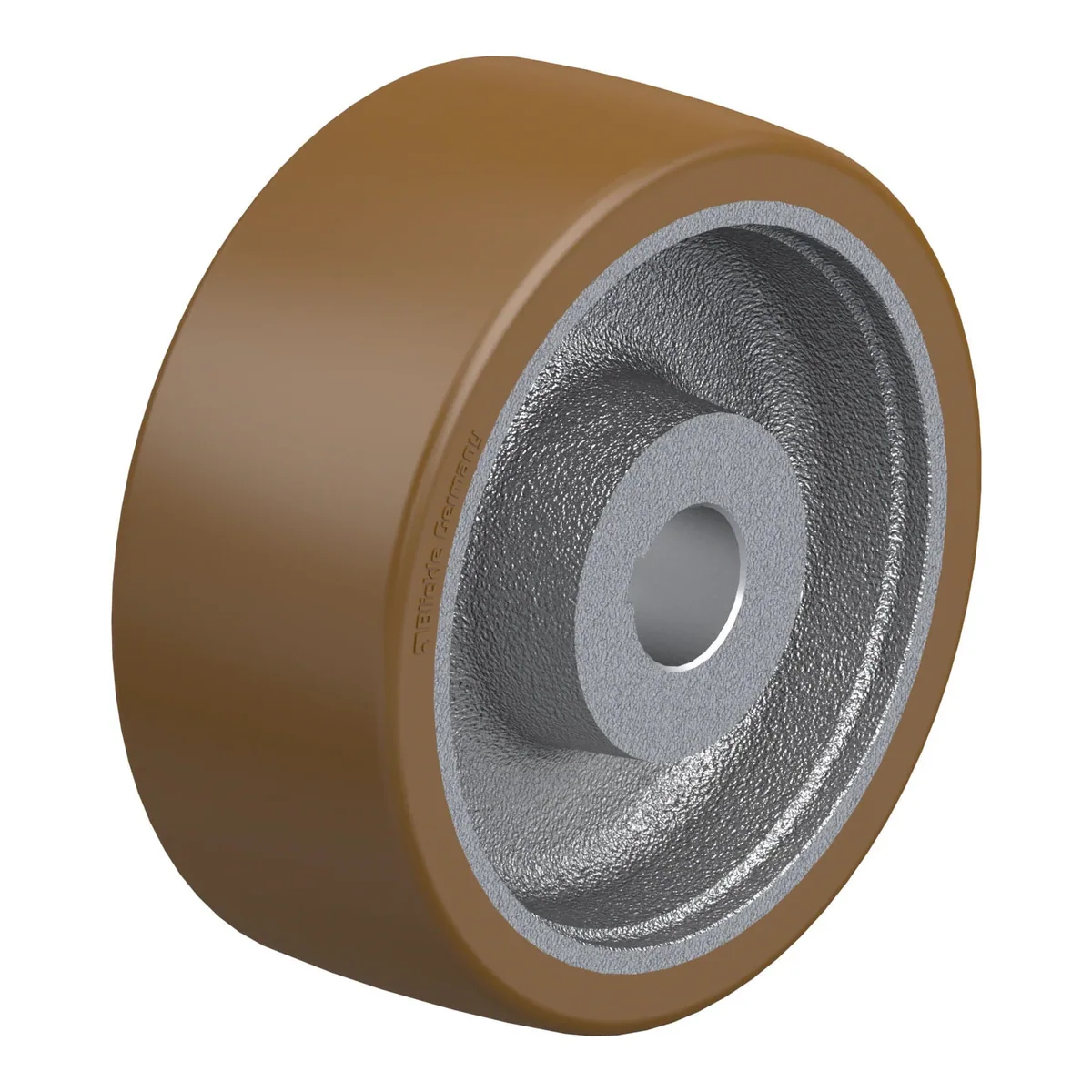

Pogonski kotač, Blickle, Made in Germany
Ukratko: GBN 202/35H7 je pogonski kotač Blickle promjera 200 mm, širine 80 mm, nosivosti 1400 kg pri 4 km/h (statički 3500 kg). Radi na temperaturi od -30 °C do 70 °C. Cijena je 317.29 KM s PDV-om.
Heavy duty drive wheel, with hub keyway, with Blickle Besthane® polyurethane tread, with cast iron wheel centre
317.29 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 754350 |
|---|---|
| EAN | 4047526113179 |
| Promjer točka | 200 mm |
| Širina točka | 80 mm |
| Nosivost pri 4 km/h | 1400 kg |
| Statička nosivost | 3500 kg |
| Promjer otvora osovine | 35 mm |
| Tvrdoća gazišta | 92 Shore A |
| Radna temperatura | -30 °C do 70 °C |
| Težina | 7.4 kg |
| Ne ostavlja tragove | da |
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -30 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
