Šifra 748570
GBN 304/50H7

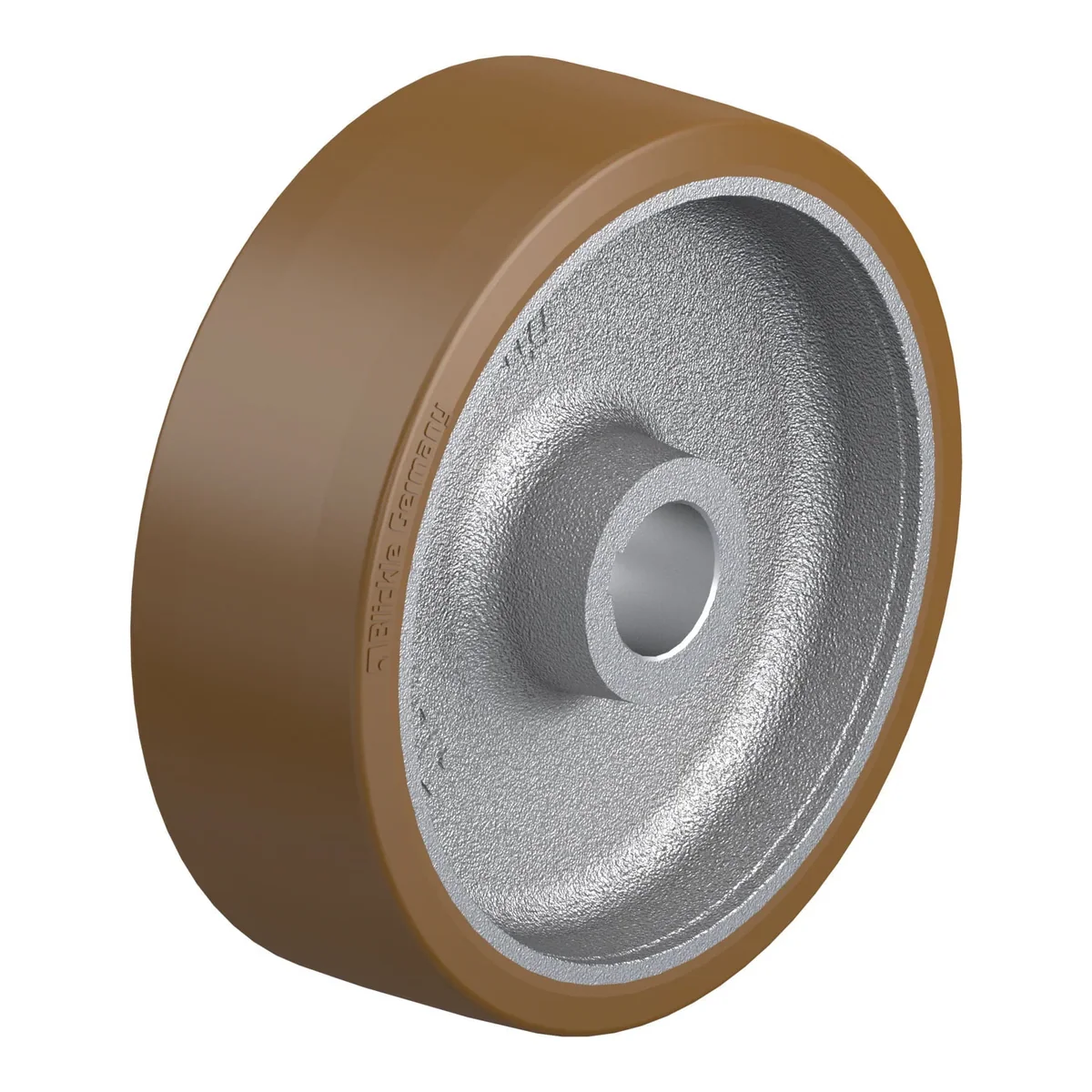

Pogonski kotač, Blickle, Made in Germany
Ukratko: GBN 304/50H7 je pogonski kotač Blickle promjera 300 mm, širine 100 mm, nosivosti 2700 kg pri 4 km/h (statički 6750 kg). Cijena je 686.29 KM s PDV-om.
Heavy duty drive wheel, with hub keyway, with Blickle Besthane® polyurethane tread, with cast iron wheel centre
686.29 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 748570 |
|---|---|
| EAN | 4047526090401 |
| Promjer točka | 300 mm |
| Širina točka | 100 mm |
| Nosivost pri 4 km/h | 2700 kg |
| Statička nosivost | 6750 kg |
| Promjer otvora osovine | 50 mm |
| Ne ostavlja tragove | da |
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -30 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
