Šifra 754362
GBN 363/70H7

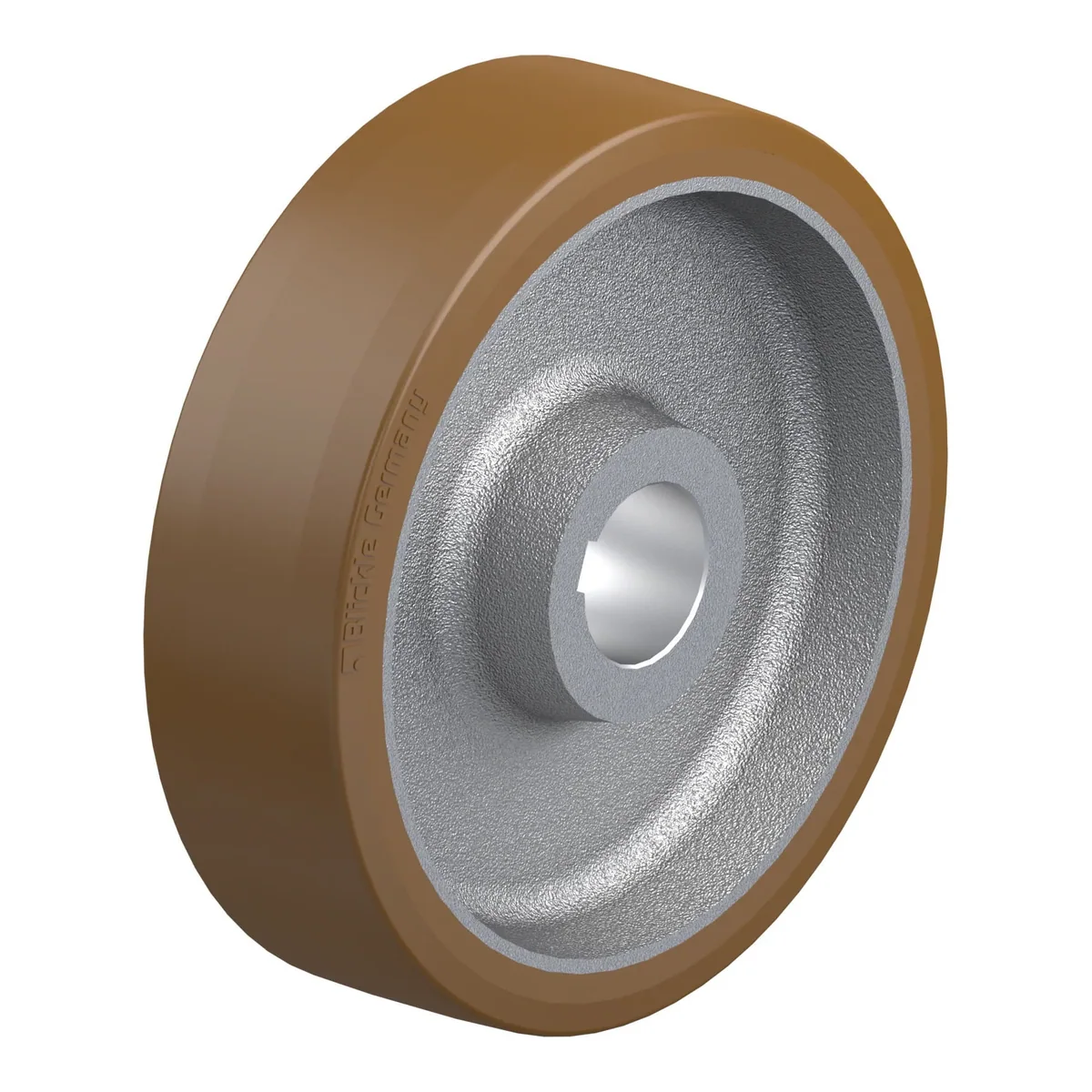

Pogonski kotač, Blickle, Made in Germany
Ukratko: GBN 363/70H7 je pogonski kotač Blickle promjera 360 mm, širine 100 mm, nosivosti 3200 kg pri 4 km/h (statički 8000 kg). Cijena je 1151.05 KM s PDV-om.
Heavy duty drive wheel, with hub keyway, with Blickle Besthane® polyurethane tread, with cast iron wheel centre
1151.05 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 754362 |
|---|---|
| EAN | 4047526113278 |
| Promjer točka | 360 mm |
| Širina točka | 100 mm |
| Nosivost pri 4 km/h | 3200 kg |
| Statička nosivost | 8000 kg |
| Promjer otvora osovine | 70 mm |
| Ne ostavlja tragove | da |
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -30 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
