Šifra 33498
G 200/20K
Kotač, Blickle, Made in Germany

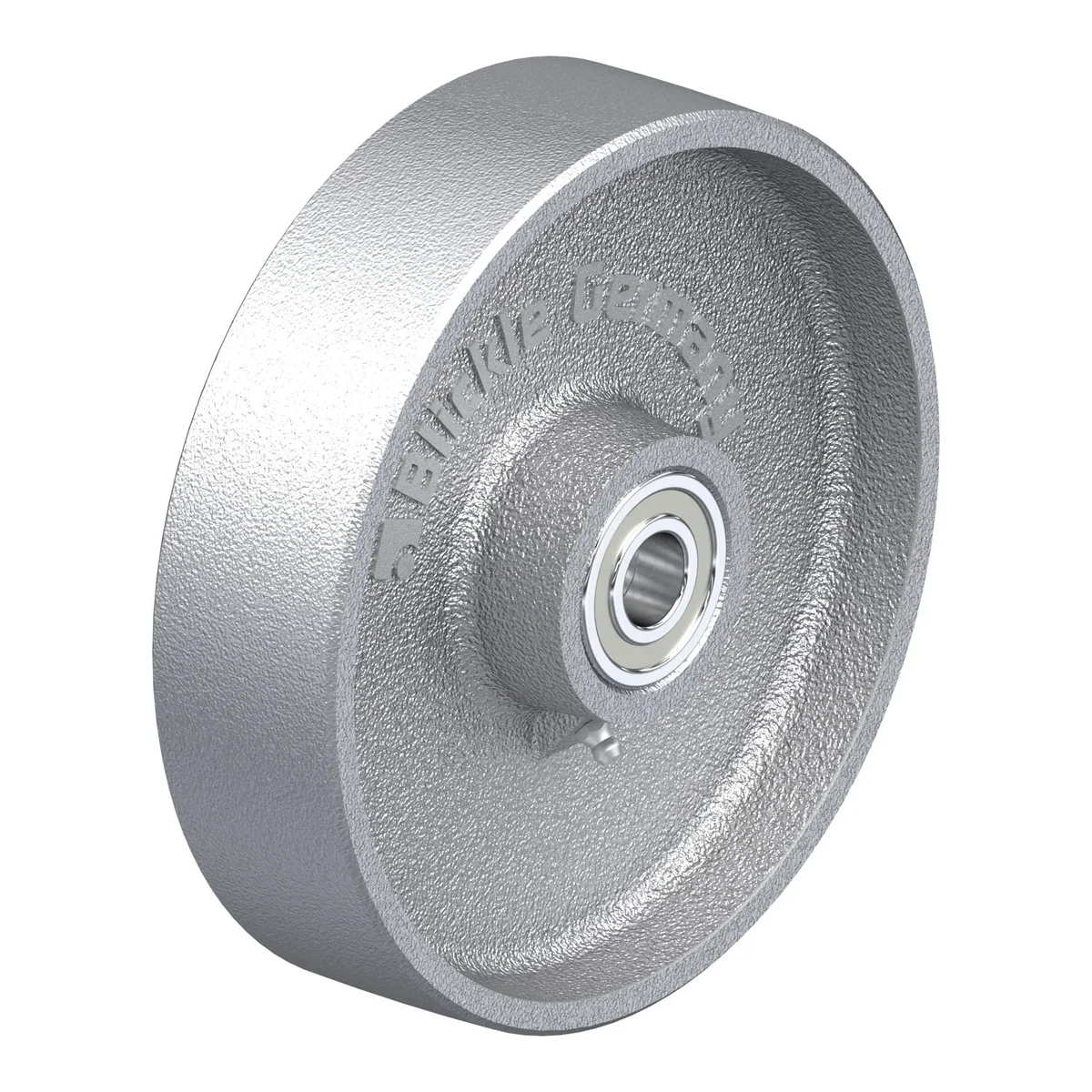

Ukratko: G 200/20K je kotač Blickle promjera 200 mm, širine 50 mm, nosivosti 1100 kg pri 4 km/h (statički 2750 kg). Radi na temperaturi od -20 °C do 120 °C. Cijena je 109.97 KM s PDV-om.
Cast iron wheel
109.97 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 33498 |
|---|---|
| EAN | 4047526033491 |
| Promjer točka | 200 mm |
| Širina točka | 50 mm |
| Nosivost pri 4 km/h | 1100 kg |
| Statička nosivost | 2750 kg |
| Promjer otvora osovine | 20 mm |
| Tvrdoća gazišta | 180 Shore A |
| Radna temperatura | -20 °C do 120 °C |
| Težina | 4.6 kg |
| ESD zaštita | da |
Točak
- rugged grey cast iron, hardness 180–220 HB
- with grease nipple
- extremely low rolling and swivel resistance
- outstanding wear resistance
- machined tread and edges
- lacquered, colour silver
Dodatne karakteristike
- chemical resistance to many aggressive substances
- consider the surface pressure on sensitive floors due to high point loads
- to be lubricated according to the application temperature
