Šifra 846912
PATH 100/10KFD-ELS

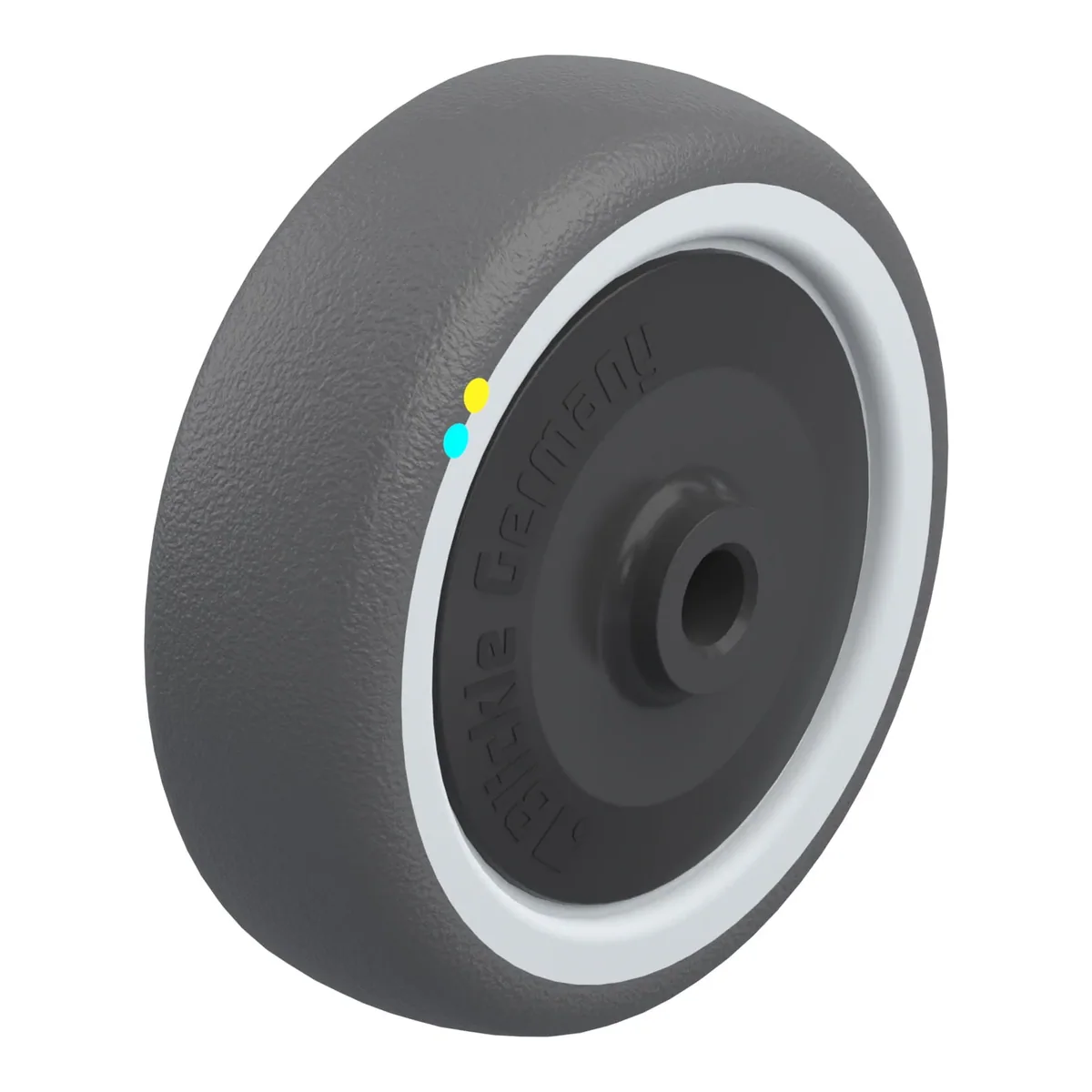

Kotač, Blickle, Made in Germany
Ukratko: PATH 100/10KFD-ELS je kotač Blickle promjera 100 mm, širine 32 mm, nosivosti 130 kg pri 4 km/h (statički 325 kg). Radi na temperaturi od -20 °C do 70 °C. Cijena je 49.06 KM s PDV-om.
Wheel, with thermoplastic polyurethane tread, with nylon wheel centre, with synthetic thread guard, large, with additionals ball bea ring seals, electrically conductive, non-marking
49.06 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 846912 |
|---|---|
| EAN | 4047526125615 |
| Promjer točka | 100 mm |
| Širina točka | 32 mm |
| Nosivost pri 4 km/h | 130 kg |
| Statička nosivost | 325 kg |
| Promjer otvora osovine | 10 mm |
| Tvrdoća gazišta | 94 Shore A |
| Radna temperatura | -20 °C do 70 °C |
| Težina | 0.3 kg |
| Ne ostavlja tragove | da |
| ESD zaštita | da |
Dodatne karakteristike
- large thread guard, with additional, ball bearing seals
- very high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
- electrical conductivity (ohmic resistance) ≤ 104Ω
