Šifra 7567
G 80/12G

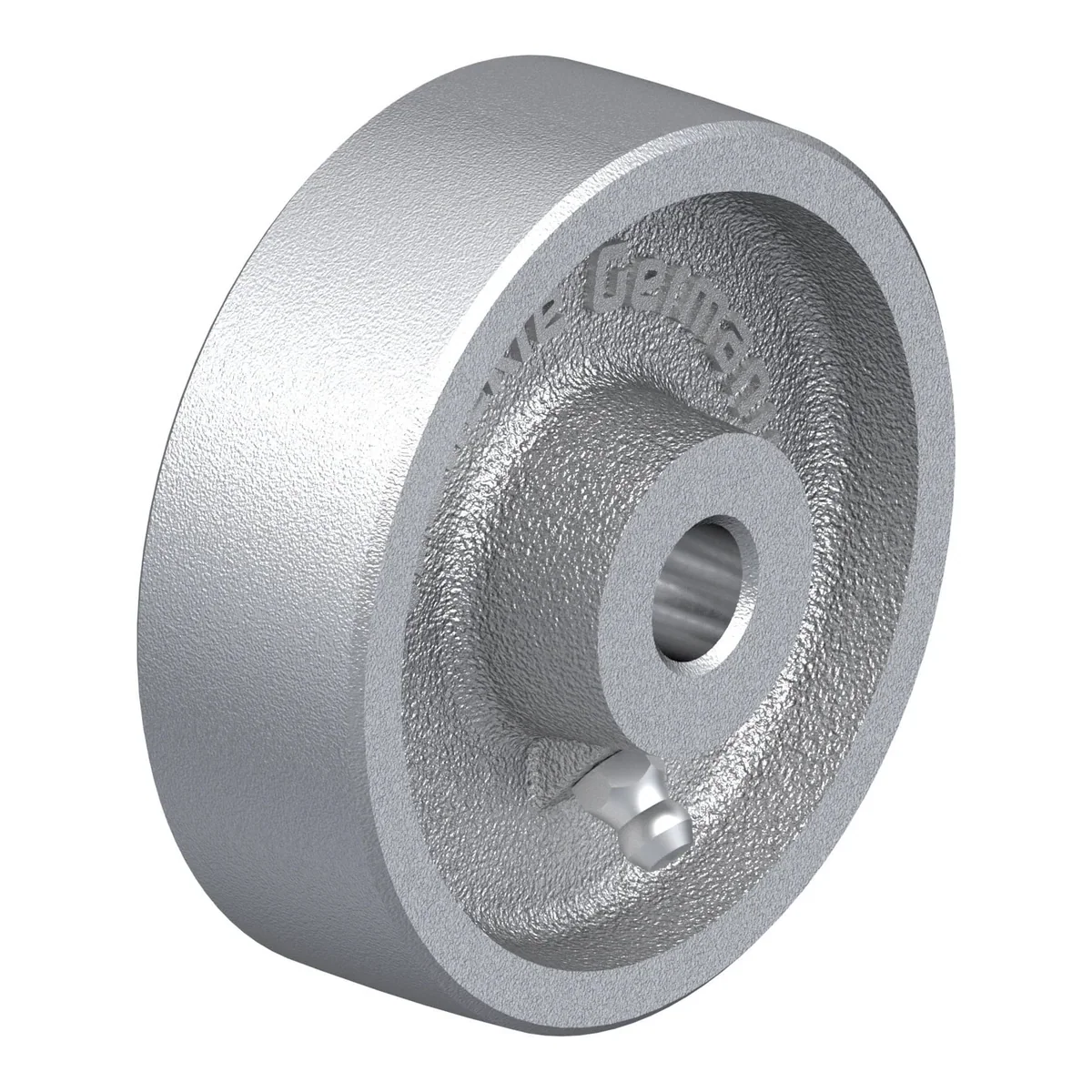

Kotač, Blickle, Made in Germany
Ukratko: G 80/12G je kotač Blickle promjera 80 mm, širine 25 mm, nosivosti 250 kg pri 4 km/h (statički 625 kg). Radi na temperaturi od -100 °C do 600 °C. Cijena je 20.05 KM s PDV-om.
Cast iron wheel
20.05 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 7567 |
|---|---|
| EAN | 4047526007560 |
| Promjer točka | 80 mm |
| Širina točka | 25 mm |
| Nosivost pri 4 km/h | 250 kg |
| Statička nosivost | 625 kg |
| Promjer otvora osovine | 12 mm |
| Tvrdoća gazišta | 180 Shore A |
| Radna temperatura | -100 °C do 600 °C |
| Težina | 0.6 kg |
| ESD zaštita | da |
Točak
- rugged grey cast iron, hardness 180–220 HB
- with grease nipple
- extremely low rolling and swivel resistance
- outstanding wear resistance
- machined tread and edges
- lacquered, colour silver
Dodatne karakteristike
- chemical resistance to many aggressive substances
- consider the surface pressure on sensitive floors due to high point loads
- provide adequate lubrication on a regular basis for plain bore version
- to be lubricated according to the application temperature
