Šifra 608182
GEV 520/40K

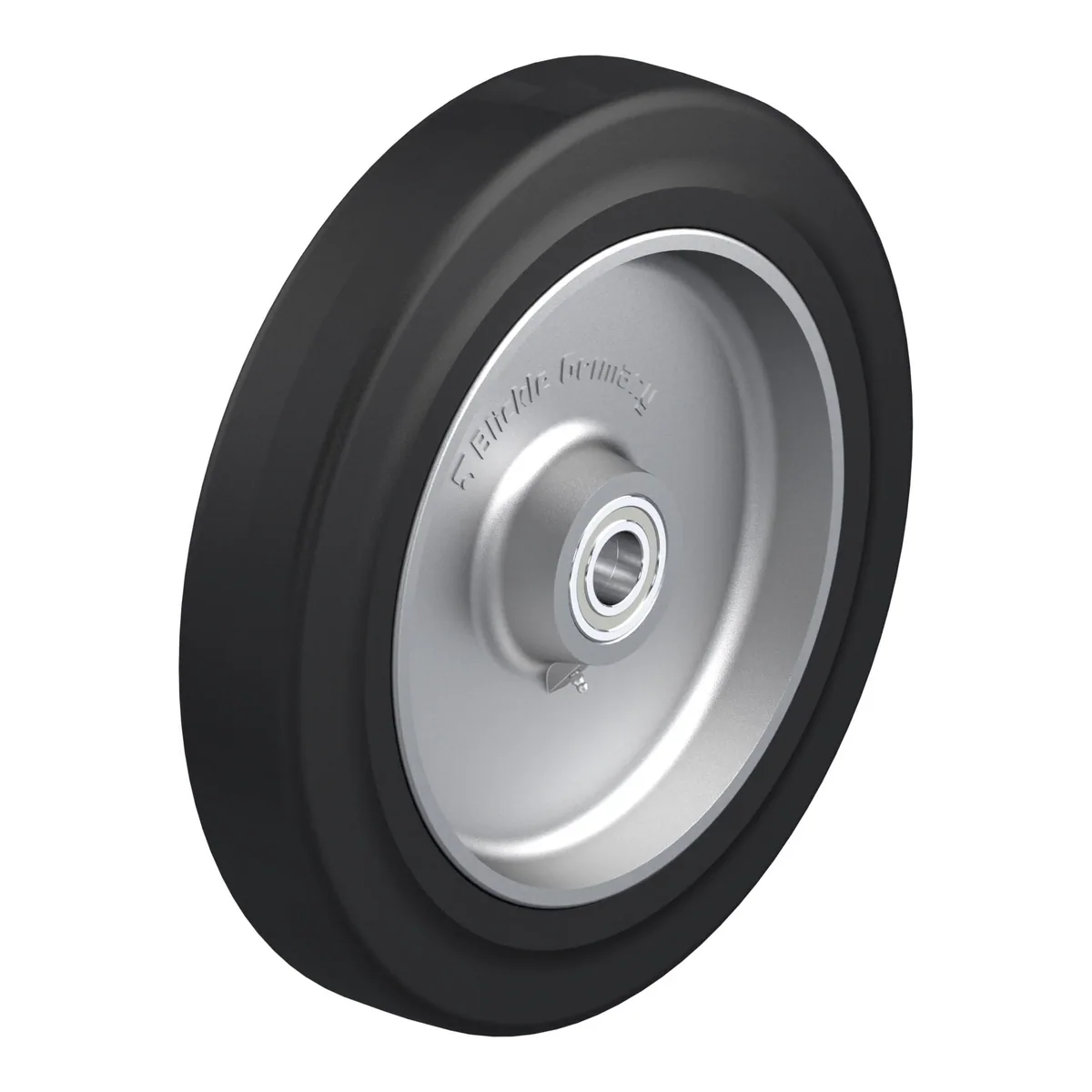

Kotač, Blickle, Made in Germany
Ukratko: GEV 520/40K je kotač Blickle promjera 520 mm, širine 100 mm, nosivosti 1830 kg pri 4 km/h (statički 4575 kg). Radi na temperaturi od -20 °C do 80 °C. Cijena je 1283.43 KM s PDV-om.
Heavy duty wheel, with elastic solid rubber tyre, with cast iron wheel centre
1283.43 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 608182 |
|---|---|
| EAN | 4047526608187 |
| Promjer točka | 520 mm |
| Širina točka | 100 mm |
| Nosivost pri 4 km/h | 1830 kg |
| Statička nosivost | 4575 kg |
| Promjer otvora osovine | 40 mm |
| Tvrdoća gazišta | 65 Shore A |
| Radna temperatura | -20 °C do 80 °C |
| Težina | 38.5 kg |
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
- wheel centre is approximately 4 mm wider than the specified wheel width
