Šifra 460022
GTHN 404/70H7

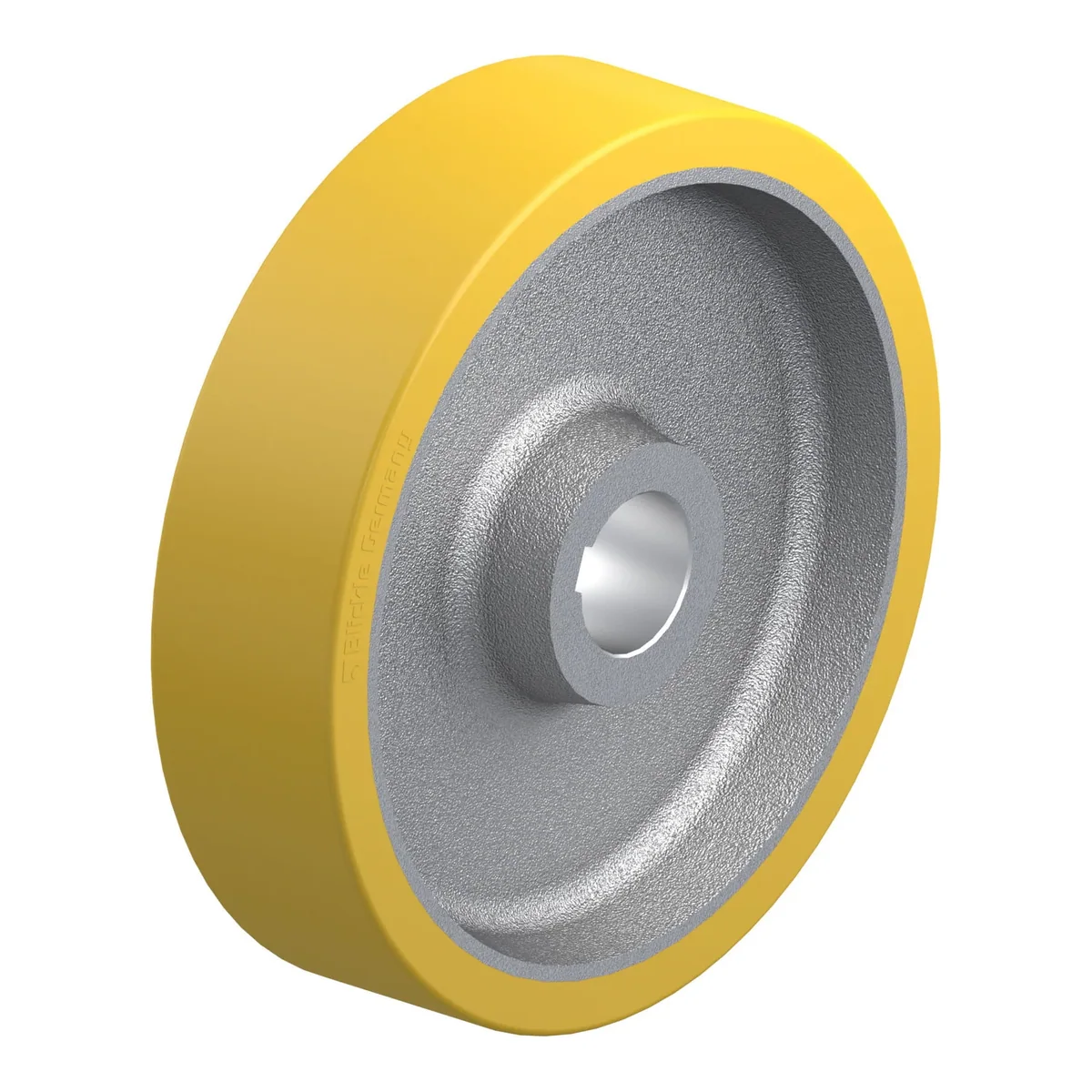

Pogonski kotač, Blickle, Made in Germany
Ukratko: GTHN 404/70H7 je pogonski kotač Blickle promjera 400 mm, širine 100 mm, nosivosti 3400 kg pri 4 km/h (statički 8500 kg). Cijena je 1298.77 KM s PDV-om.
Heavy duty drive wheel, with hub keyway, with Blickle Extrathane® polyurethane tread, with cast iron wheel centre
1298.77 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 460022 |
|---|---|
| EAN | 4047526460020 |
| Promjer točka | 400 mm |
| Širina točka | 100 mm |
| Nosivost pri 4 km/h | 3400 kg |
| Statička nosivost | 8500 kg |
| Promjer otvora osovine | 70 mm |
| Ne ostavlja tragove | da |
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -30 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
