Šifra 656405
SPKGSPO 50G

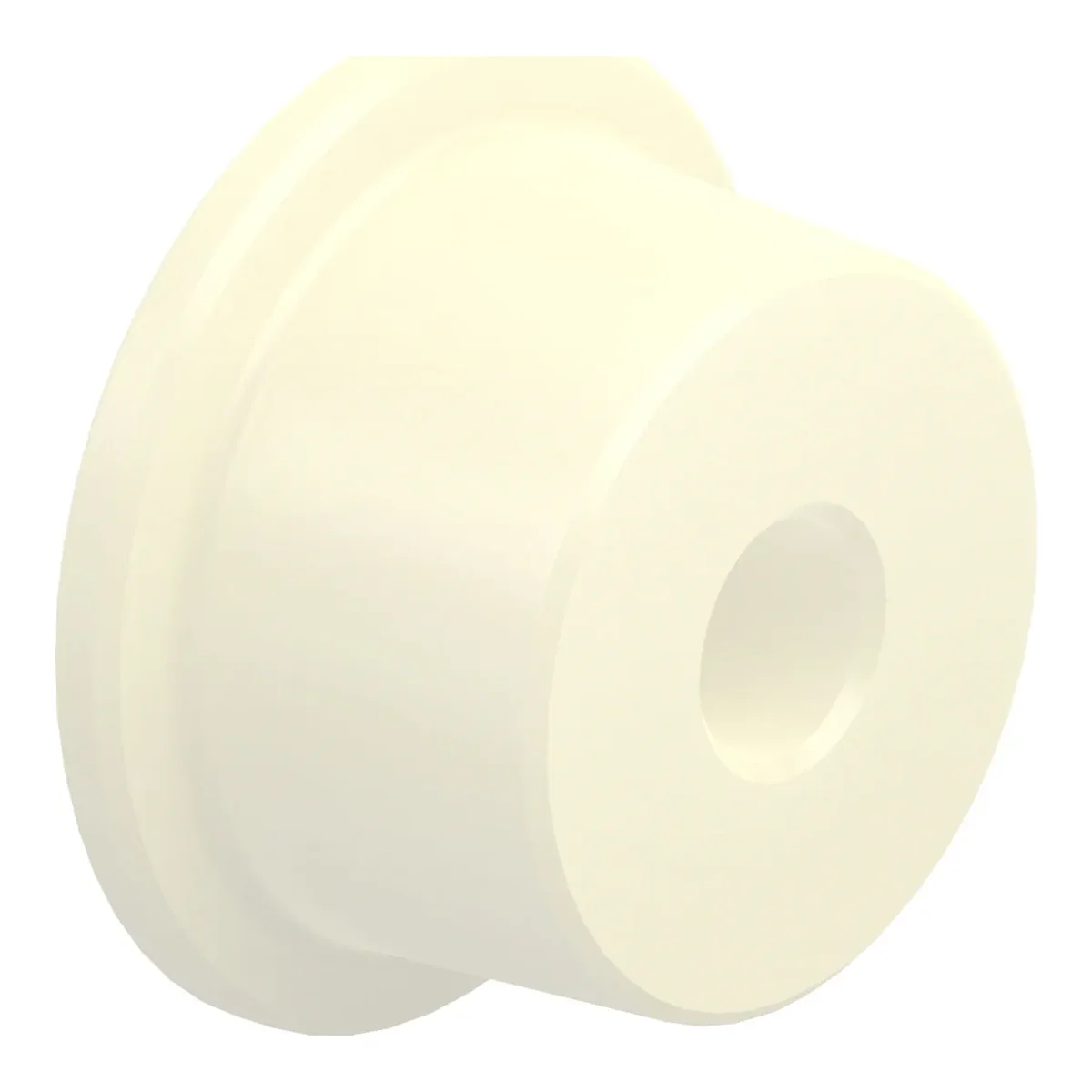

Kotač s prirubnicom, Blickle, Made in Germany
Ukratko: SPKGSPO 50G je kotač s prirubnicom Blickle promjera 50 mm, širine 32 mm, nosivosti 220 kg pri 4 km/h (statički 550 kg). Cijena je 51.42 KM s PDV-om.
Heavy duty flanged wheels made from compressed cast nylon
51.42 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 656405 |
|---|---|
| EAN | 4047526108519 |
| Promjer točka | 50 mm |
| Širina točka | 32 mm |
| Nosivost pri 4 km/h | 220 kg |
| Statička nosivost | 550 kg |
| Promjer otvora osovine | 15 mm |
| Ne ostavlja tragove | da |
| Otporan na koroziju | da |
Točak
- high-quality cast nylon, impact resistant, hardness 80 Shore D
- 3° taper tread to axle
- very low rolling resistance
- high abrasion resistance
- colour natural beige
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
- the load capacities provided in the table refer to the allocation of flanged wheels to rail profiles in accordance with DIN 536 specified below (crane rail standard):SPKGSPO 50G–SPKGSPO 200K,SPKGSPO 250K: A45SPKGSPO 201K, SPKGSPO 251K: A55
