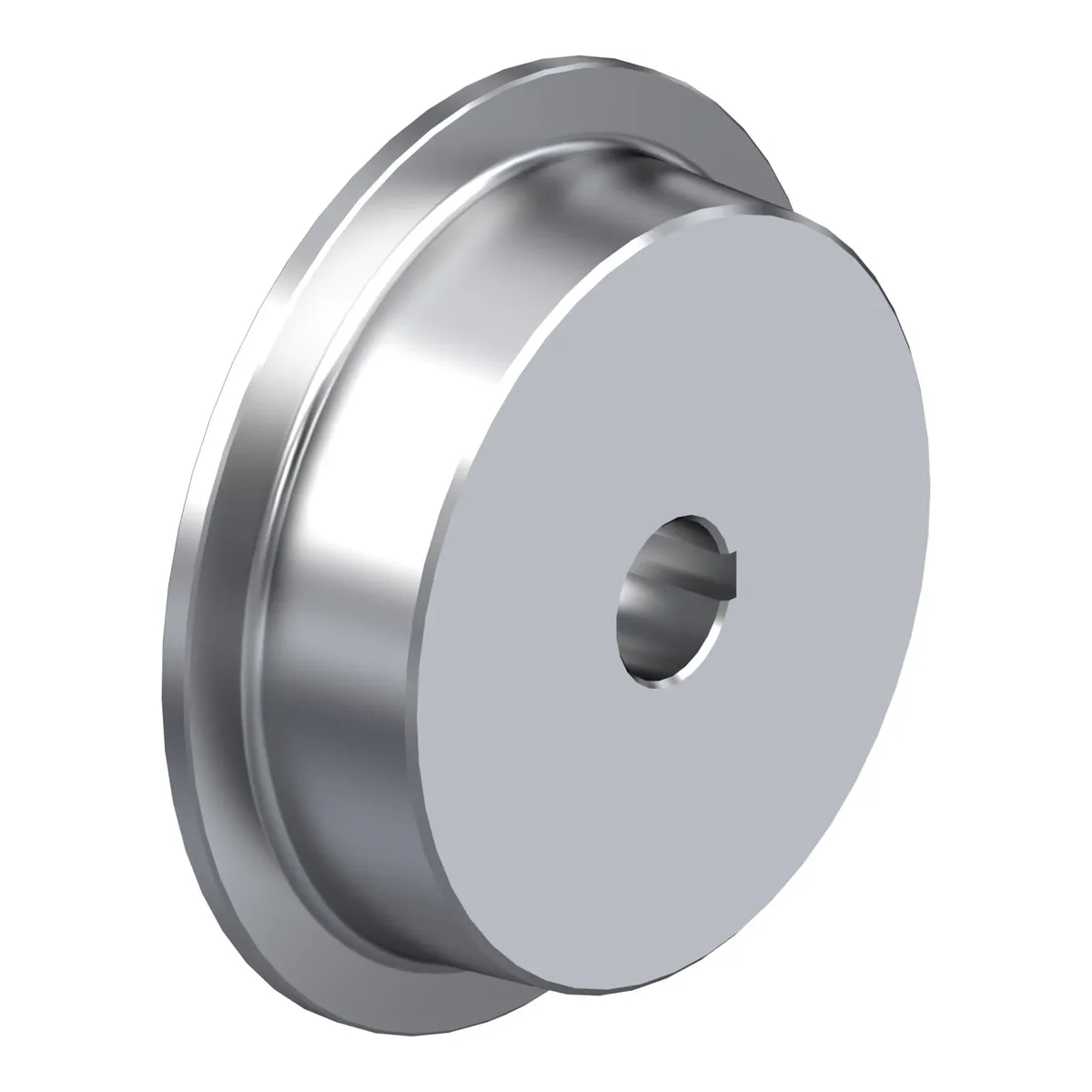

SPKVSN 200/40H7 – kotač s prirubnicom Blickle

Šifra 395822

SPKVSN 200/40H7

Kotač s prirubnicom, Blickle, Made in Germany

Ukratko: SPKVSN 200/40H7 je kotač s prirubnicom Blickle promjera 200 mm, širine 60 mm, nosivosti 2500 kg pri 4 km/h (statički 6250 kg). Cijena je 886.66 KM s PDV-om.

Solid steel flanged drive wheel, with hub keyway

886.66 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla395822
EAN4047526107895
Promjer točka200 mm
Širina točka60 mm
Nosivost pri 4 km/h2500 kg
Statička nosivost6250 kg
Promjer otvora osovine40 mm
Ne ostavlja tragoveda
ESD zaštitada

Točak

  • heat-treatable steel, hardness 190–230 HB
  • lightly-oiled surface
  • 3° taper tread to axle
  • extremely low rolling resistance
  • extremely high static and dynamic load capacity
  • axle bore and hub keyway in accordance with DIN 6885

Dodatne karakteristike

  • chemical resistance to many aggressive substances
  • operating temperature: -100 °C to +600 °C, load capacity reduced by 50% at +300 °C
  • the load capacities provided in the table refer to the allocation of flanged wheels to rail profiles in accordance with DIN 536 specified below (crane rail standard):SPKVSN 200: A45SPKVSN 250: A55SPKVSN 300: A65
