Šifra 754433

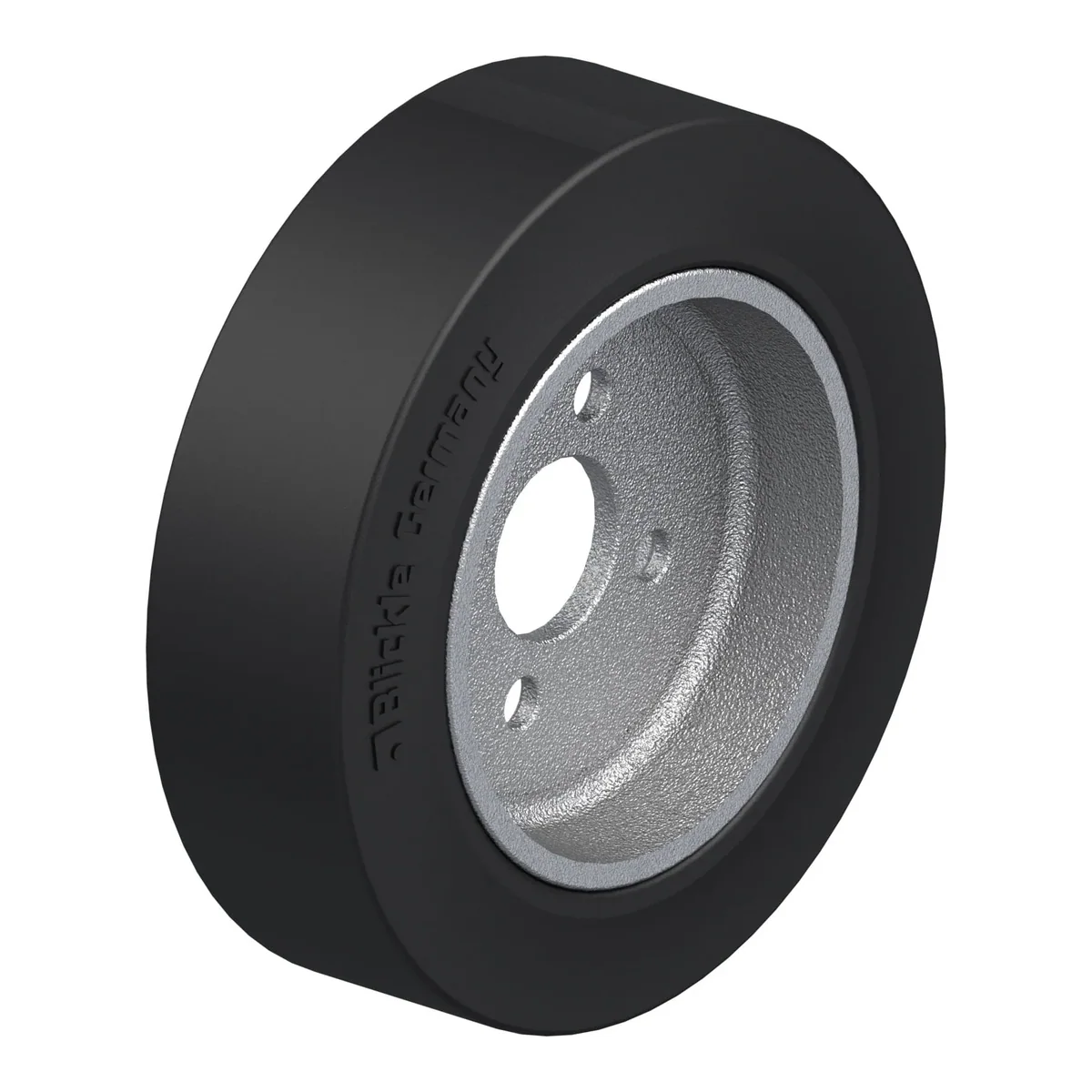

GEVA 302/4
Pogonski kotač, Blickle, Made in Germany
Ukratko: GEVA 302/4 je pogonski kotač Blickle promjera 300 mm, širine 90 mm, nosivosti 1080 kg pri 4 km/h (statički 2700 kg). Radi na temperaturi od -30 °C do 80 °C. Cijena je 563.43 KM s PDV-om.
Heavy duty hub fitting wheel, with elastic solid rubber tyre, with cast iron wheel centre
563.43 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 754433 |
|---|---|
| EAN | 4047526113704 |
| Promjer točka | 300 mm |
| Širina točka | 90 mm |
| Nosivost pri 4 km/h | 1080 kg |
| Statička nosivost | 2700 kg |
| Tvrdoća gazišta | 65 Shore A |
| Radna temperatura | -30 °C do 80 °C |
| Težina | 9.7 kg |
Dodatne karakteristike
- fitted using domed anchor nuts and bolts in accordance with DIN 74361
- chemical resistance to many aggressive substances, except oils
- operating temperature: -30 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
- wheel centre is approximately 4 mm wider than the specified wheel width
