L-ALTH 125K-FI-AS-FS – okretni točkić Blickle

Šifra 746982

L-ALTH 125K-FI-AS-FS

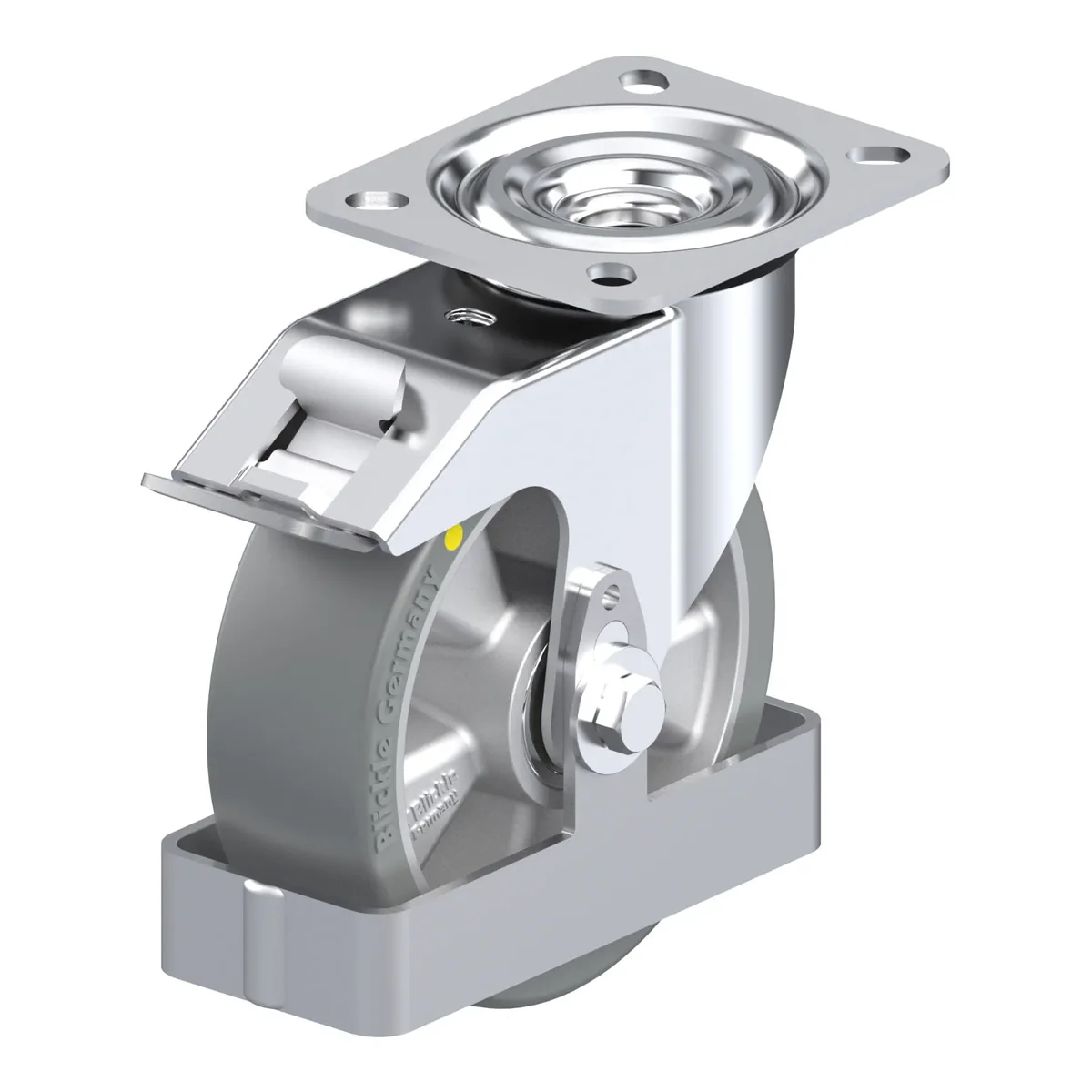

Okretni točkić, Blickle, Made in Germany

Ukratko: L-ALTH 125K-FI-AS-FS je okretni točkić Blickle promjera 125 mm, širine 40 mm, nosivosti 250 kg pri 4 km/h (statički 625 kg). Ukupna visina je 150 mm. Cijena je 191.58 KM s PDV-om.

Pressed steel swivel castor, medium duty design, with top plate fitting, with brake system 'stop-fix', steel foot guard, heavy duty wheel, with Blickle Extrathane® polyurethane tread, with aluminium wheel centre, antistatic

191.58 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla746982
EAN4047526376482
Promjer točka125 mm
Širina točka40 mm
Ukupna visina150 mm
Nosivost pri 4 km/h250 kg
Statička nosivost625 kg
Veličina ploče100 x 85 mm
Razmak rupa65.0 x 55.0 mm
Offset40 mm
Ne ostavlja tragoveda
ESD zaštitada

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 150 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour grey, non-marking, non-staining
  • wheel centre: die-cast aluminium, colour silver grey

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
  • electrical conductivity (ohmic resistance) ≤ 107Ω
