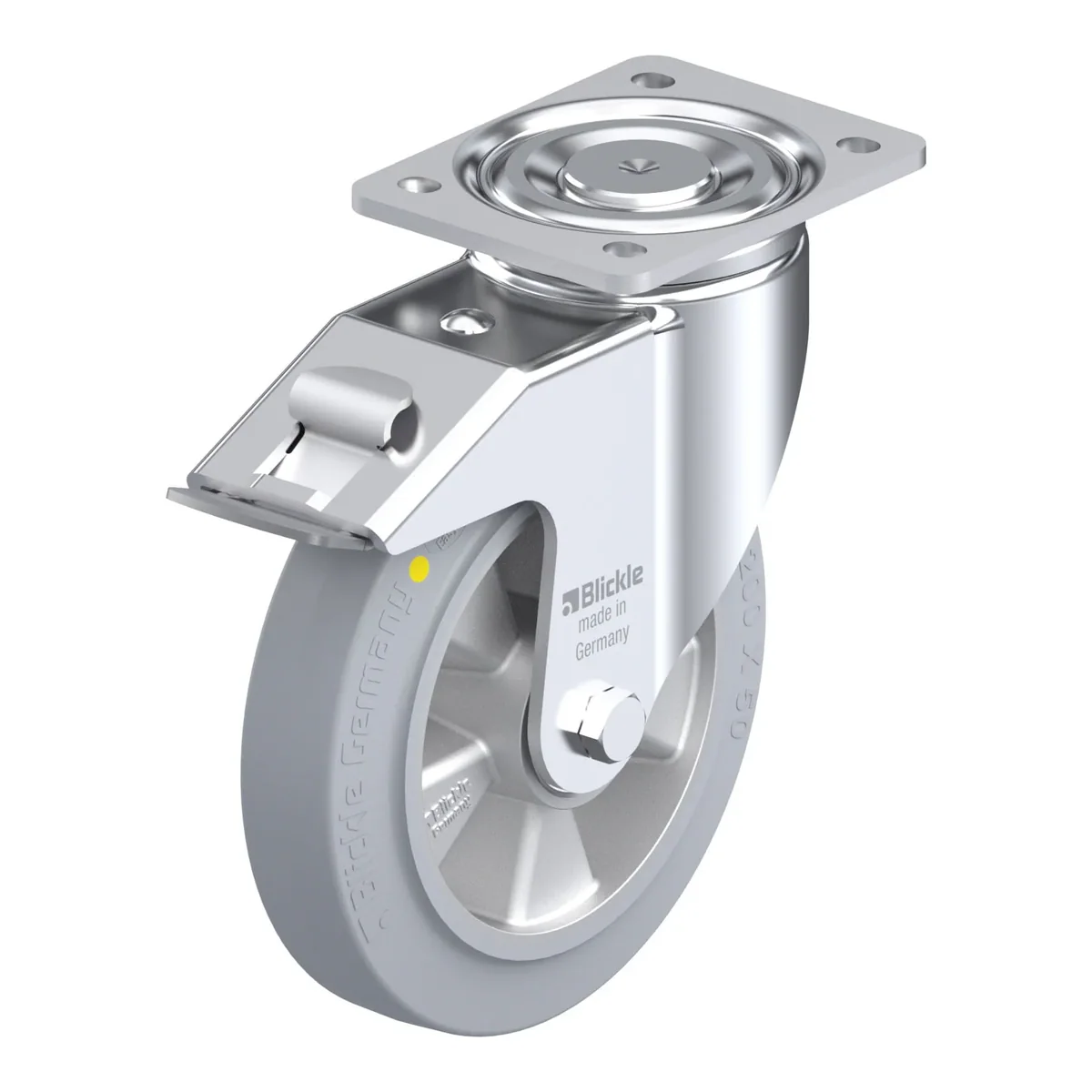

LH-ALEV 200K-FI-SG-AS – okretni točkić Blickle

Šifra 918025

LH-ALEV 200K-FI-SG-AS

Okretni točkić, Blickle, Made in Germany

Ukratko: LH-ALEV 200K-FI-SG-AS je okretni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 450 kg pri 4 km/h (statički 1125 kg). Ukupna visina je 245 mm. Radi na temperaturi od -20 °C do 80 °C. Cijena je 299.59 KM s PDV-om.

Pressed steel swivel castor, heavy duty design, with top plate fitting, with brake system 'stop-fix', heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with aluminium wheel centre, non-marking, grey, antistatic

299.59 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla918025
EAN4047526349110
Promjer točka200 mm
Širina točka50 mm
Ukupna visina245 mm
Nosivost pri 4 km/h450 kg
Statička nosivost1125 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset61 mm
Tvrdoća gazišta65 Shore A
Radna temperatura-20 °C do 80 °C
Težina4.9 kg
Ne ostavlja tragoveda
ESD zaštitada

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • heavy fork and top plate
  • double ball bearing in the swivel head
  • bolted and secured central kingpin, extremely strong
  • particularly resistant to shocks and impact due tofour specially-shaped, hardened bearing seats

Točak

  • tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour grey, non-marking
  • wheel centre: die-cast aluminium

Dodatne karakteristike

  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
  • electrical conductivity (ohmic resistance) ≤ 107Ω
