Šifra 48678
LS-GSPO 300K

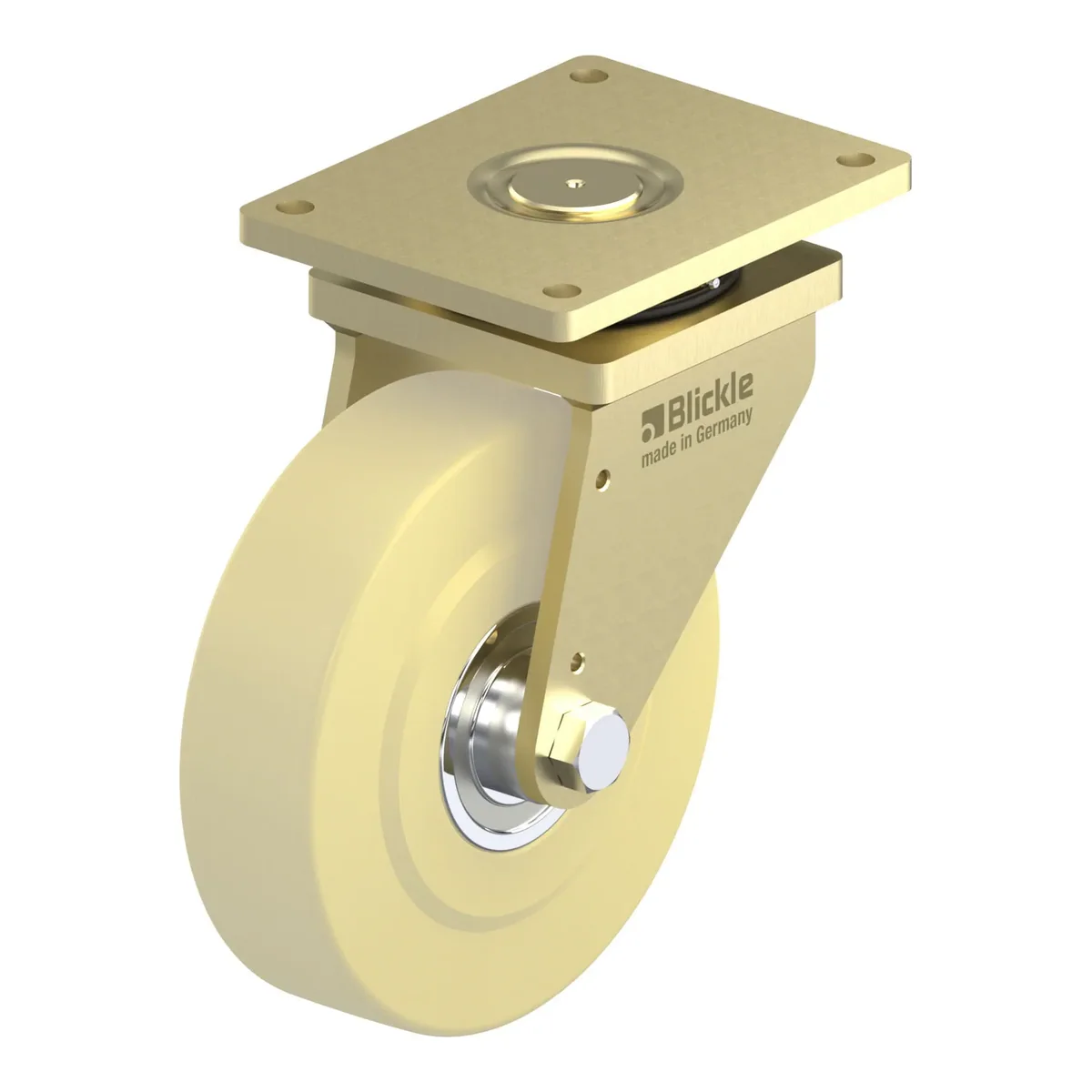

Okretni točkić, Blickle, Made in Germany
Ukratko: LS-GSPO 300K je okretni točkić Blickle promjera 300 mm, širine 80 mm, nosivosti 6000 kg pri 4 km/h (statički 15000 kg). Ukupna visina je 380 mm. Cijena je 2682.96 KM s PDV-om.
Heavy duty welded steel swivel castor, heavy duty swivel head, heavy duty wheel made of compressed cast nylon
2682.96 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 48678 |
|---|---|
| EAN | 4047526048679 |
| Promjer točka | 300 mm |
| Širina točka | 80 mm |
| Ukupna visina | 380 mm |
| Nosivost pri 4 km/h | 6000 kg |
| Statička nosivost | 15000 kg |
| Veličina ploče | 255 x 200 mm |
| Razmak rupa | 220.0 x 170.0 mm |
| Offset | 90 mm |
| Ne ostavlja tragove | da |
Nosač
- particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
- axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
- bolted and secured welded central kingpin, extremely strong
- dust and splash-proof
- grease nipple
Točak
- high-quality cast nylon, reaction-injected, impact resistant, hardness 80 Shore D, colour natural beige
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- reduced moisture absorption
- operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
- consider the surface pressure on sensitive floors due to high point loads
