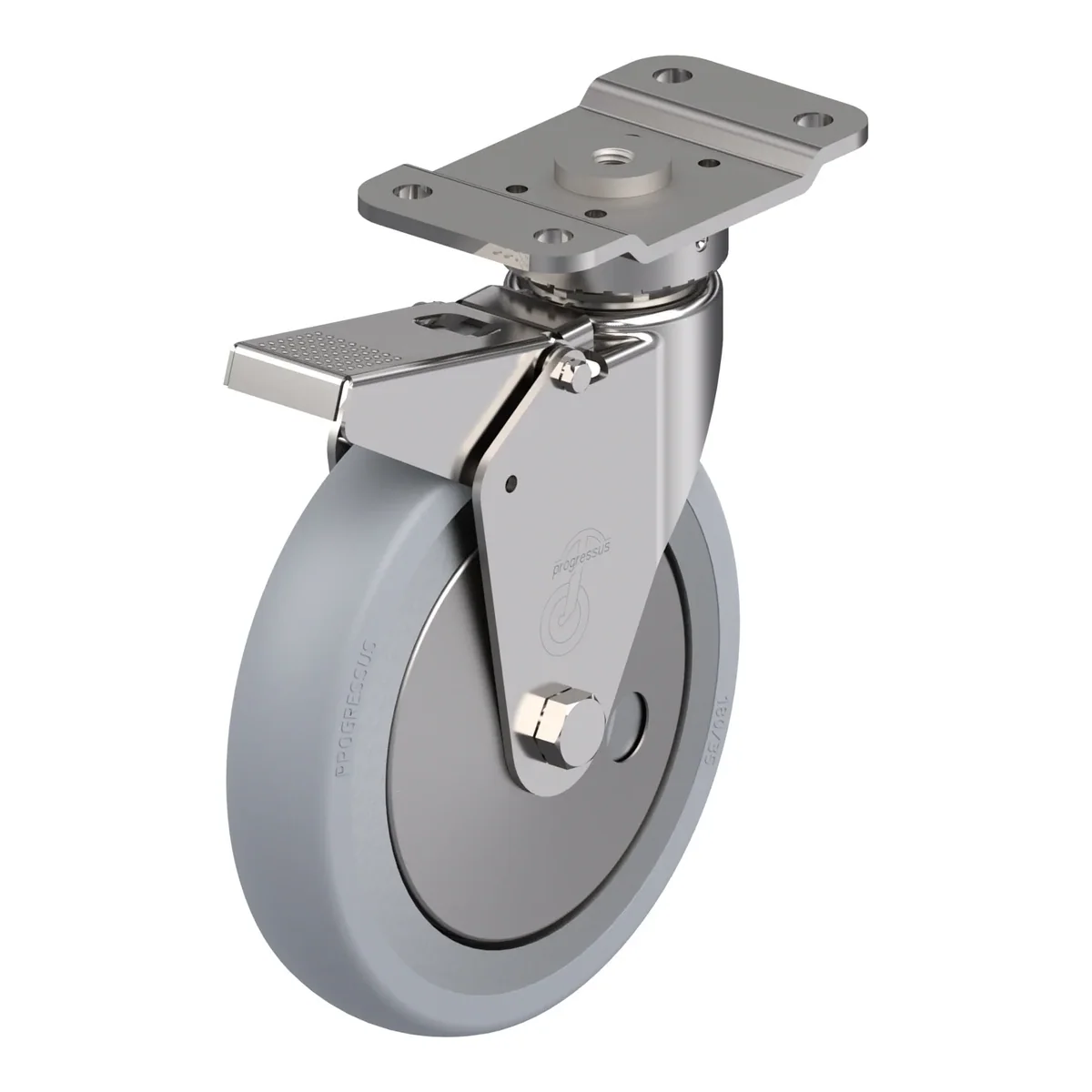

LPX-PGV 186XK-PG3-FI-SG-FA – okretni točkić Blickle

Šifra 900365

LPX-PGV 186XK-PG3-FI-SG-FA

Okretni točkić, Blickle, Made in Germany

Ukratko: LPX-PGV 186XK-PG3-FI-SG-FA je okretni točkić Blickle promjera 186 mm, širine 38 mm, nosivosti 200 kg pri 4 km/h (statički 500 kg). Ukupna visina je 236 mm. Cijena je 1028.41 KM s PDV-om.

Stainless steel swivel castor, with top plate fitting, with brake system 'stop-fix', wheel, with elastic solid rubber tyres, with aluminium wheel centre, non-marking, grey, with steel thread guard

1028.41 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla900365
EAN4047526313531
Promjer točka186 mm
Širina točka38 mm
Ukupna visina236 mm
Nosivost pri 4 km/h200 kg
Statička nosivost500 kg
Veličina ploče140 x 80 mm
Razmak rupa105.0 x 50.0 mm
Offset55 mm
Ne ostavlja tragoveda
Otporan na korozijuda

Nosač

  • high-quality chromium-nickel steel (1.4301 / AISI304), corrosion-resistant, vibration-ground finished
  • all parts including axle material are corrosion-resistant
  • four-point ball bearing for optimal absorption of vertical and horizontal forces
  • hardened precision fork head made from corrosion-resistant steel (1.4034 / AISI420)
  • excellent swivel characteristics, particularly resistant to impact and shocks
  • grease nipple

Točak

  • tread: high-quality elastic solid rubber in smooth rolling quality, hardness 80 Shore A, colour grey, non-marking
  • wheel centre: die-cast aluminium, colour silver grey

Dodatne karakteristike

  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +134 °C, reduced load capacity over +35 °C
  • suitable for autoclaves
