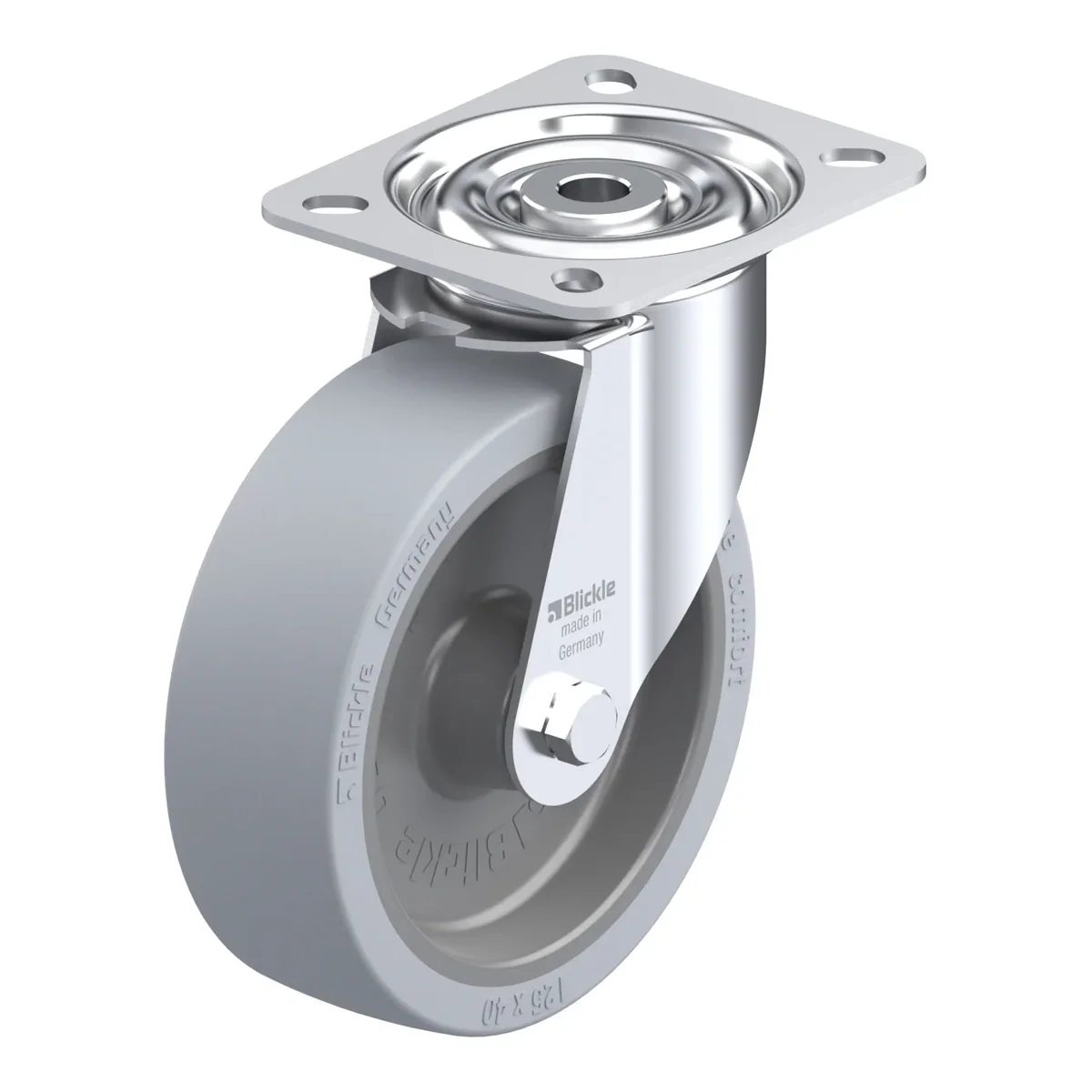

LI-POSI 125G-SG – okretni točkić Blickle

Šifra 757061

LI-POSI 125G-SG

Okretni točkić, Blickle, Made in Germany

Ukratko: LI-POSI 125G-SG je okretni točkić Blickle promjera 125 mm, širine 40 mm, nosivosti 120 kg pri 4 km/h (statički 300 kg). Ukupna visina je 150 mm. Cijena je 136.52 KM s PDV-om.

Pressed steel swivel castor, with top plate fitting, heat-resistant, Blickle TempLine® Comfort wheel, with silicone rubber tread, with synthetic wheel centre, heat-resistant, non-marking, grey

136.52 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla757061
EAN4047526101138
Promjer točka125 mm
Širina točka40 mm
Ukupna visina150 mm
Nosivost pri 4 km/h120 kg
Statička nosivost300 kg
Veličina ploče100 x 85 mm
Razmak rupa65.0 x 55.0 mm
Offset38 mm
Ne ostavlja tragoveda

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • passivation may be altered slightly in high temperatures, corrosion protection will remain unaffected
  • double ball bearing in the swivel head
  • strong central kingpin
  • smooth rolling characteristic and low wear, increased service life
  • swivel head play is set specifically for high-temperature applications
  • highly heat-resistant grease

Točak

  • tread: highly heat-resistant silicone rubber, hardness 75 Shore A, colour grey
  • wheel centre: highly heat-resistant thermoplastic, impact resistant, colour dark grey

Dodatne karakteristike

  • very high chemical resistance to many aggressive substances
  • operating temperature: -25 °C to +240 °C
  • oven temperature temporarily up to +300 °C, wheel temperature must not exceed +240 °C
  • suitable for autoclaves
