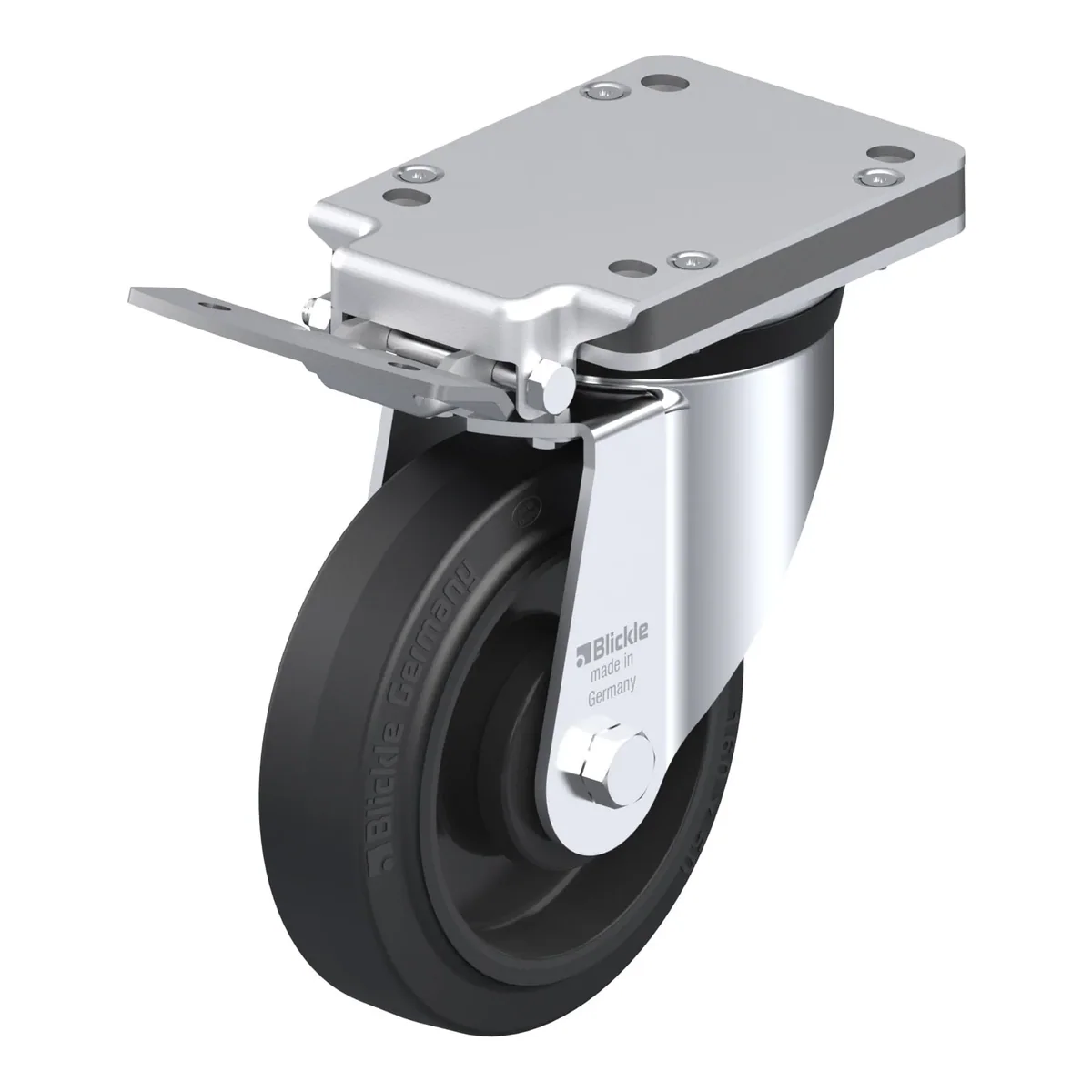

LK-POEV 160KA-IS – okretni točkić Blickle

Šifra 623199

LK-POEV 160KA-IS

Okretni točkić, Blickle, Made in Germany

Ukratko: LK-POEV 160KA-IS je okretni točkić Blickle promjera 160 mm, širine 50 mm, nosivosti 400 kg pri 4 km/h (statički 1000 kg). Ukupna visina je 219 mm. Cijena je 245.40 KM s PDV-om.

Pressed steel swivel castor, Heavy duty design, with brake system 'ideal-stop', heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with nylon wheel centre, with synthetic thread guard, small

245.40 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla623199
EAN4047526623197
Promjer točka160 mm
Širina točka50 mm
Ukupna visina219 mm
Nosivost pri 4 km/h400 kg
Statička nosivost1000 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset60 mm

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 125x50 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour black
  • wheel centre: high-quality nylon 6, impact resistant, colour black

Dodatne karakteristike

  • with synthetic thread guard, small
  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +35 °C
