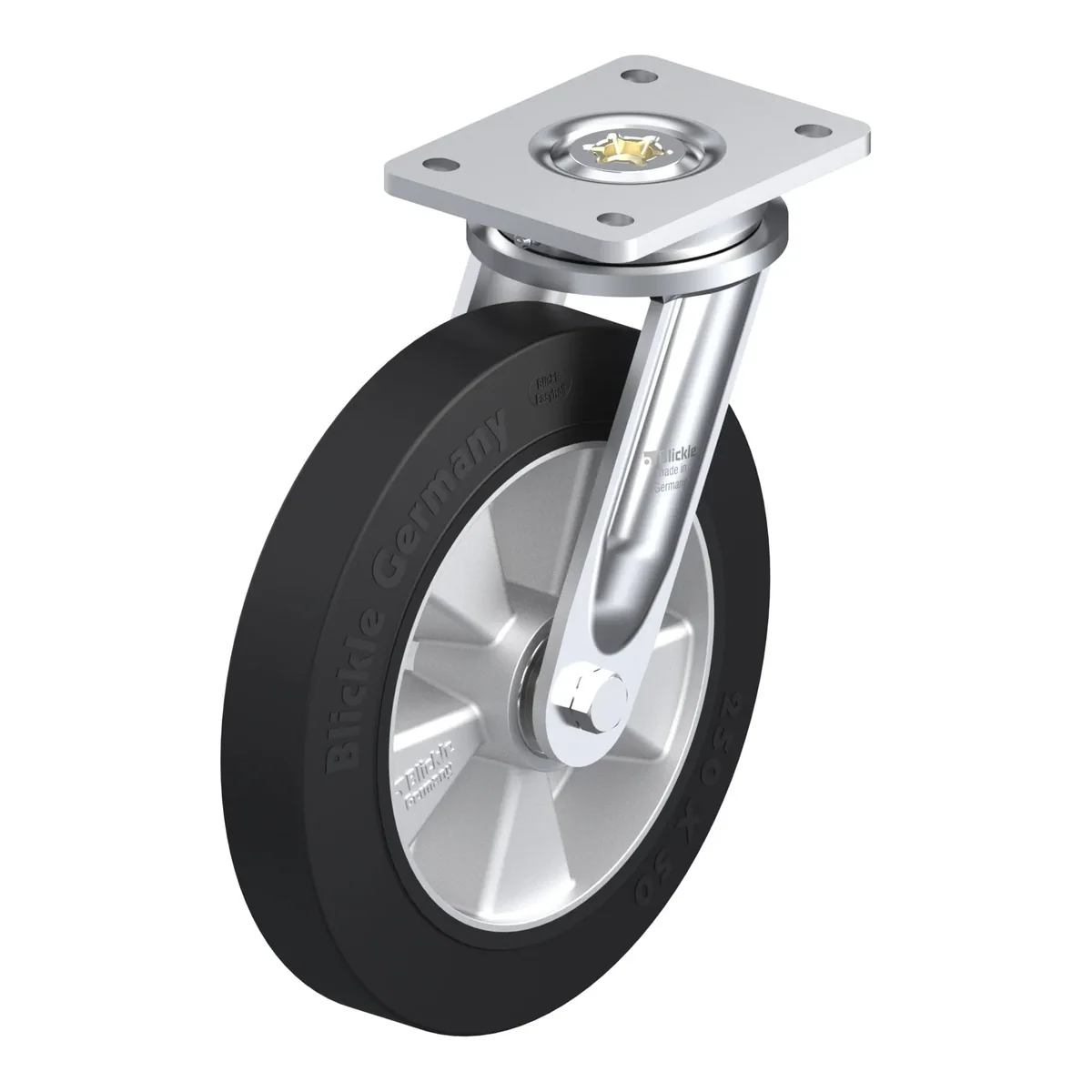

LO-ALEV 250K – okretni točkić Blickle

Šifra 562207

LO-ALEV 250K

Okretni točkić, Blickle, Made in Germany

Ukratko: LO-ALEV 250K je okretni točkić Blickle promjera 250 mm, širine 50 mm, nosivosti 650 kg pri 4 km/h (statički 1625 kg). Ukupna visina je 295 mm. Cijena je 329.69 KM s PDV-om.

Heavy duty welded steel swivel castor, heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with aluminium wheel centre

329.69 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla562207
EAN4047526562205
Promjer točka250 mm
Širina točka50 mm
Ukupna visina295 mm
Nosivost pri 4 km/h650 kg
Statička nosivost1625 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset70 mm

Nosač

  • solid welded steel construction, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • four specially-shaped, hardened bearing seatsfor additional strength
  • bolted and secured welded central kingpin, extremely strong
  • swivel head seal with labyrinth design
  • grease nipple

Točak

  • tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour black
  • wheel centre: die-cast aluminium

Dodatne karakteristike

  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
