Šifra 290502
L-V 205R

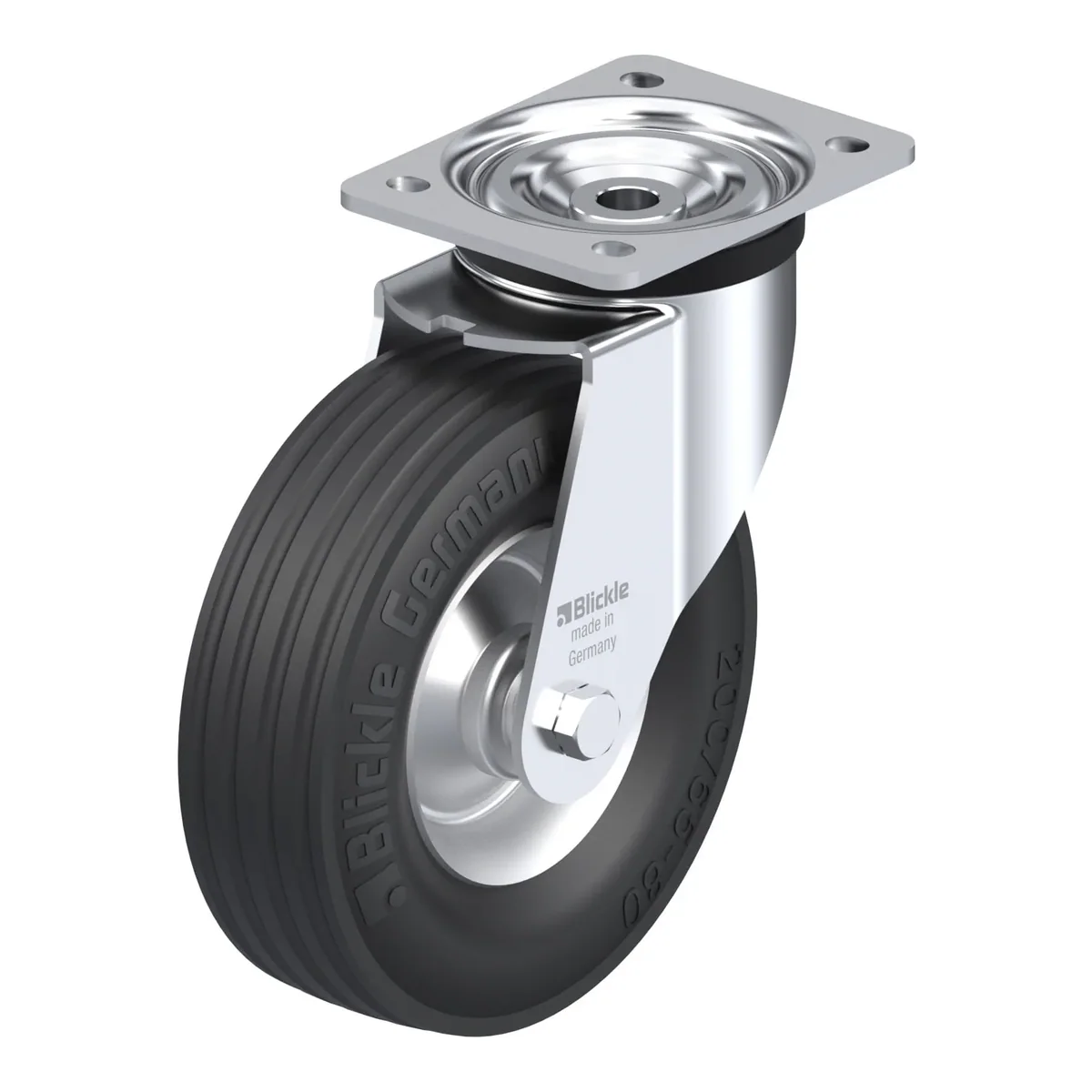

Okretni točkić, Blickle, Made in Germany
Ukratko: L-V 205R je okretni točkić Blickle promjera 200 mm, širine 65 mm, nosivosti 225 kg pri 4 km/h (statički 562.5 kg). Ukupna visina je 240 mm. Cijena je 124.17 KM s PDV-om.
Pressed steel swivel castor, medium duty design, with top plate fitting, wheel, with standard solid rubber tyre, with pressed steel rim, reinforced design
124.17 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 290502 |
|---|---|
| EAN | 4047526290504 |
| Promjer točka | 200 mm |
| Širina točka | 65 mm |
| Ukupna visina | 240 mm |
| Nosivost pri 4 km/h | 225 kg |
| Statička nosivost | 562.5 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 70 mm |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin (from wheel Ø 150 mm)
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tyre: standard solid rubber, hardness 80 Shore A, colour black
- rim: pressed steel, strong rim structure with tubular steel hub, bolted or pressed, zinc-plated, blue-passivated, Cr6-free
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
