MHC Tradetočkići.ba

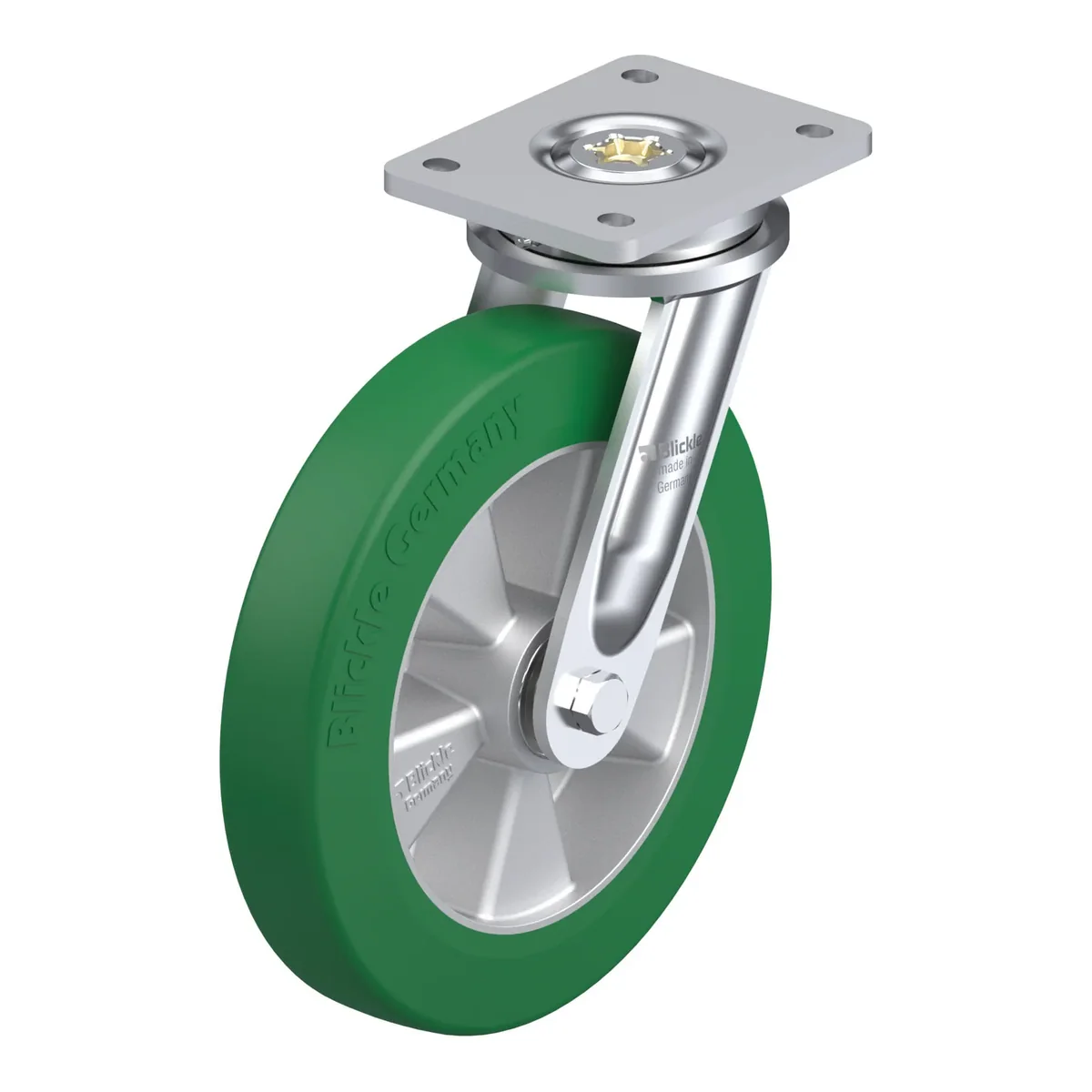

LO-ALST 250K – okretni točkić Blickle

Šifra 579680

LO-ALST 250K

Okretni točkić, Blickle, Made in Germany

Ukratko: LO-ALST 250K je okretni točkić Blickle promjera 250 mm, širine 50 mm, nosivosti 850 kg pri 4 km/h (statički 2125 kg). Ukupna visina je 295 mm. Cijena je 397.10 KM s PDV-om.

Heavy duty welded steel swivel castor, heavy duty wheel, with Blickle Softhane® polyurethane tread, with aluminium wheel centre

397.10 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla579680
EAN4047526579685
Promjer točka250 mm
Širina točka50 mm
Ukupna visina295 mm
Nosivost pri 4 km/h850 kg
Statička nosivost2125 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset70 mm
Ne ostavlja tragoveda

Nosač

  • solid welded steel construction, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • four specially-shaped, hardened bearing seatsfor additional strength
  • bolted and secured welded central kingpin, extremely strong
  • swivel head seal with labyrinth design
  • grease nipple

Točak

  • tread: high-quality polyurethane elastomer Blickle Softhane®, hardness 75 Shore A, colour green, non-marking, non-staining
  • wheel centre: die-cast aluminium, colour silver grey

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
