Šifra 579474
L-ALST 250K-3

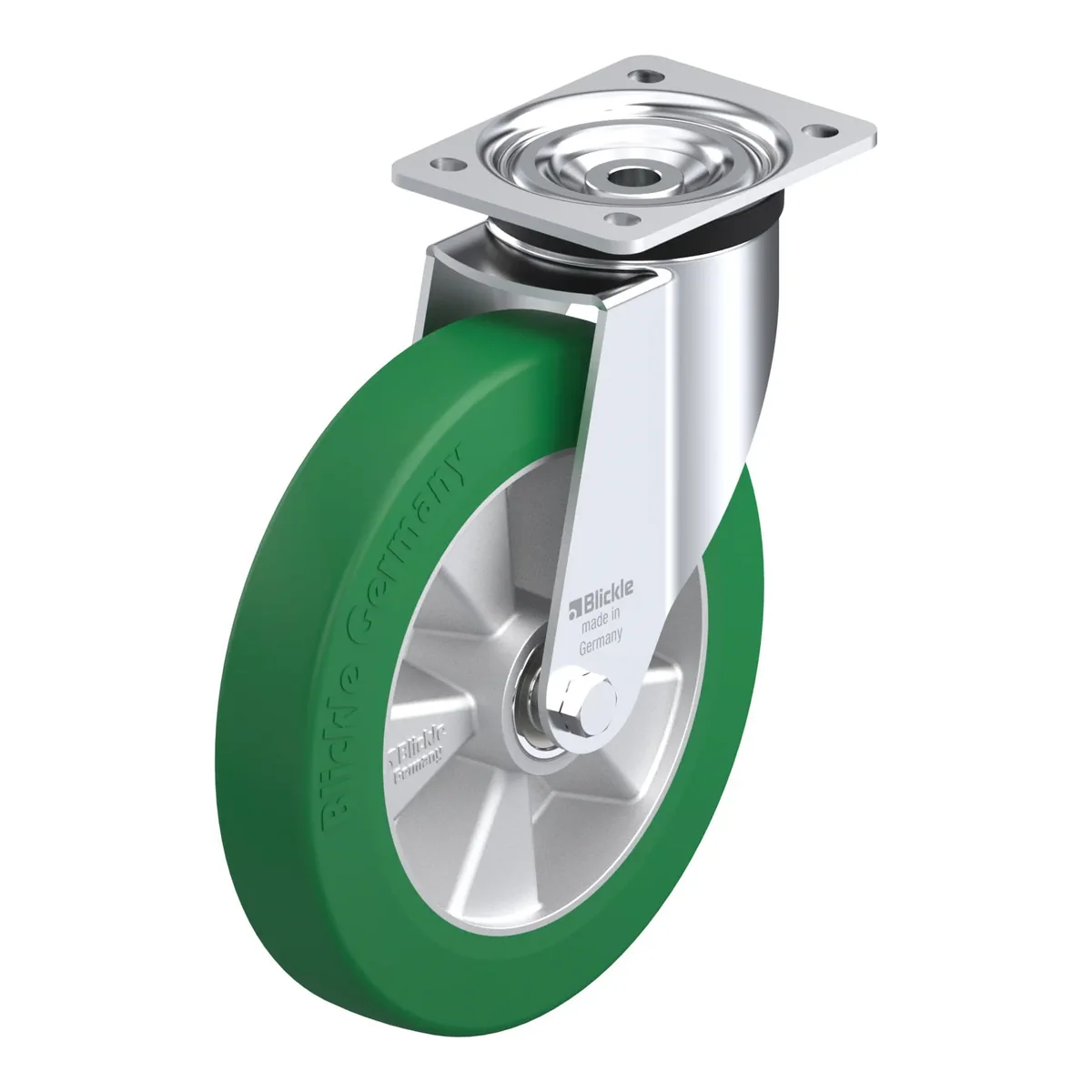

Okretni točkić, Blickle, Made in Germany
Ukratko: L-ALST 250K-3 je okretni točkić Blickle promjera 250 mm, širine 50 mm, nosivosti 500 kg pri 4 km/h (statički 1250 kg). Ukupna visina je 295 mm. Cijena je 289.66 KM s PDV-om.
Pressed steel swivel castor, medium duty design, with top plate fitting, heavy duty wheel, with Blickle Softhane® polyurethane tread, with aluminium wheel centre
289.66 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 579474 |
|---|---|
| EAN | 4047526579470 |
| Promjer točka | 250 mm |
| Širina točka | 50 mm |
| Ukupna visina | 295 mm |
| Nosivost pri 4 km/h | 500 kg |
| Statička nosivost | 1250 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 77 mm |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin (from wheel Ø 150 mm)
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tread: high-quality polyurethane elastomer Blickle Softhane®, hardness 75 Shore A, colour green, non-marking, non-staining
- wheel centre: die-cast aluminium, colour silver grey
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
