Šifra 41533

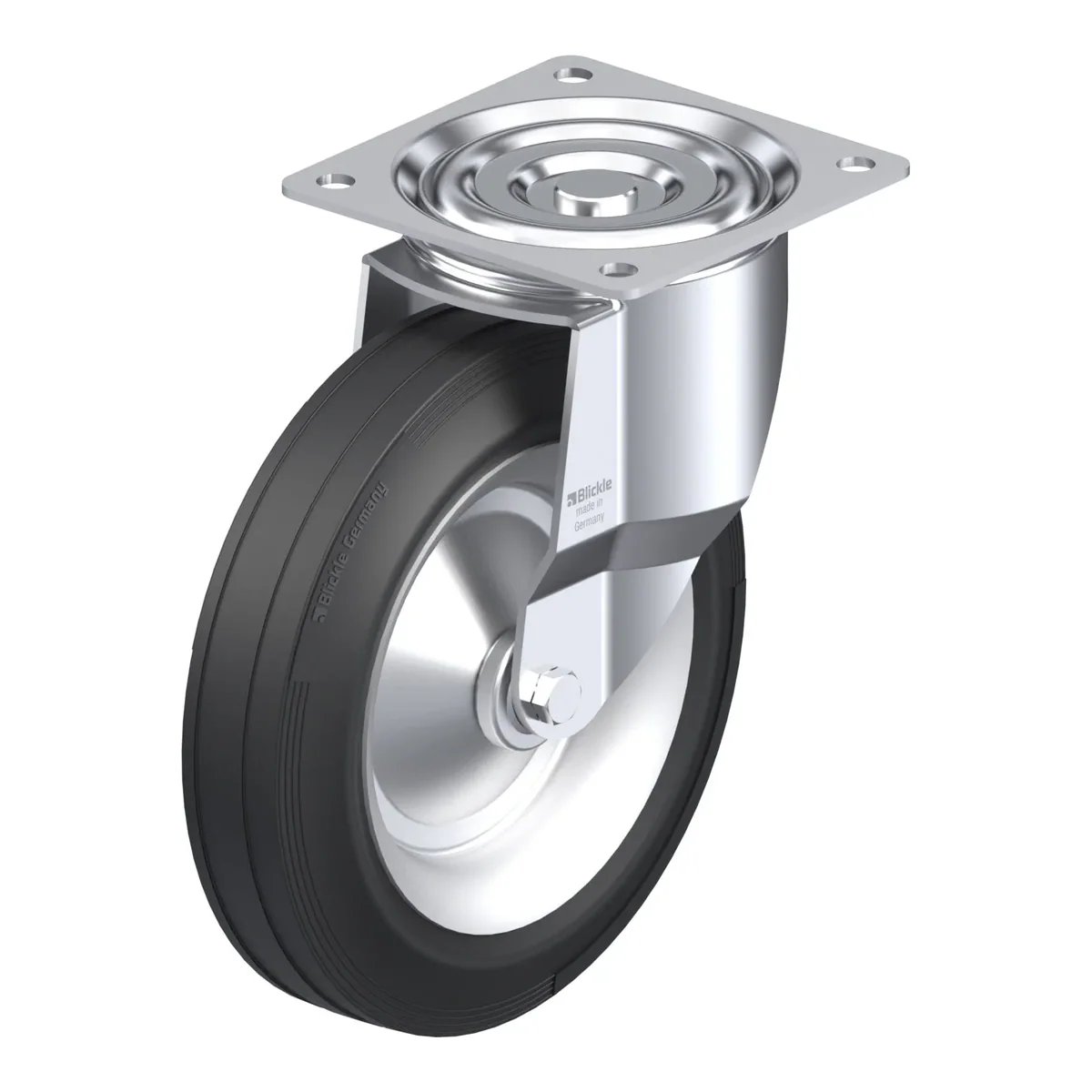

L-V 282R
Okretni točkić, Blickle, Made in Germany
Ukratko: L-V 282R je okretni točkić Blickle promjera 280 mm, širine 70 mm, nosivosti 385 kg pri 4 km/h (statički 962.5 kg). Ukupna visina je 318 mm. Cijena je 254.24 KM s PDV-om.
Pressed steel swivel castor, medium duty design, with top plate fitting, wheel, with standard solid rubber tyre, with pressed steel rim, reinforced design
254.24 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 41533 |
|---|---|
| EAN | 4047526041533 |
| Promjer točka | 280 mm |
| Širina točka | 70 mm |
| Ukupna visina | 318 mm |
| Nosivost pri 4 km/h | 385 kg |
| Statička nosivost | 962.5 kg |
| Veličina ploče | 175 x 175 mm |
| Razmak rupa | 140.0 x 145.0 mm |
| Offset | 78 mm |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin (from wheel Ø 150 mm)
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tyre: standard solid rubber, hardness 80 Shore A, colour black
- rim: pressed steel, strong rim structure with tubular steel hub, bolted or pressed, zinc-plated, blue-passivated, Cr6-free
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
