Šifra 1115
L-VLE 255K

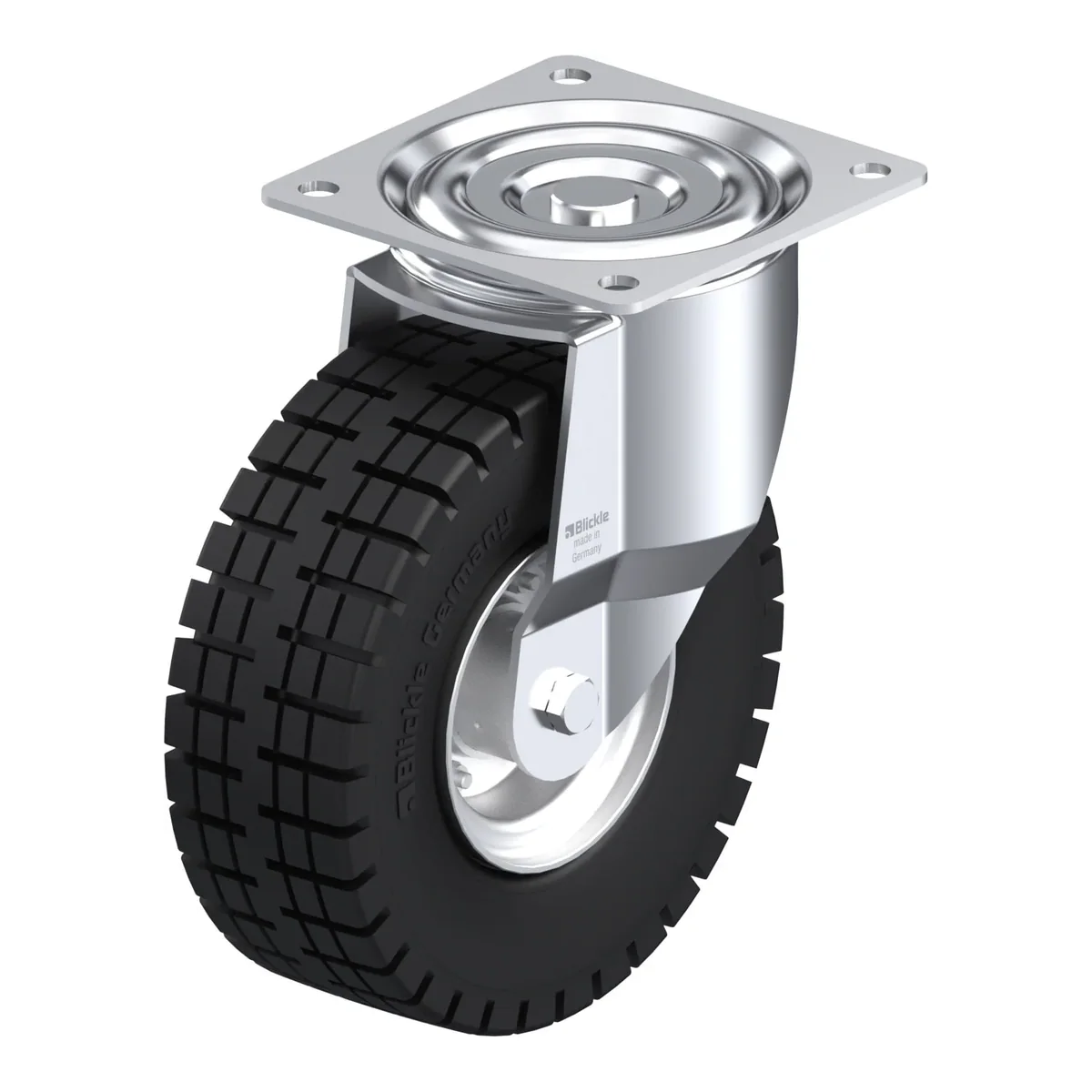

Okretni točkić, Blickle, Made in Germany
Ukratko: L-VLE 255K je okretni točkić Blickle promjera 250 mm, širine 85 mm, nosivosti 450 kg pri 4 km/h (statički 1125 kg). Ukupna visina je 295 mm. Cijena je 477.55 KM s PDV-om.
Pressed steel swivel castor, medium duty design, with top plate fitting, heavy duty wheel, with elastic solid rubber tyre
477.55 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 1115 |
|---|---|
| EAN | 4047526001117 |
| Promjer točka | 250 mm |
| Širina točka | 85 mm |
| Ukupna visina | 295 mm |
| Nosivost pri 4 km/h | 450 kg |
| Statička nosivost | 1125 kg |
| Veličina ploče | 175 x 175 mm |
| Razmak rupa | 140.0 x 145.0 mm |
| Offset | 70 mm |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin (from wheel Ø 150 mm)
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tyre: super-elastic solid rubber, hardness 70 Shore A, colour black
- 2-component tyre, highly-elastic, abrasion-resistant tread
- rim: heavy pressed steel, zinc-plated, blue-passivated, Cr6-free
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
- puncture-proof, maintenance-free
