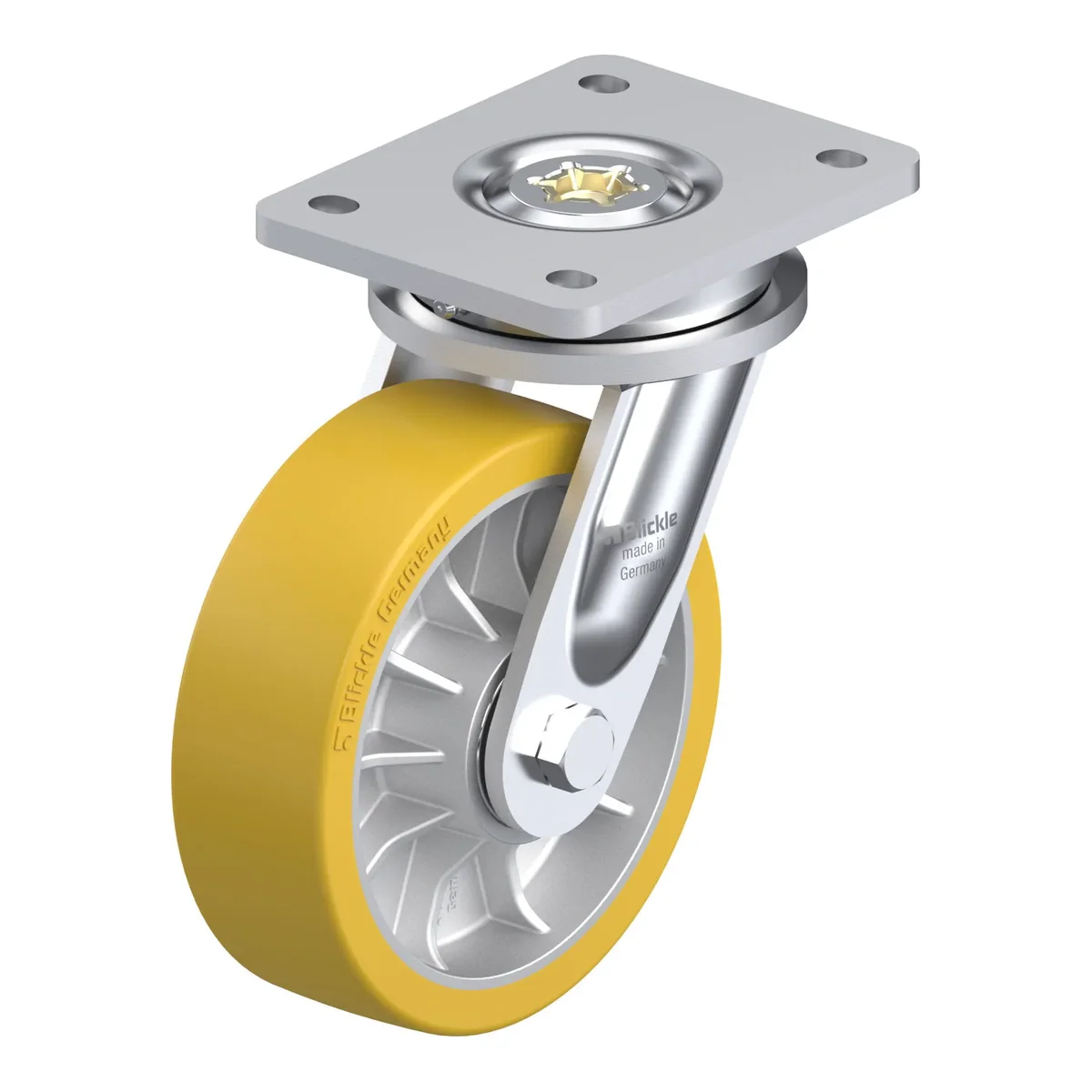

LO-ALTH 162K – okretni točkić Blickle

Šifra 936764

LO-ALTH 162K

Okretni točkić, Blickle, Made in Germany

Ukratko: LO-ALTH 162K je okretni točkić Blickle promjera 160 mm, širine 50 mm, nosivosti 950 kg pri 4 km/h (statički 2375 kg). Ukupna visina je 205 mm. Cijena je 287.93 KM s PDV-om.

Heavy duty welded steel swivel castor, heavy duty wheel, with Blickle Extrathane® polyurethane tread, with aluminium wheel centre

287.93 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla936764
EAN4047526366230
Promjer točka160 mm
Širina točka50 mm
Ukupna visina205 mm
Nosivost pri 4 km/h950 kg
Statička nosivost2375 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset55 mm
Ne ostavlja tragoveda

Nosač

  • solid welded steel construction, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • four specially-shaped, hardened bearing seatsfor additional strength
  • bolted and secured welded central kingpin, extremely strong
  • swivel head seal with labyrinth design
  • grease nipple

Točak

  • tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour yellow, non-marking, non-staining
  • wheel centre: die-cast aluminium, colour silver grey

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
