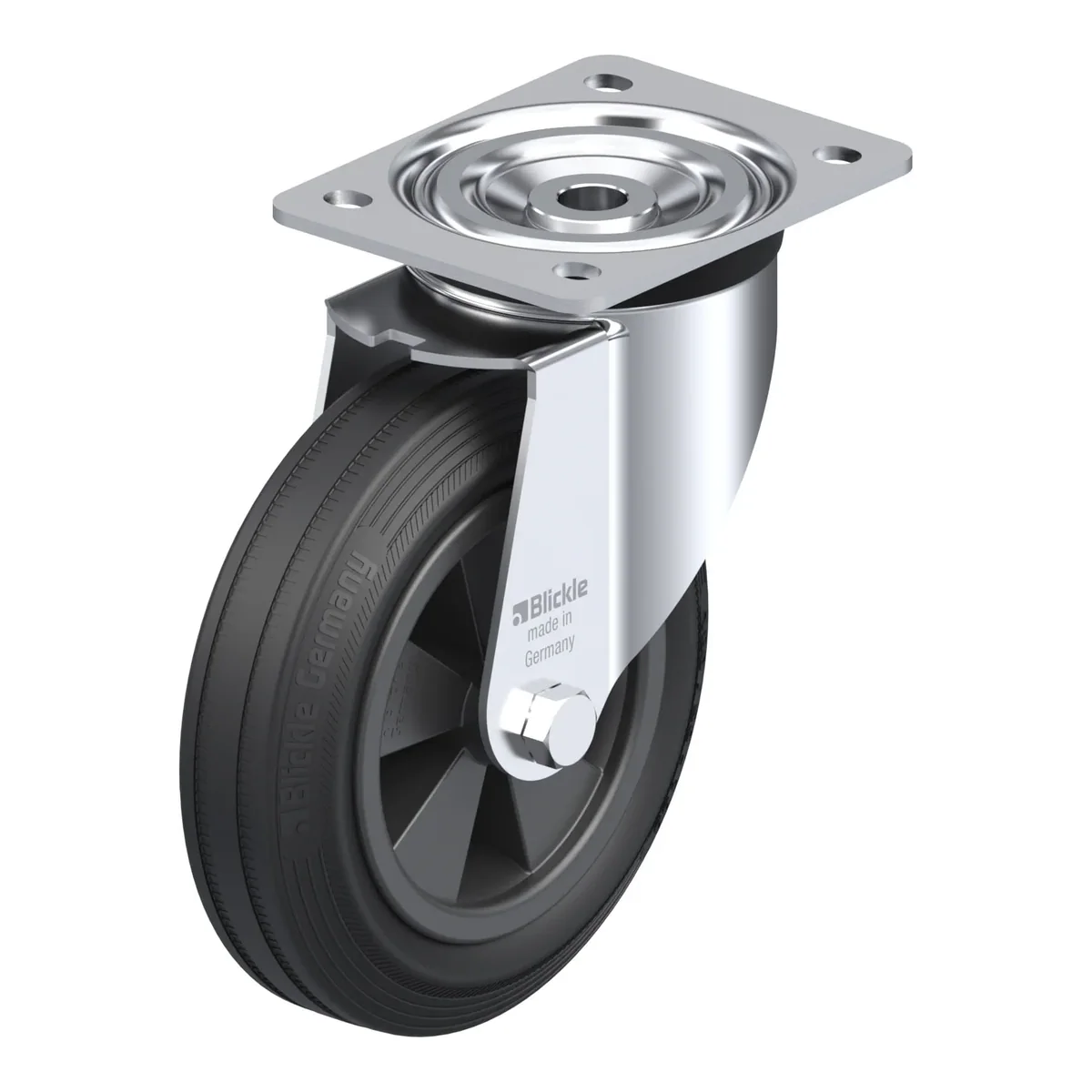

L-VPP 180G – okretni točkić Blickle

Šifra 29827

L-VPP 180G

Okretni točkić, Blickle, Made in Germany

Ukratko: L-VPP 180G je okretni točkić Blickle promjera 180 mm, širine 50 mm, nosivosti 170 kg pri 4 km/h (statički 425 kg). Ukupna visina je 215 mm. Cijena je 74.20 KM s PDV-om.

Pressed steel swivel castor, medium duty design, with top plate fitting, wheel, with standard solid rubber tyre, with synthetic rim

74.20 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla29827
EAN4047526029821
Promjer točka180 mm
Širina točka50 mm
Ukupna visina215 mm
Nosivost pri 4 km/h170 kg
Statička nosivost425 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset60 mm

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 150 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: standard solid rubber, hardness 80 Shore A, colour black
  • rim: high-quality polypropylene, impact resistant, colour black

Dodatne karakteristike

  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
