Šifra 949365

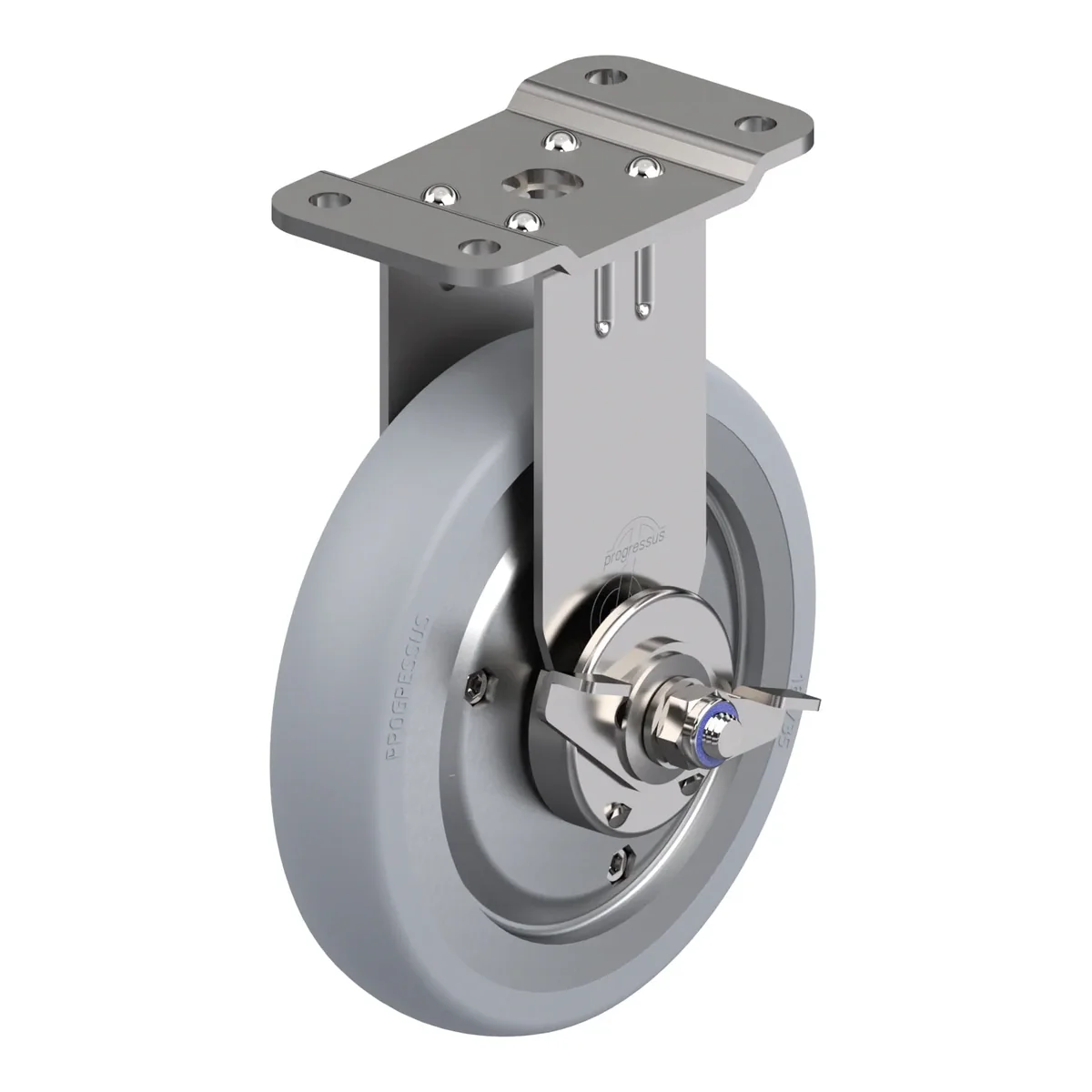

BPX-PGV 186XK-PG3-SRA-SG-FA
Fiksni točkić, Blickle, Made in Germany
Ukratko: BPX-PGV 186XK-PG3-SRA-SG-FA je fiksni točkić Blickle promjera 186 mm, širine 38 mm, nosivosti 200 kg pri 4 km/h (statički 500 kg). Ukupna visina je 236 mm. Cijena je 666.46 KM s PDV-om.
Stainless steel fixed castor, with top plate fitting, with side wheel brake, wheel, with elastic solid rubber tyres, with aluminium wheel centre, non-marking, grey, with steel thread guard
666.46 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 949365 |
|---|---|
| EAN | 4047526375317 |
| Promjer točka | 186 mm |
| Širina točka | 38 mm |
| Ukupna visina | 236 mm |
| Nosivost pri 4 km/h | 200 kg |
| Statička nosivost | 500 kg |
| Veličina ploče | 140 x 80 mm |
| Razmak rupa | 105.0 x 50.0 mm |
| Ne ostavlja tragove | da |
| Otporan na koroziju | da |
Točak
- tread: high-quality elastic solid rubber in smooth rolling quality, hardness 80 Shore A, colour grey, non-marking
- wheel centre: die-cast aluminium, colour silver grey
Dodatne karakteristike
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +134 °C, reduced load capacity over +35 °C
- suitable for autoclaves
