Šifra 949362

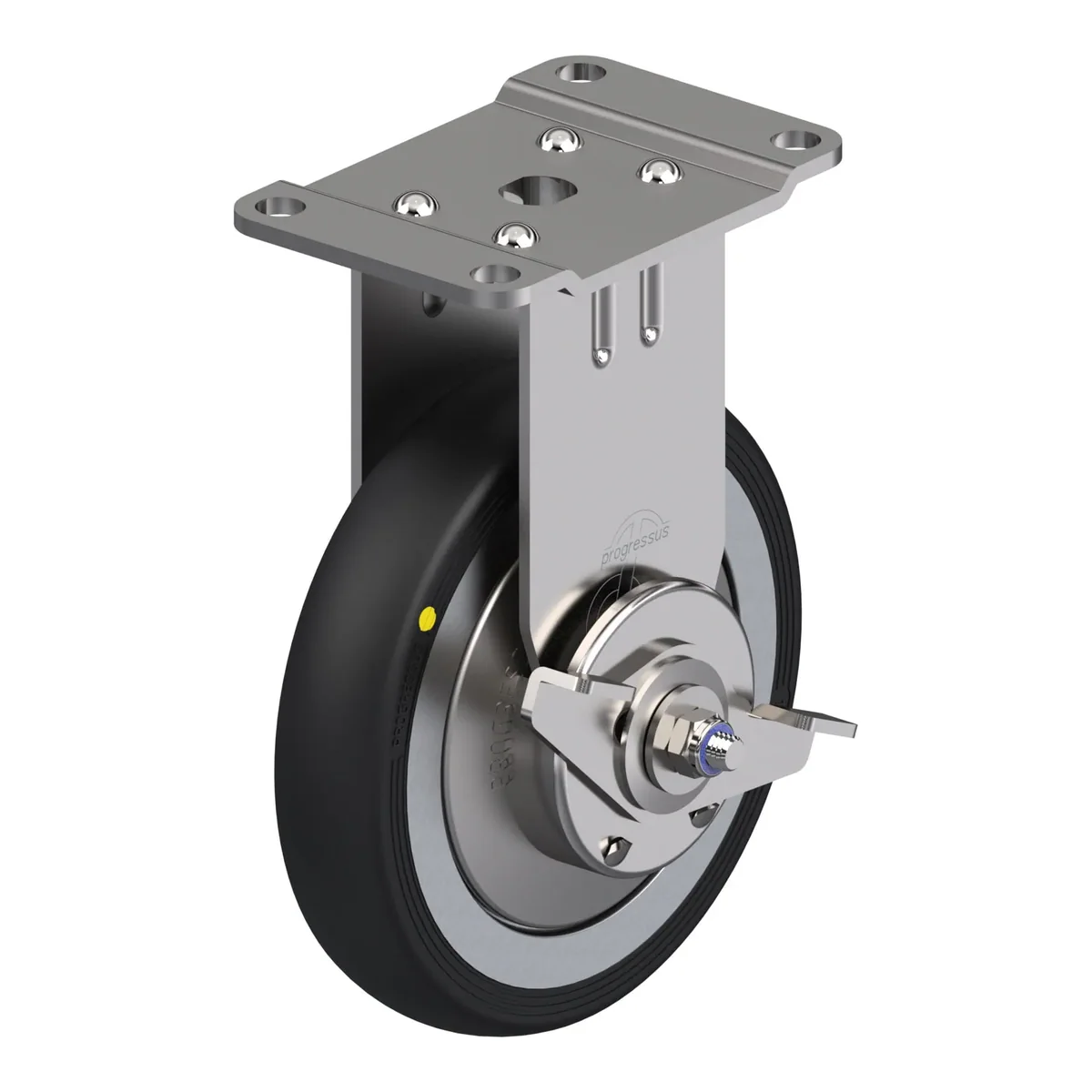

BPX-PGV 150XK-PG2-SRA-EL-FA
Fiksni točkić, Blickle, Made in Germany
Ukratko: BPX-PGV 150XK-PG2-SRA-EL-FA je fiksni točkić Blickle promjera 150 mm, širine 30 mm, nosivosti 200 kg pri 4 km/h (statički 500 kg). Ukupna visina je 195 mm. Cijena je 554.76 KM s PDV-om.
Stainless steel fixed castor, with top plate fitting, with side wheel brake, wheel, with elastic solid rubber tyres, with aluminium wheel centre, with steel thread guard, electrically conductive
554.76 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 949362 |
|---|---|
| EAN | 4047526375287 |
| Promjer točka | 150 mm |
| Širina točka | 30 mm |
| Ukupna visina | 195 mm |
| Nosivost pri 4 km/h | 200 kg |
| Statička nosivost | 500 kg |
| Veličina ploče | 120 x 80 mm |
| Razmak rupa | 85.0 x 50.0 mm |
| Otporan na koroziju | da |
| ESD zaštita | da |
Točak
- tread: high-quality elastic solid rubber in smooth rolling quality, hardness 80 Shore A, colour black
- wheel centre: die-cast aluminium, colour silver grey
Dodatne karakteristike
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +134 °C, reduced load capacity over +35 °C
- suitable for autoclaves
- electrical conductivity (ohmic resistance) ≤ 104Ω
