Šifra 949347
BPX-PGV 105XR-PG1-SRA-EL-FA

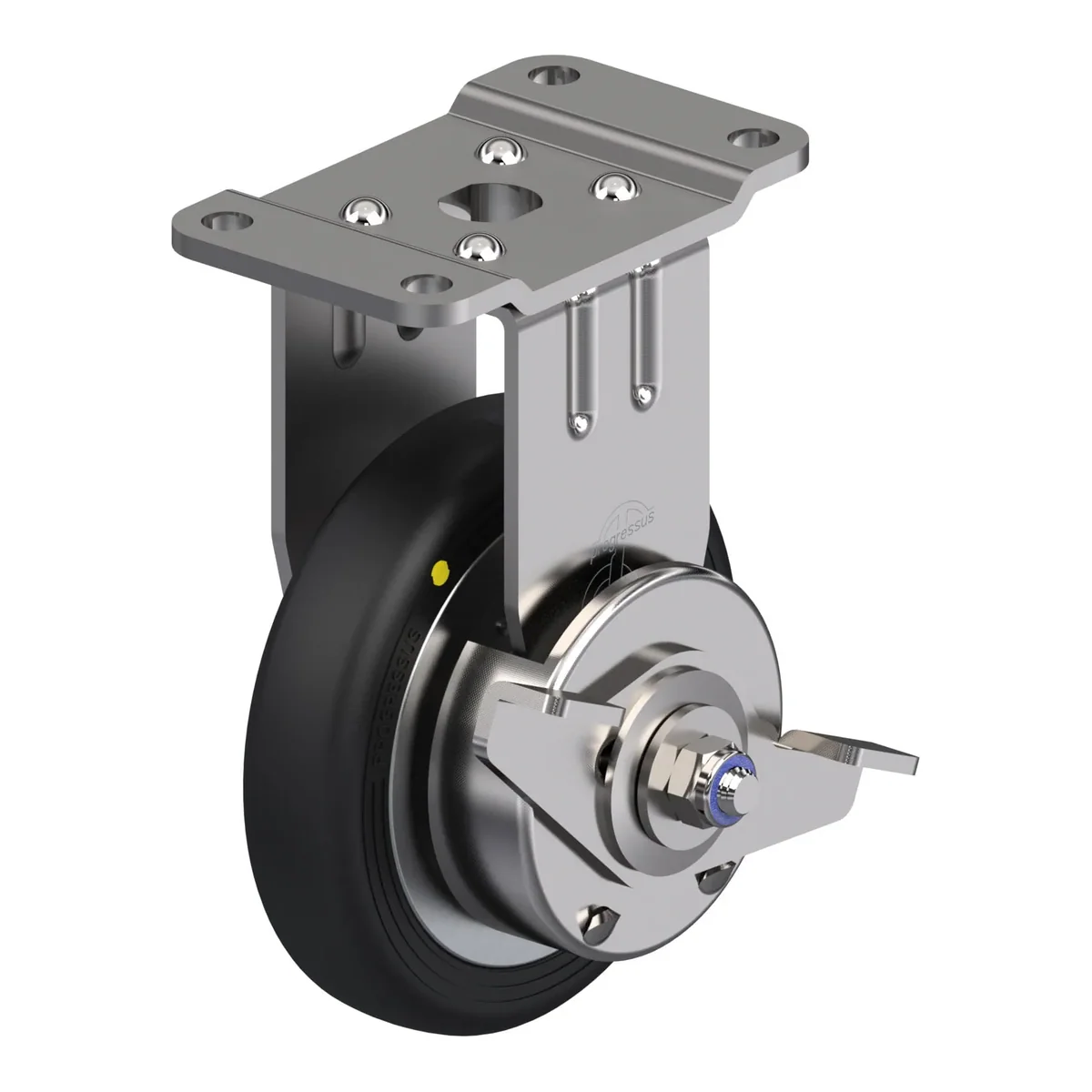

Fiksni točkić, Blickle, Made in Germany
Ukratko: BPX-PGV 105XR-PG1-SRA-EL-FA je fiksni točkić Blickle promjera 105 mm, širine 24 mm, nosivosti 120 kg pri 4 km/h (statički 300 kg). Ukupna visina je 146 mm. Cijena je 512.87 KM s PDV-om.
Stainless steel fixed castor, with top plate fitting, with side wheel brake, wheel, with elastic solid rubber tyres, with aluminium wheel centre, with steel thread guard, electrically conductive
512.87 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 949347 |
|---|---|
| EAN | 4047526375218 |
| Promjer točka | 105 mm |
| Širina točka | 24 mm |
| Ukupna visina | 146 mm |
| Nosivost pri 4 km/h | 120 kg |
| Statička nosivost | 300 kg |
| Veličina ploče | 100 x 60 mm |
| Razmak rupa | 65.0 x 30.0 mm |
| Otporan na koroziju | da |
| ESD zaštita | da |
Točak
- tread: high-quality elastic solid rubber in smooth rolling quality, hardness 80 Shore A, colour black
- wheel centre: die-cast aluminium, colour silver grey
Dodatne karakteristike
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +134 °C, reduced load capacity over +35 °C
- suitable for autoclaves
- electrical conductivity (ohmic resistance) ≤ 104Ω
