Šifra 760741
BPXA-PATH 50KFD

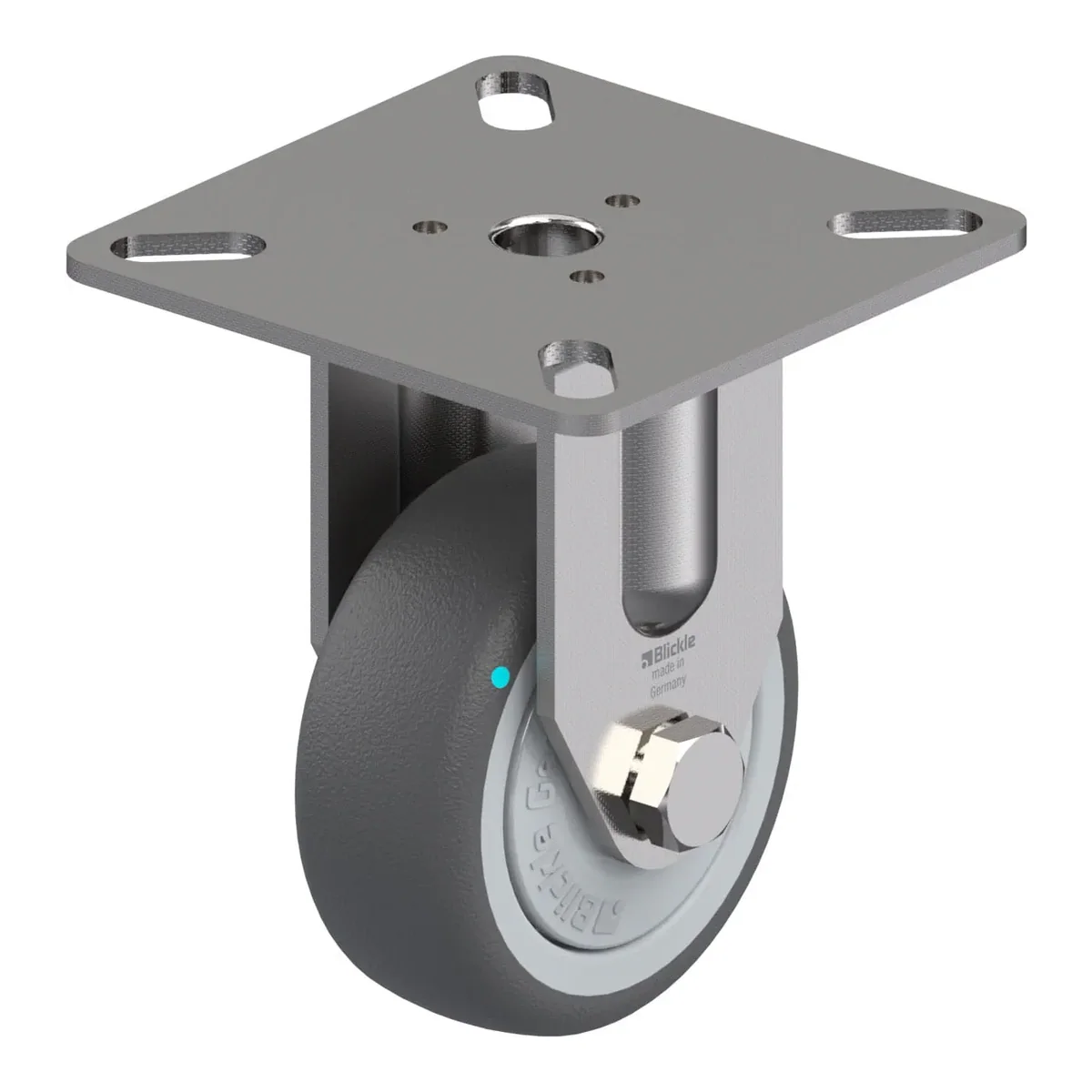

Fiksni točkić, Blickle, Made in Germany
Ukratko: BPXA-PATH 50KFD je fiksni točkić Blickle promjera 50 mm, širine 19 mm, nosivosti 75 kg pri 4 km/h (statički 187.5 kg). Ukupna visina je 71 mm. Cijena je 41.79 KM s PDV-om.
Stainless steel light duty fixed castor, with top plate fitting, wheel, with thermoplastic polyurethane tread, with nylon wheel centre, with synthetic thread guard, large, with additionals ball bea ring seals
41.79 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 760741 |
|---|---|
| EAN | 4047526119331 |
| Promjer točka | 50 mm |
| Širina točka | 19 mm |
| Ukupna visina | 71 mm |
| Nosivost pri 4 km/h | 75 kg |
| Statička nosivost | 187.5 kg |
| Veličina ploče | 60 x 60 mm |
| Razmak rupa | 25.0 x 30.0 mm |
| Ne ostavlja tragove | da |
Nosač
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- all parts including axle material are corrosion-resistant
Točak
- tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
- wheel centre: high-quality nylon 6, impact resistant, colour silver grey
Dodatne karakteristike
- large thread guard, with additional, ball bearing seals
- very high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
