MHC Tradetočkići.ba

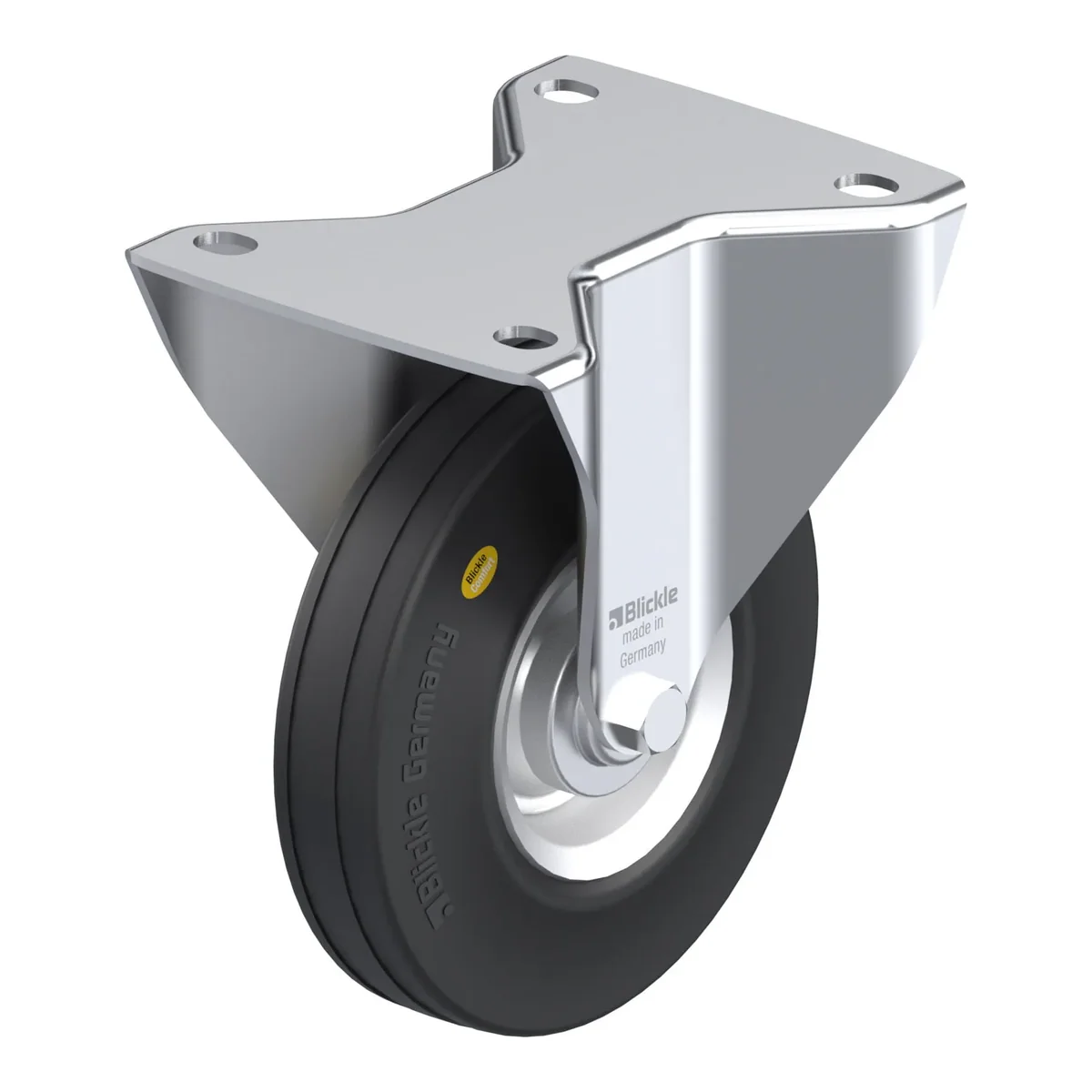

B-RD 140R – fiksni točkić Blickle

Šifra 281600

B-RD 140R

Fiksni točkić, Blickle, Made in Germany

Ukratko: B-RD 140R je fiksni točkić Blickle promjera 140 mm, širine 37.5 mm, nosivosti 175 kg pri 4 km/h (statički 437.5 kg). Ukupna visina je 170 mm. Cijena je 69.85 KM s PDV-om.

Pressed steel fixed castor, medium duty design, with top plate fitting, wheel, with 'Blickle Comfort' two-component solid rubber tyres, with pressed steel rim

69.85 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla281600
EAN4047526281601
Promjer točka140 mm
Širina točka37.5 mm
Ukupna visina170 mm
Nosivost pri 4 km/h175 kg
Statička nosivost437.5 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free

Točak

  • tyre: two-component solid rubber "Blickle Comfort", hardness 65 Shore A, colour black
  • rim: pressed steel, strong rim structure with tubular steel hub, bolted or pressed, zinc-plated, blue-passivated, Cr6-free

Dodatne karakteristike

  • chemical resistance to many aggressive substances, except oils
  • operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
