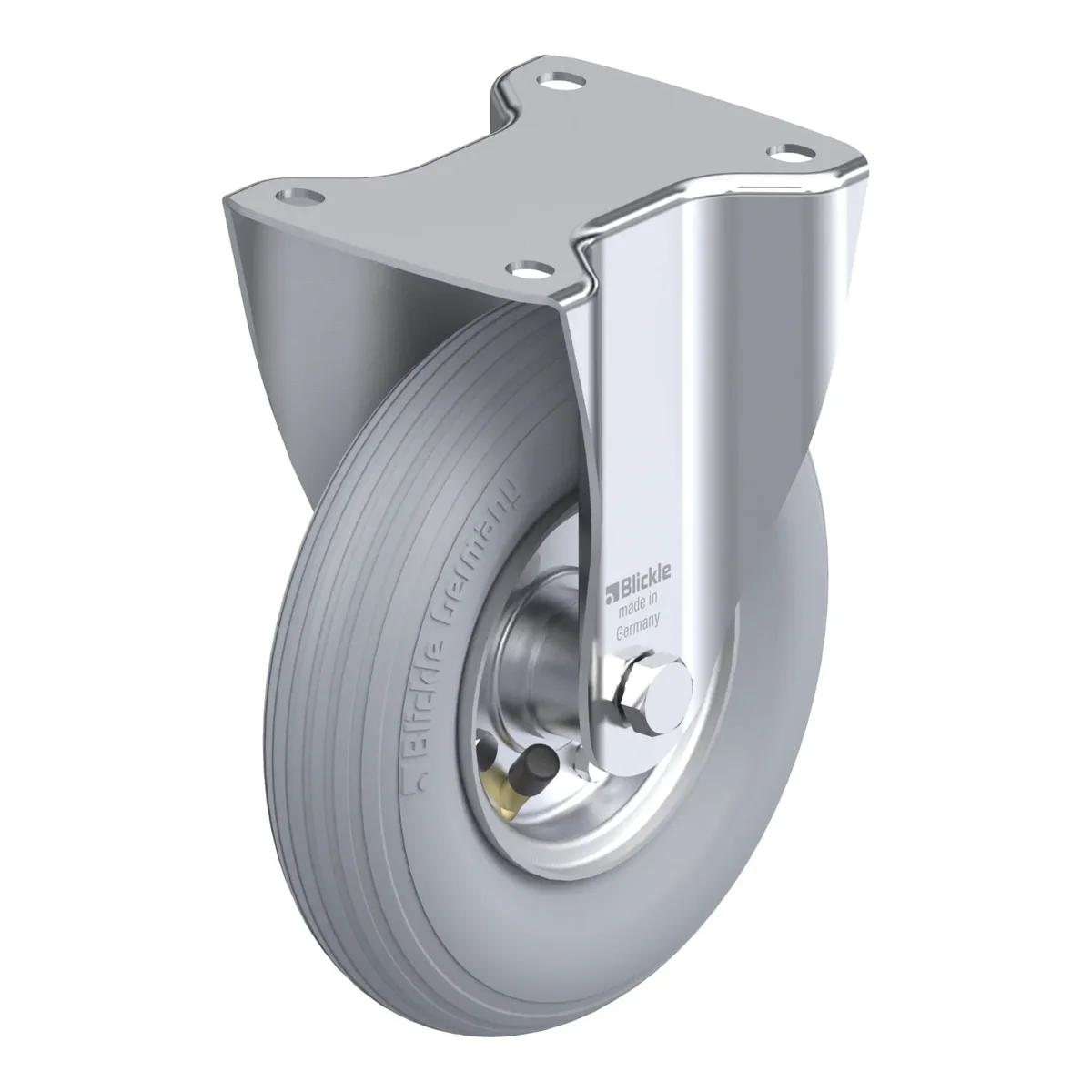

B-P 200R-SG – fiksni točkić Blickle

Šifra 73072

B-P 200R-SG

Fiksni točkić, Blickle, Made in Germany

Ukratko: B-P 200R-SG je fiksni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 75 kg pri 4 km/h (statički 75 kg). Ukupna visina je 235 mm. Radi na temperaturi od -25 °C do 50 °C. Cijena je 109.20 KM s PDV-om.

Pressed steel fixed castor, medium duty design, with top plate fitting, wheel, with pneumatic tyre, with pressed steel rim, non-marking, grey

109.20 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla73072
EAN4047526073077
Promjer točka200 mm
Širina točka50 mm
Ukupna visina235 mm
Nosivost pri 4 km/h75 kg
Statička nosivost75 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Tvrdoća gazišta60 Shore A
Radna temperatura-25 °C do 50 °C
Težina1.7 kg
Ne ostavlja tragoveda

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free

Točak

  • tyre: pneumatic tyre, hardness 60 Shore A, colour grey, non-marking, 2-ply rating
  • rim: pressed steel, with welded tubular steel hub, zinc-plated, blue-passivated, Cr6-free
  • swivel castors with brakes lose brake force if the tyre pressure is too low

Dodatne karakteristike

  • chemical resistance to many aggressive substances, except oils
  • operating temperature: -25 °C to +50 °C
  • the wheel and tyre dimensions provided here apply to new tyres that are not bearing a load. Their width and diameter may change when they are in use.
  • speeds up to 16 km/h possible for wheels with ball bearing and reduced load capacity
