Šifra 936132

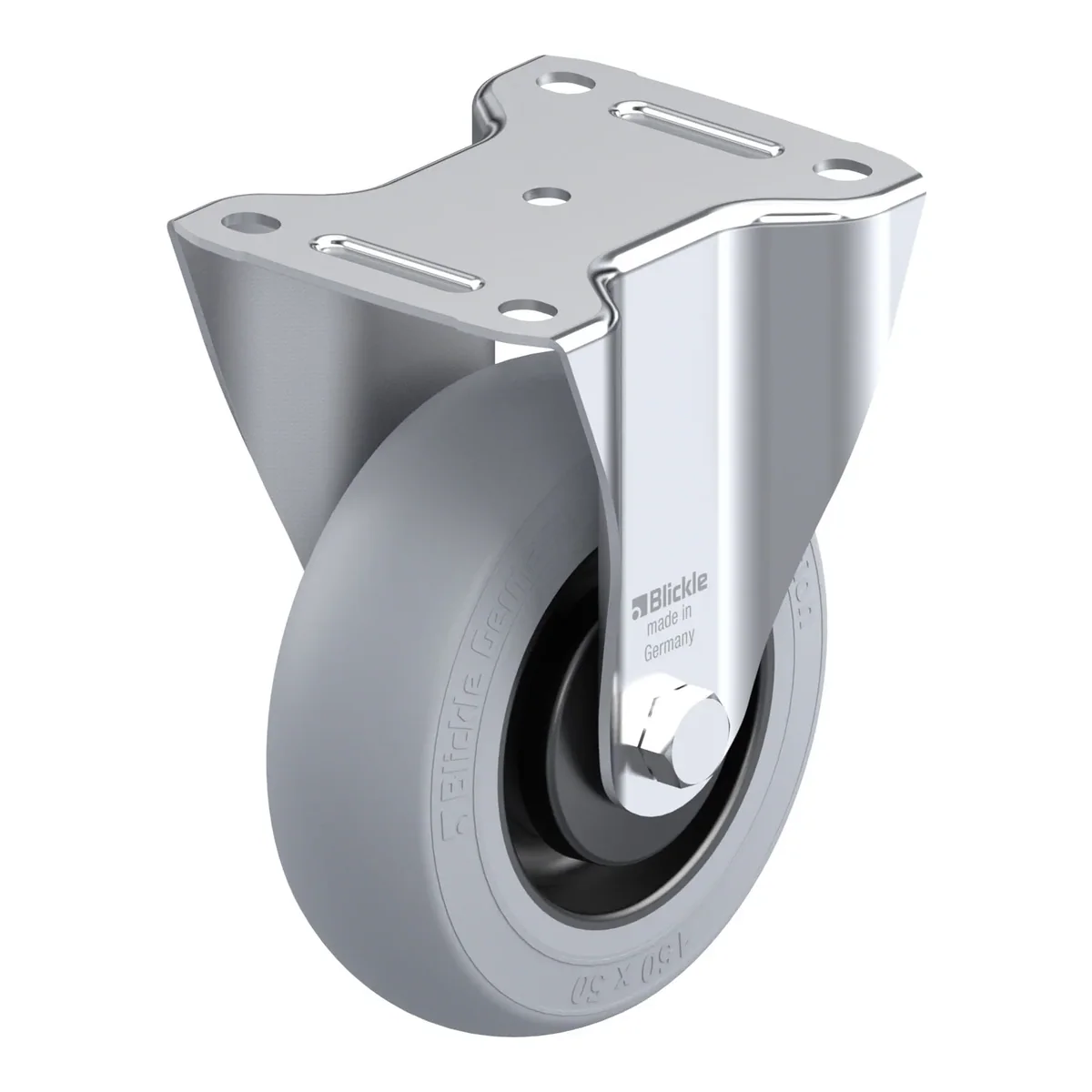

B-POES 150KA-SG
Fiksni točkić, Blickle, Made in Germany
Ukratko: B-POES 150KA-SG je fiksni točkić Blickle promjera 150 mm, širine 50 mm, nosivosti 280 kg pri 4 km/h (statički 700 kg). Ukupna visina je 190 mm. Radi na temperaturi od -20 °C do 80 °C. Cijena je 109.37 KM s PDV-om.
Pressed steel fixed castor, medium duty design, with top plate fitting, wheel, with 'Blickle SoftMotion' soft rubber tyre, with nylon wheel centre, non-marking, grey, with synthetic thread guard, small
109.37 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 936132 |
|---|---|
| EAN | 4047526385248 |
| Promjer točka | 150 mm |
| Širina točka | 50 mm |
| Ukupna visina | 190 mm |
| Nosivost pri 4 km/h | 280 kg |
| Statička nosivost | 700 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Tvrdoća gazišta | 55 Shore A |
| Radna temperatura | -20 °C do 80 °C |
| Težina | 1.6 kg |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Točak
- tyre: high-quality elastic solid rubber "Blickle SoftMotion", hardness 55 Shore A, colour grey, non-marking
- wheel centre: high-quality nylon 6, impact resistant, colour black
Dodatne karakteristike
- with synthetic thread guard, small
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +35 °C
