Šifra 946455

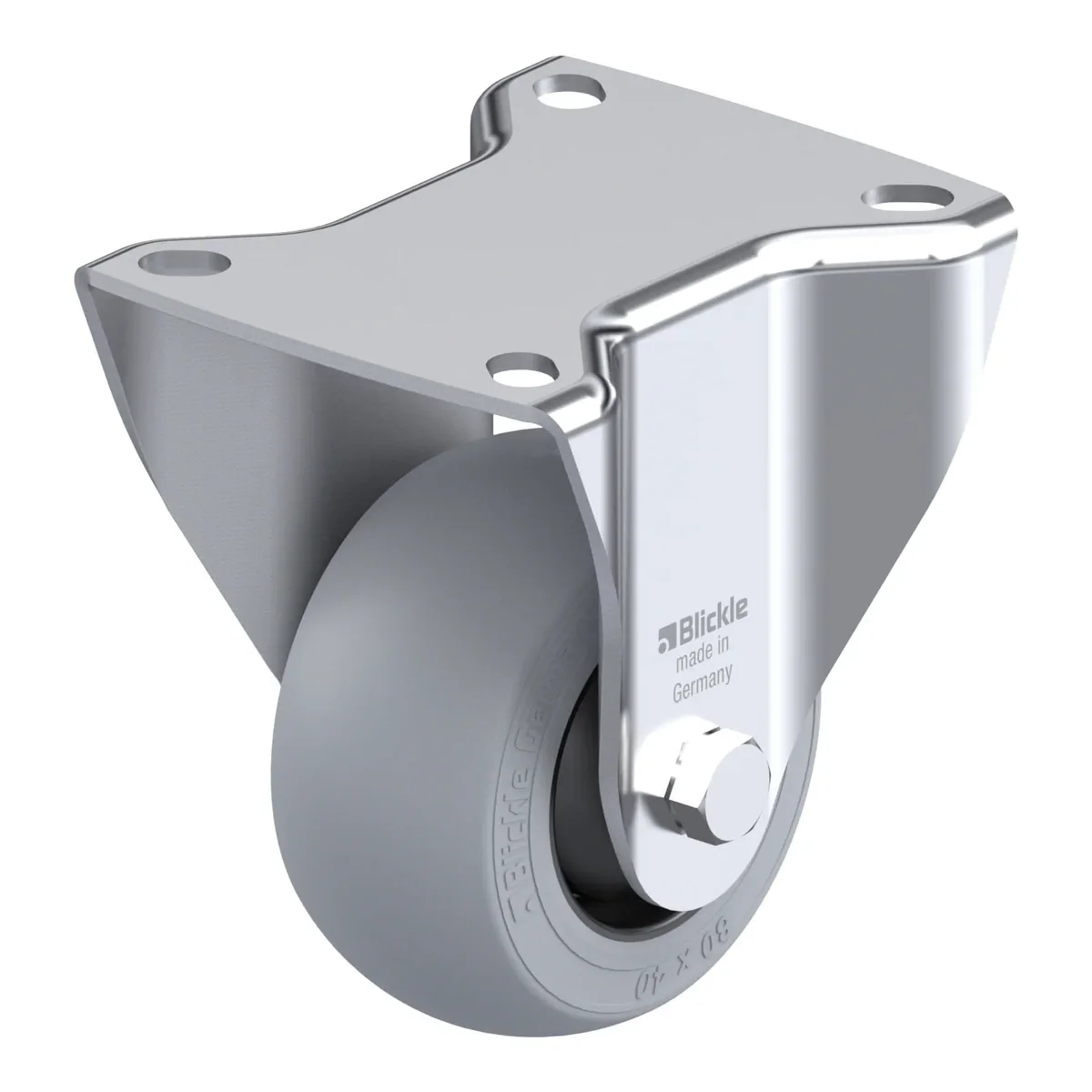

BK-POES 80KF-SG
Fiksni točkić, Blickle, Made in Germany
Ukratko: BK-POES 80KF-SG je fiksni točkić Blickle promjera 80 mm, širine 40 mm, nosivosti 110 kg pri 4 km/h (statički 275 kg). Ukupna visina je 110 mm. Radi na temperaturi od -20 °C do 80 °C. Cijena je 42.04 KM s PDV-om.
Pressed steel fixed castor, heavy duty design, with top plate fitting, wheel, with 'Blickle SoftMotion' soft rubber tyre, with nylon wheel centre, non-marking, grey, with synthetic thread guard, large
42.04 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 946455 |
|---|---|
| EAN | 4047526417666 |
| Promjer točka | 80 mm |
| Širina točka | 40 mm |
| Ukupna visina | 110 mm |
| Nosivost pri 4 km/h | 110 kg |
| Statička nosivost | 275 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
| Tvrdoća gazišta | 55 Shore A |
| Radna temperatura | -20 °C do 80 °C |
| Težina | 0.6 kg |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Točak
- tyre: high-quality elastic solid rubber "Blickle SoftMotion", hardness 55 Shore A, colour grey, non-marking
- wheel centre: high-quality nylon 6, impact resistant, colour black
Dodatne karakteristike
- with synthetic thread guard, large
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +35 °C
