Šifra 842766
BH-GST 200K-TML
Fiksni točkić, Blickle, Made in Germany
Ukratko: BH-GST 200K-TML je fiksni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 800 kg pri 4 km/h (statički 2000 kg). Ukupna visina je 245 mm. Radi na temperaturi od -20 °C do 70 °C. Cijena je 531.47 KM s PDV-om.

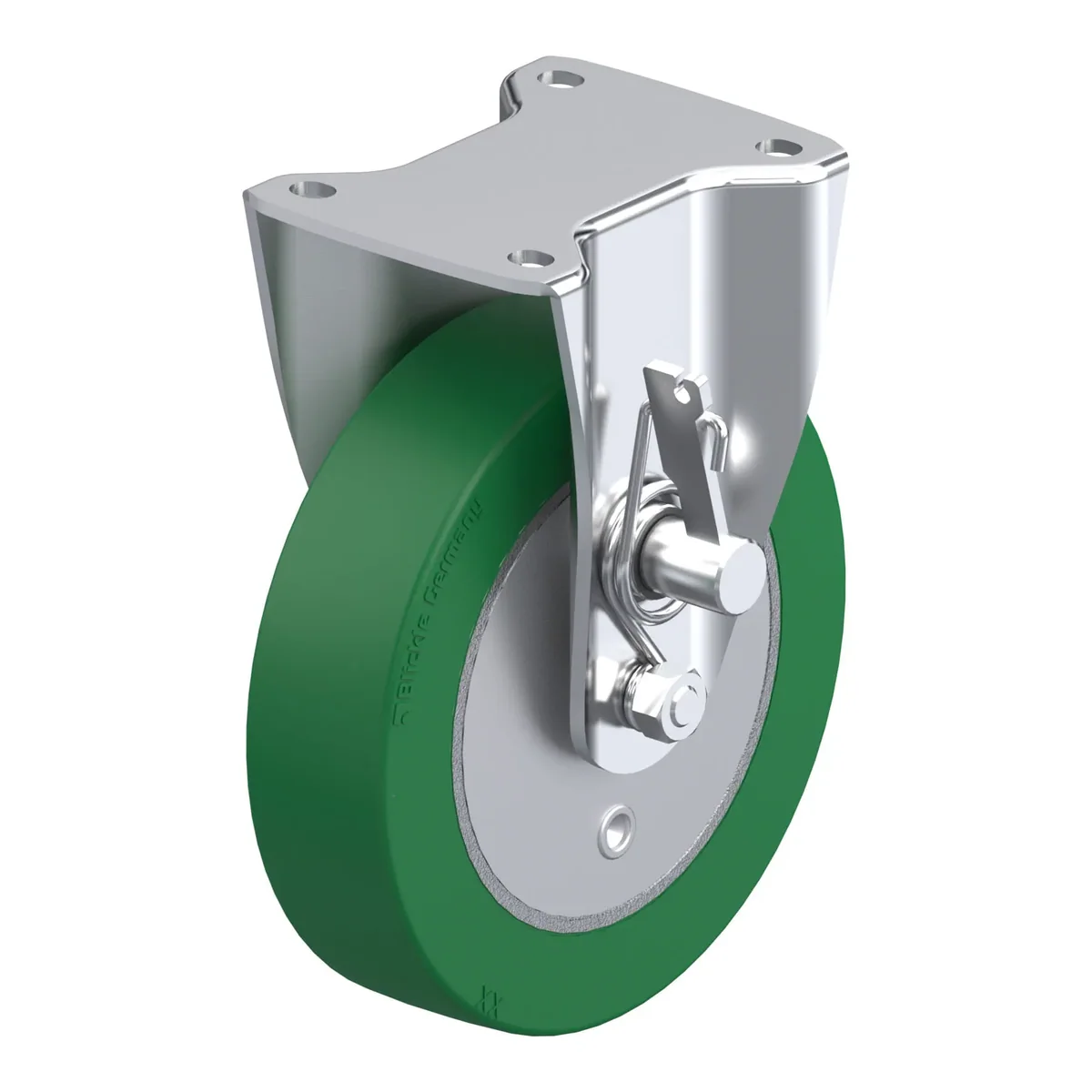

Pressed steel fixed castor, heavy duty design, with top plate fitting, with dead man’s brake, heavy duty wheel, with Blickle Softhane® polyurethane tread, with cast iron wheel centre
531.47 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 842766 |
|---|---|
| EAN | 4047526123307 |
| Promjer točka | 200 mm |
| Širina točka | 50 mm |
| Ukupna visina | 245 mm |
| Nosivost pri 4 km/h | 800 kg |
| Statička nosivost | 2000 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Tvrdoća gazišta | 75 Shore A |
| Radna temperatura | -20 °C do 70 °C |
| Težina | 5.9 kg |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- heavy fork and top plate
Točak
- tread: high-quality polyurethane elastomer Blickle Softhane®, hardness 75 Shore A, colour green, non-marking, non-staining
- wheel centre: rugged grey cast iron, lacquered, colour silver
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
