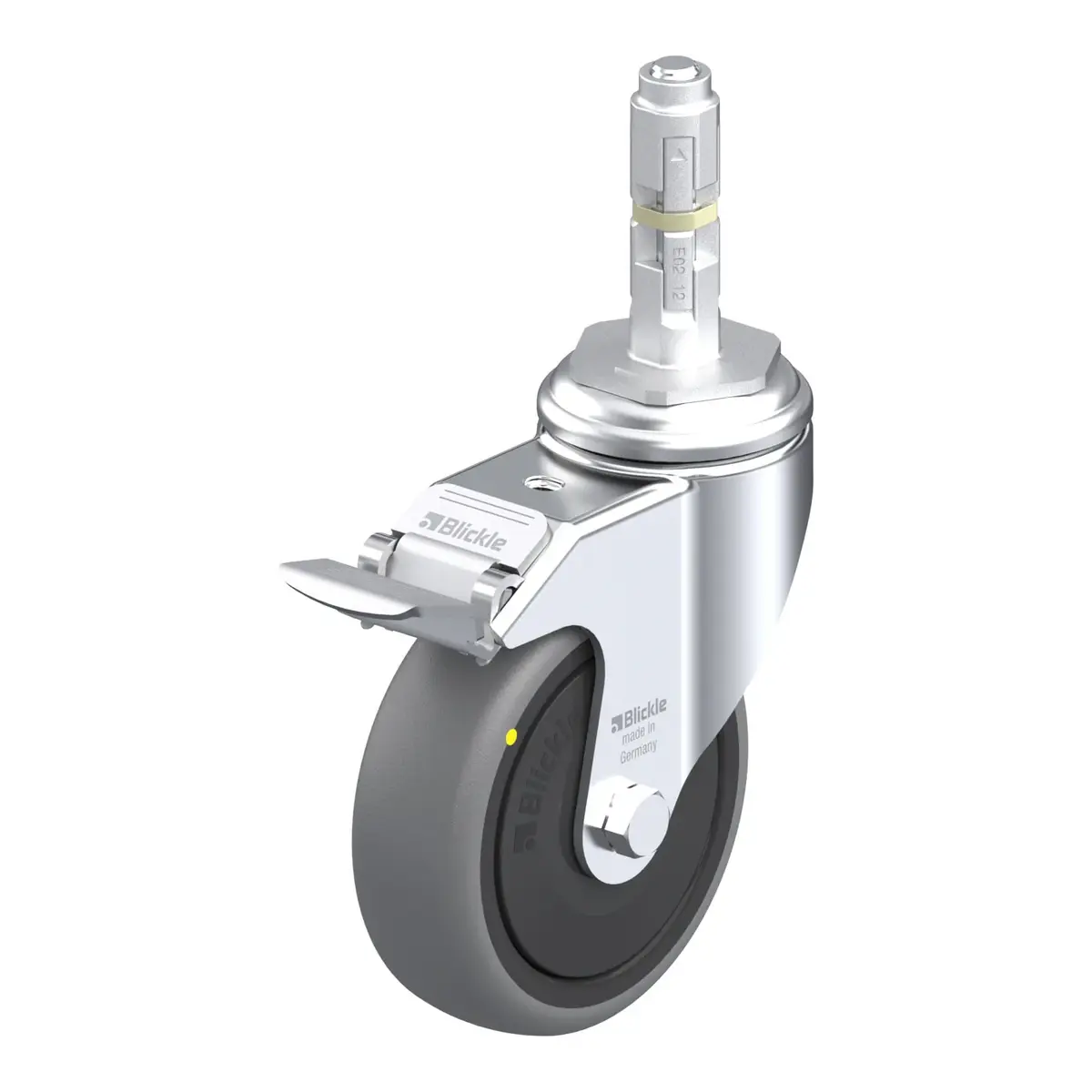

LKRA-TPA 101KF-11-FI-ELS-E12 – okretni točkić Blickle

Šifra 633115

LKRA-TPA 101KF-11-FI-ELS-E12

Okretni točkić, Blickle, Made in Germany

Ukratko: LKRA-TPA 101KF-11-FI-ELS-E12 je okretni točkić Blickle promjera 100 mm, širine 32 mm, nosivosti 70 kg pri 4 km/h (statički 175 kg). Ukupna visina je 135 mm. Cijena je 79.12 KM s PDV-om.

Light duty swivel castor, with bolt hole fitting, with metal expander, with brake system 'stop-fix', wheel, with thermoplastic rubber tread, with polypropylene wheel centre, with synthetic thread guard, large, electrically conductive , non-marking

79.12 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla633115
EAN4047526633110
Promjer točka100 mm
Širina točka32 mm
Ukupna visina135 mm
Nosivost pri 4 km/h70 kg
Statička nosivost175 kg
Offset40 mm
Ne ostavlja tragoveda
ESD zaštitada

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic rubber-elastomer (TPE), hardness 85 Shore A, colour grey, non-marking, oil containing
  • wheel centre: high-quality polypropylene, impact resistant, colour black

Dodatne karakteristike

  • with synthetic thread guard, large
  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
  • tread contains oil, may stain sensitive surfaces. alternatives: series VPA, PATH
  • electrical conductivity (ohmic resistance) ≤ 104Ω
