Šifra 938567

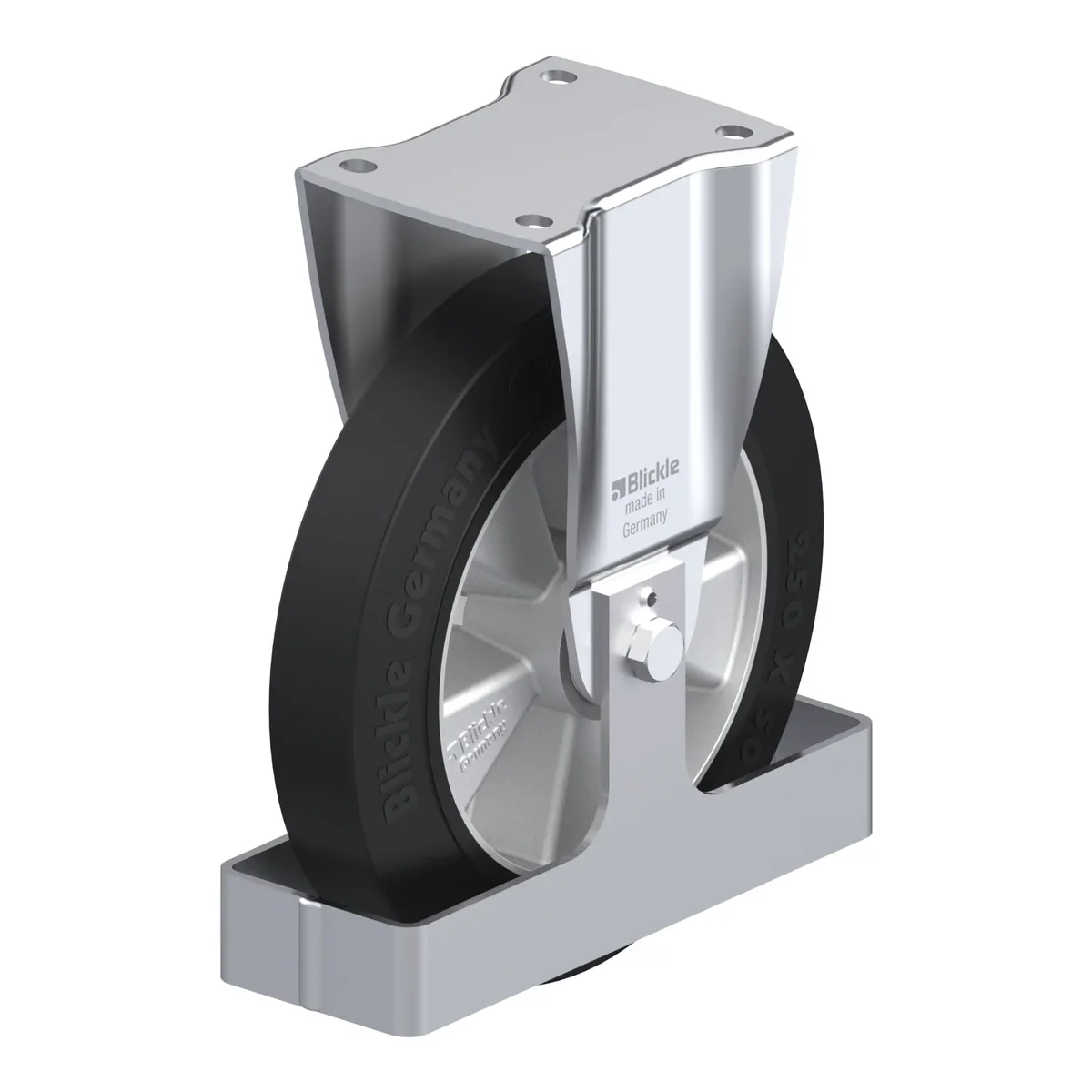

BH-ALEV 250K-FS
Fiksni točkić, Blickle, Made in Germany
Ukratko: BH-ALEV 250K-FS je fiksni točkić Blickle promjera 250 mm, širine 50 mm, nosivosti 650 kg pri 4 km/h (statički 1625 kg). Ukupna visina je 295 mm. Cijena je 340.29 KM s PDV-om.
Pressed steel fixed castor, heavy duty design, with top plate fitting, steel foot guard, heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with aluminium wheel centre
340.29 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 938567 |
|---|---|
| EAN | 4047526395209 |
| Promjer točka | 250 mm |
| Širina točka | 50 mm |
| Ukupna visina | 295 mm |
| Nosivost pri 4 km/h | 650 kg |
| Statička nosivost | 1625 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- heavy fork and top plate
Točak
- tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour black
- wheel centre: die-cast aluminium
Dodatne karakteristike
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
