Šifra 946567
BH-PO 100G-1-ELS-FA

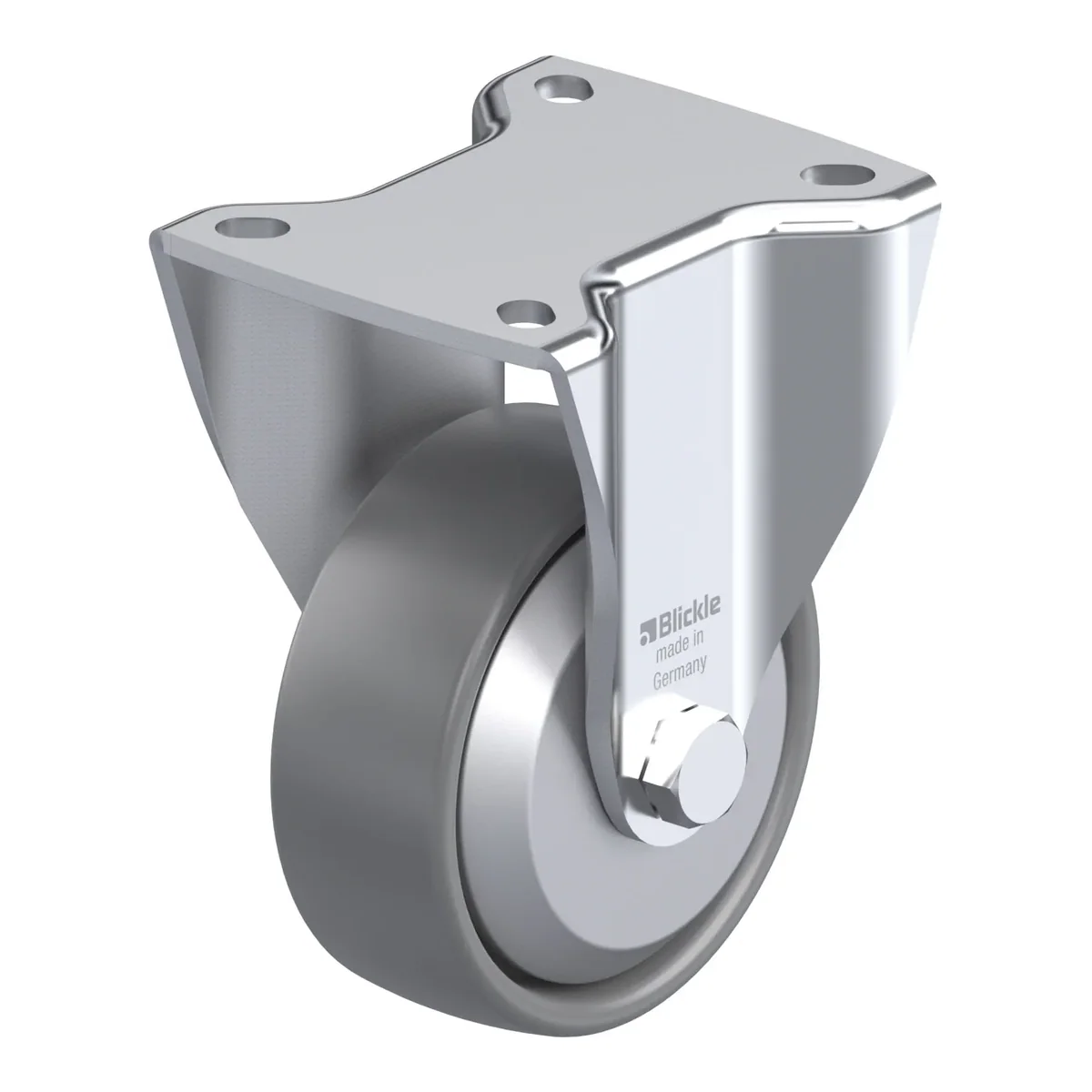

Fiksni točkić, Blickle, Made in Germany
Ukratko: BH-PO 100G-1-ELS-FA je fiksni točkić Blickle promjera 100 mm, širine 37 mm, nosivosti 280 kg pri 4 km/h (statički 700 kg). Ukupna visina je 140 mm. Cijena je 77.70 KM s PDV-om.
Pressed steel fixed castor, heavy duty design, with top plate fitting, nylon wheel, with steel thread guard, electrically conductive, non-marking
77.70 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 946567 |
|---|---|
| EAN | 4047526369408 |
| Promjer točka | 100 mm |
| Širina točka | 37 mm |
| Ukupna visina | 140 mm |
| Nosivost pri 4 km/h | 280 kg |
| Statička nosivost | 700 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Ne ostavlja tragove | da |
| ESD zaštita | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- heavy fork and top plate
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour grey, non-marking
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
- electrical conductivity (ohmic resistance) ≤ 104Ω
