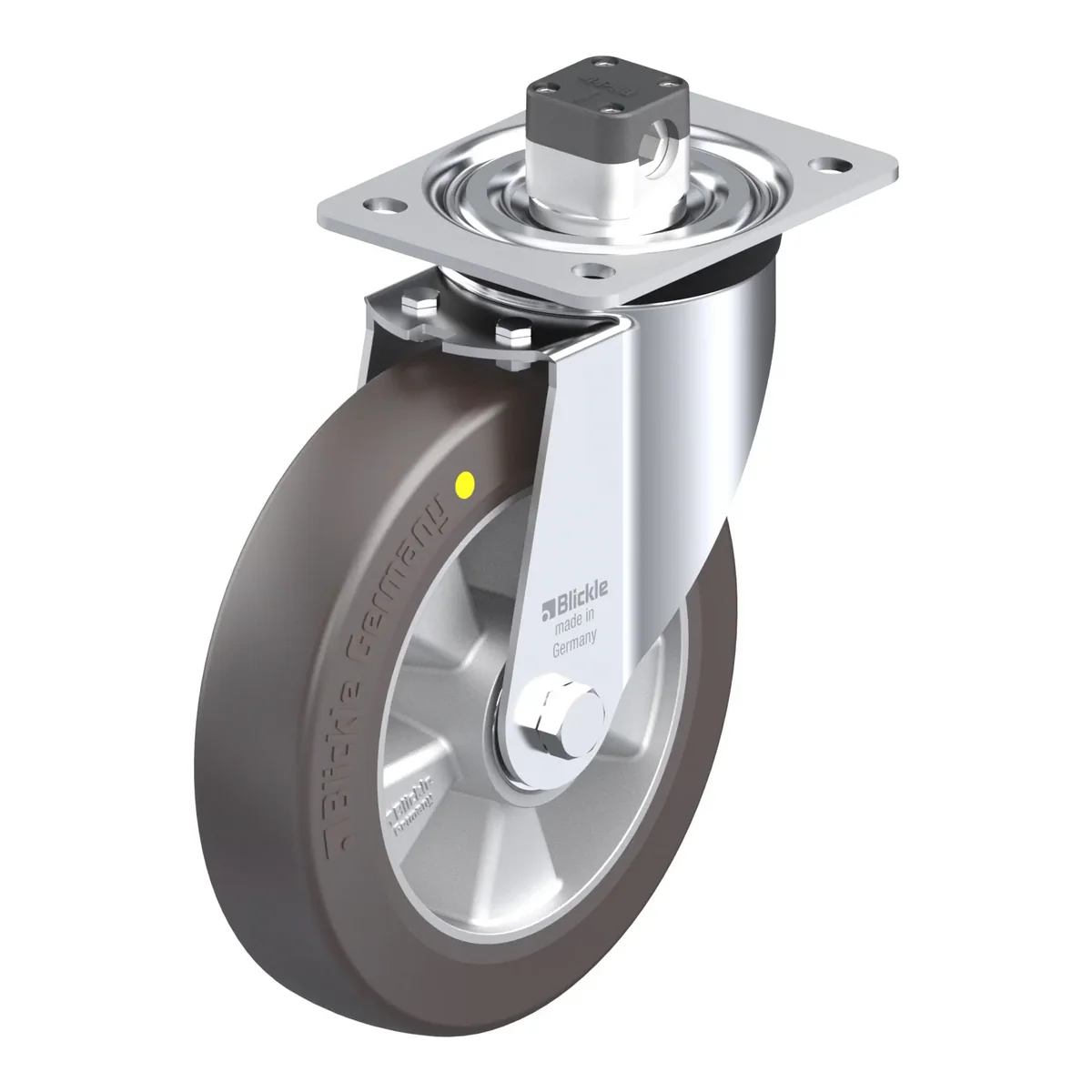

L-ALST 200K-CS11-AS – okretni točkić Blickle

Šifra 936469

L-ALST 200K-CS11-AS

Okretni točkić, Blickle, Made in Germany

Ukratko: L-ALST 200K-CS11-AS je okretni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 400 kg pri 4 km/h (statički 1000 kg). Ukupna visina je 235 mm. Radi na temperaturi od -20 °C do 70 °C. Cijena je 330.78 KM s PDV-om.

Pressed steel swivel castor, medium duty design, with top plate fitting, with central brake system 'central-stop', heavy duty wheel, with Blickle Softhane® polyurethane tread, with aluminium wheel centre, antistatic

330.78 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla936469
EAN4047526388805
Promjer točka200 mm
Širina točka50 mm
Ukupna visina235 mm
Nosivost pri 4 km/h400 kg
Statička nosivost1000 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset63 mm
Tvrdoća gazišta75 Shore A
Radna temperatura-20 °C do 70 °C
Težina3.6 kg
Ne ostavlja tragoveda
ESD zaštitada

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 150 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality polyurethane elastomer Blickle Softhane®, hardness 75 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: die-cast aluminium, colour silver grey

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
  • electrical conductivity (ohmic resistance) ≤ 107Ω
