Šifra 939519
BS-GTH 201K-FS
Fiksni točkić, Blickle, Made in Germany
Ukratko: BS-GTH 201K-FS je fiksni točkić Blickle promjera 200 mm, širine 60 mm, nosivosti 1400 kg pri 4 km/h (statički 3500 kg). Ukupna visina je 245 mm. Cijena je 415.41 KM s PDV-om.

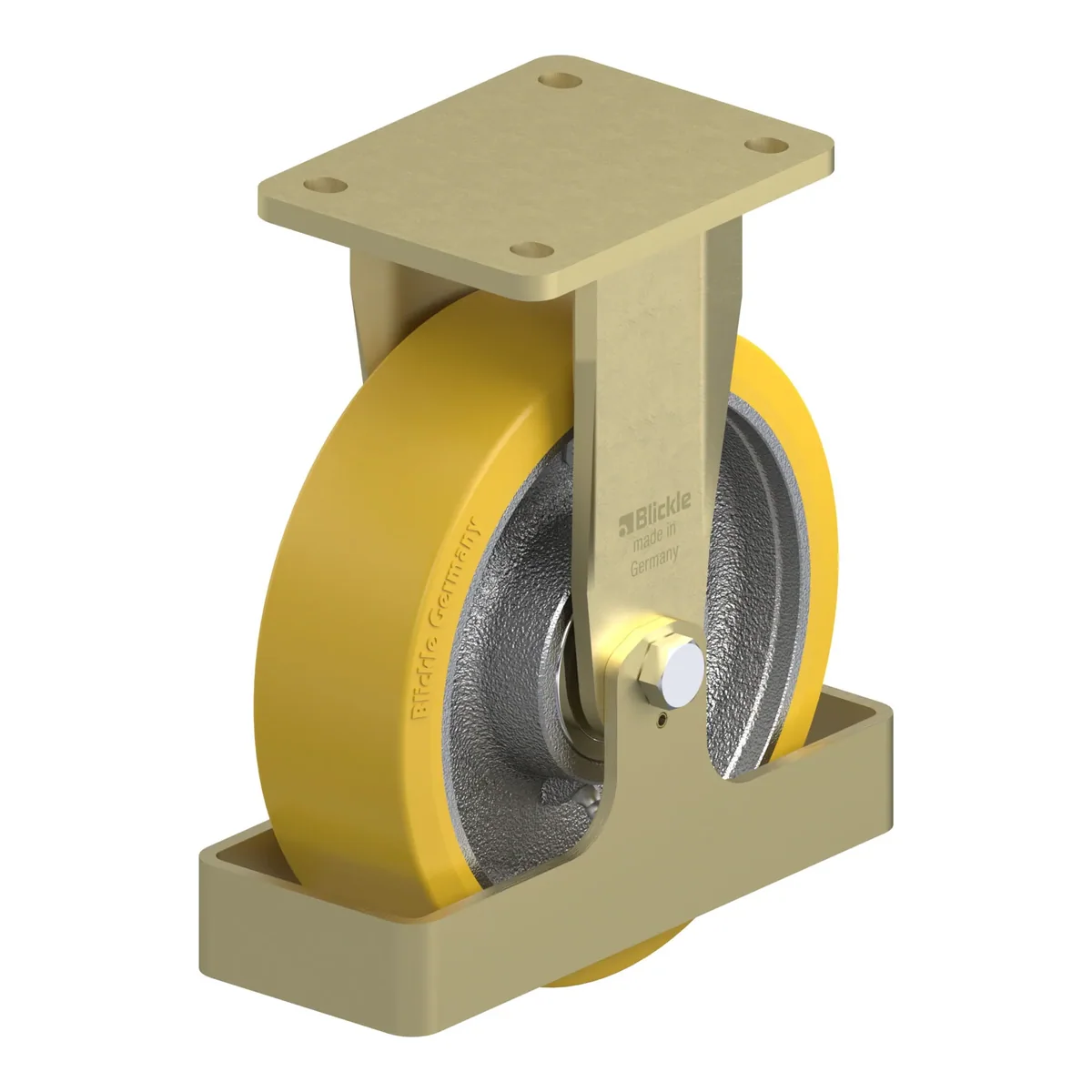

Heavy duty welded steel fixed castor, steel foot guard, heavy duty wheel, with Blickle Extrathane® polyurethane tread, with cast iron wheel centre
415.41 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 939519 |
|---|---|
| EAN | 4047526404345 |
| Promjer točka | 200 mm |
| Širina točka | 60 mm |
| Ukupna visina | 245 mm |
| Nosivost pri 4 km/h | 1400 kg |
| Statička nosivost | 3500 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Ne ostavlja tragove | da |
Nosač
- particularly robust welded steel construction
- zinc-plated, yellow-passivated, Cr6-free
Točak
- tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour yellow, non-marking, non-staining
- wheel centre: rugged grey cast iron
- with grease nipple, lacquered, colour silver
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
