Šifra 313155
L-POEV 100G-SG

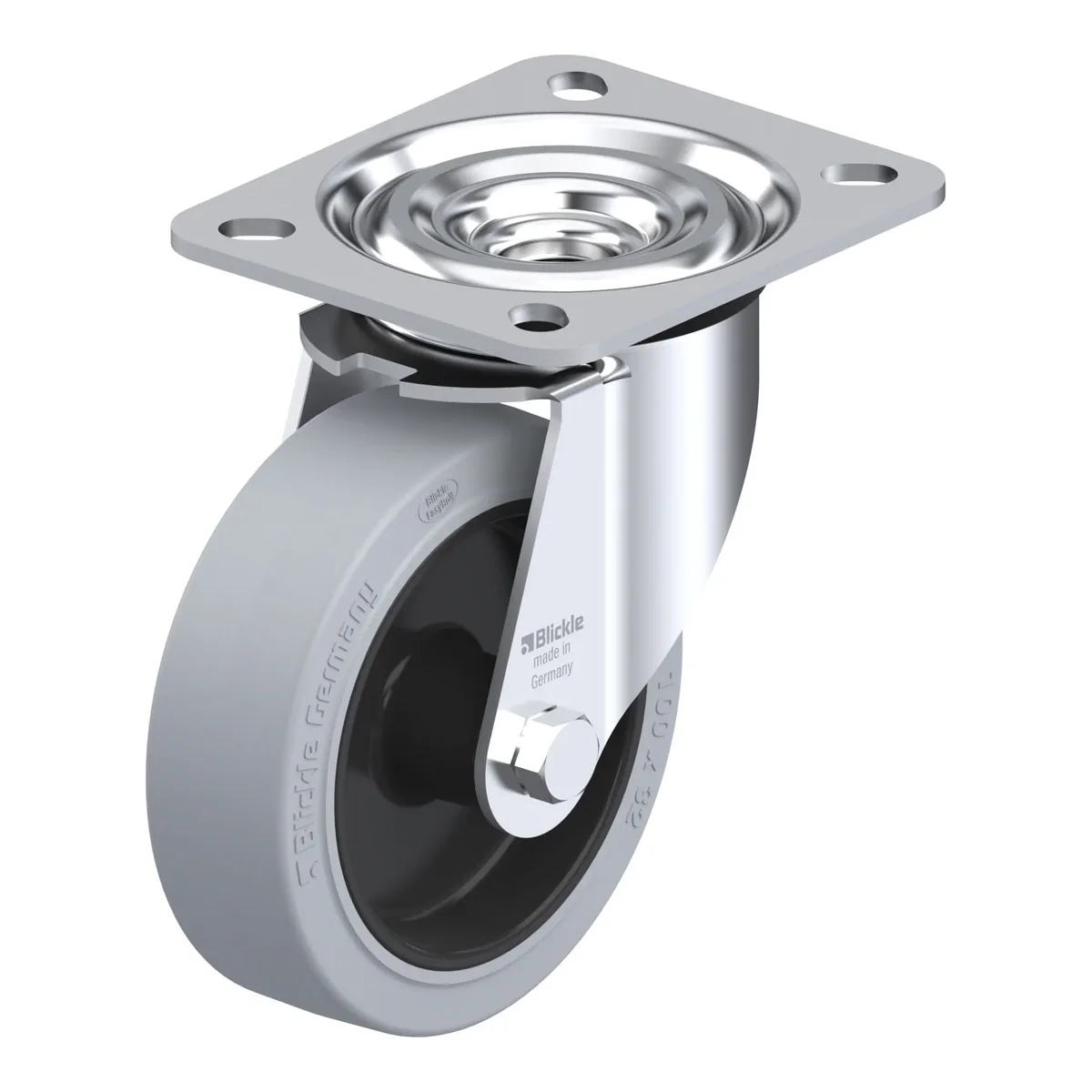

Okretni točkić, Blickle, Made in Germany
Ukratko: L-POEV 100G-SG je okretni točkić Blickle promjera 100 mm, širine 32 mm, nosivosti 200 kg pri 4 km/h (statički 500 kg). Ukupna visina je 125 mm. Cijena je 41.17 KM s PDV-om.
Pressed steel swivel castor, medium duty design, with top plate fitting, heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with nylon wheel centre, non-marking, grey
41.17 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 313155 |
|---|---|
| EAN | 4047526313159 |
| Promjer točka | 100 mm |
| Širina točka | 32 mm |
| Ukupna visina | 125 mm |
| Nosivost pri 4 km/h | 200 kg |
| Statička nosivost | 500 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
| Offset | 36 mm |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin (from wheel Ø 150 mm)
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour grey, non-marking
- wheel centre: high-quality nylon 6, impact resistant, colour black
Dodatne karakteristike
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +35 °C
