Šifra 849002
LKRA-POA 100G-11-FI-ER15

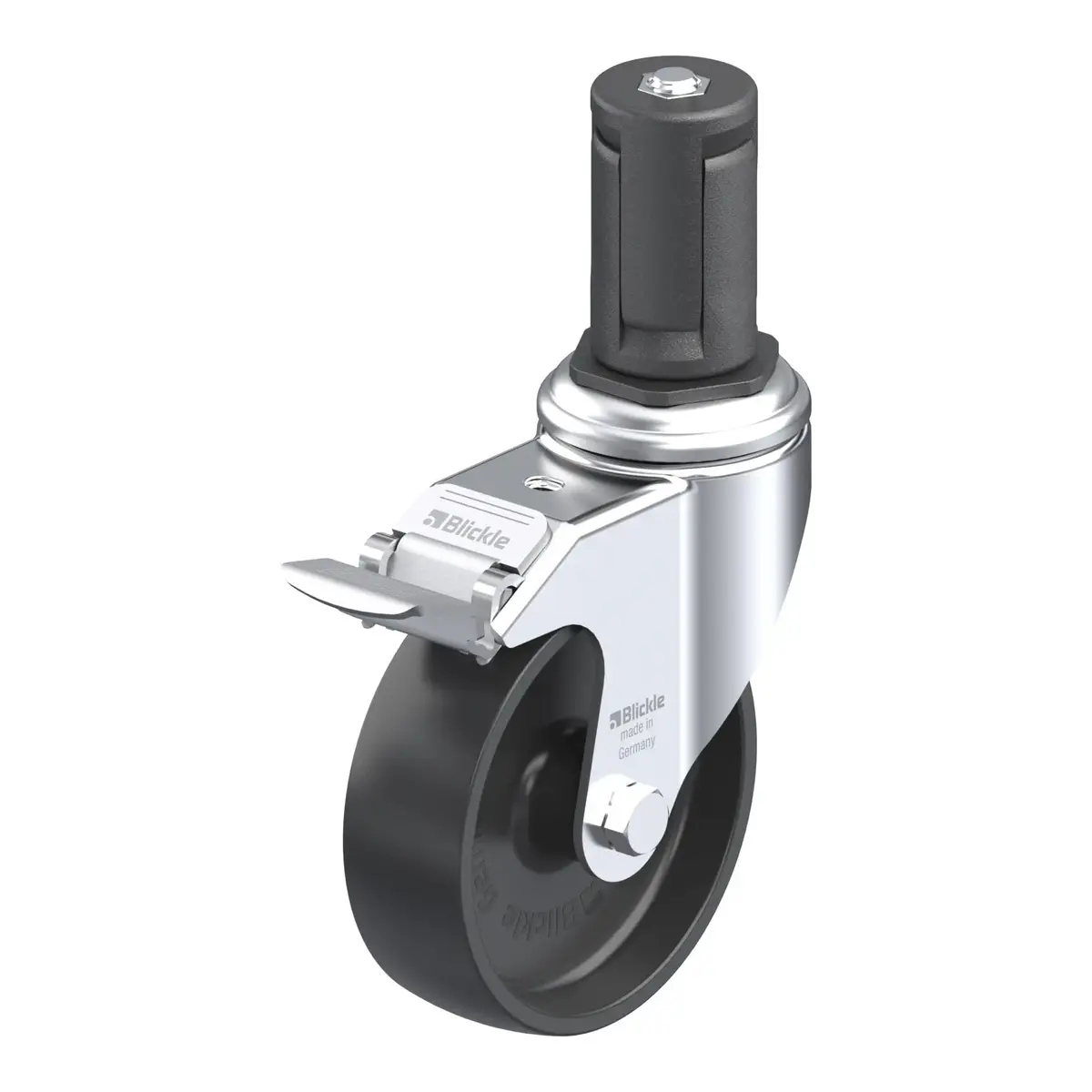

Okretni točkić, Blickle, Made in Germany
Ukratko: LKRA-POA 100G-11-FI-ER15 je okretni točkić Blickle promjera 100 mm, širine 32 mm, nosivosti 120 kg pri 4 km/h (statički 300 kg). Ukupna visina je 136 mm. Cijena je 57.38 KM s PDV-om.
Light duty swivel castor, with bolt hole fitting, with synthetic expander, with brake system 'stop-fix', nylon wheel
57.38 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 849002 |
|---|---|
| EAN | 4047526147099 |
| Promjer točka | 100 mm |
| Širina točka | 32 mm |
| Ukupna visina | 136 mm |
| Nosivost pri 4 km/h | 120 kg |
| Statička nosivost | 300 kg |
| Offset | 40 mm |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour black
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
