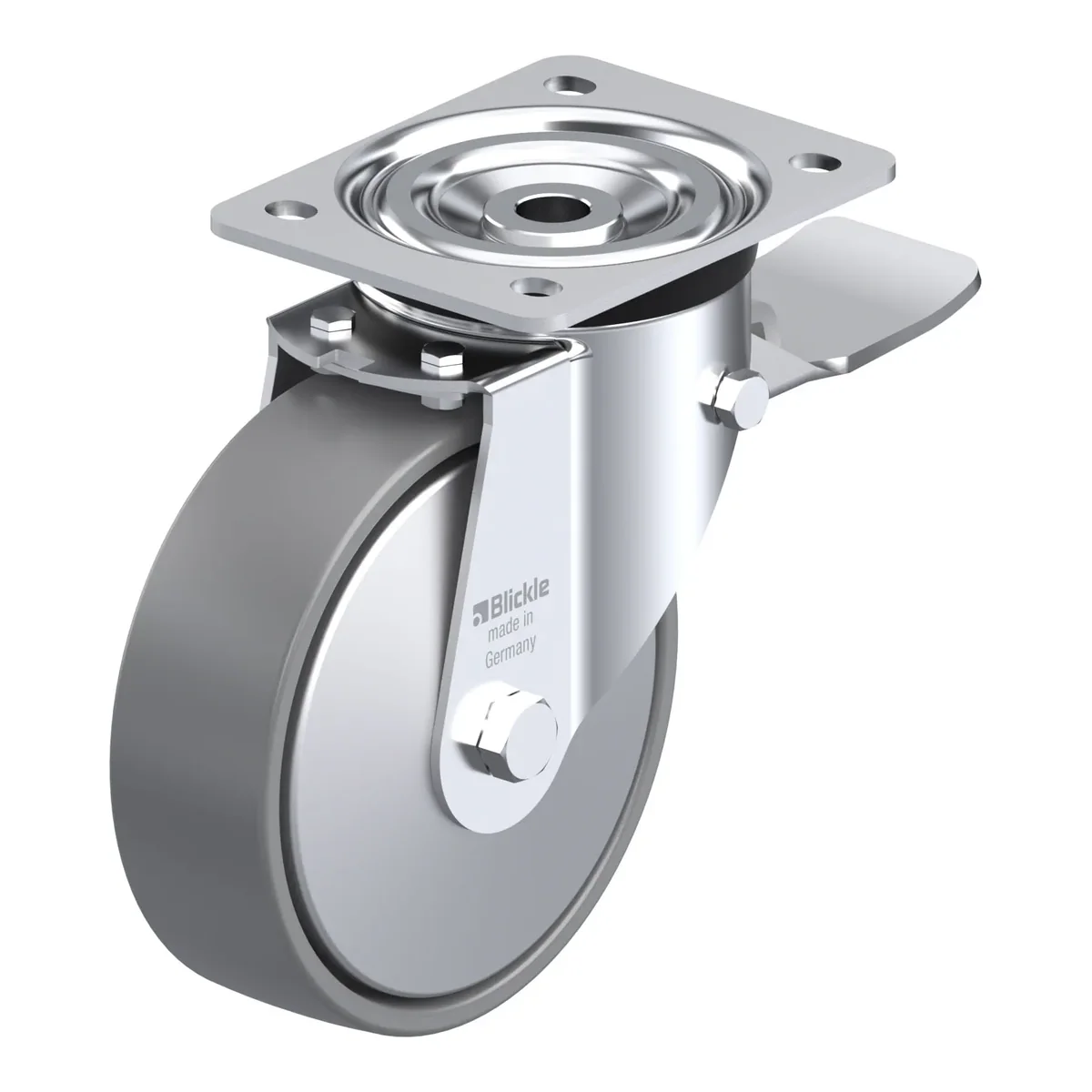

L-PO 160K-ST-ELS-FA – okretni točkić Blickle

Šifra 946874

L-PO 160K-ST-ELS-FA

Okretni točkić, Blickle, Made in Germany

Ukratko: L-PO 160K-ST-ELS-FA je okretni točkić Blickle promjera 160 mm, širine 50 mm, nosivosti 400 kg pri 4 km/h (statički 1000 kg). Ukupna visina je 195 mm. Cijena je 208.49 KM s PDV-om.

Pressed steel swivel castor, medium duty design, with top plate fitting, with brake system 'stop-top', nylon wheel, with steel thread guard, electrically conductive, non-marking

208.49 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla946874
EAN4047526374068
Promjer točka160 mm
Širina točka50 mm
Ukupna visina195 mm
Nosivost pri 4 km/h400 kg
Statička nosivost1000 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset60 mm
Ne ostavlja tragoveda
ESD zaštitada

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 150 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • high-quality nylon 6, impact resistant, hardness 70 Shore D, colour grey, non-marking

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
  • electrical conductivity (ohmic resistance) ≤ 104Ω
