Šifra 625756

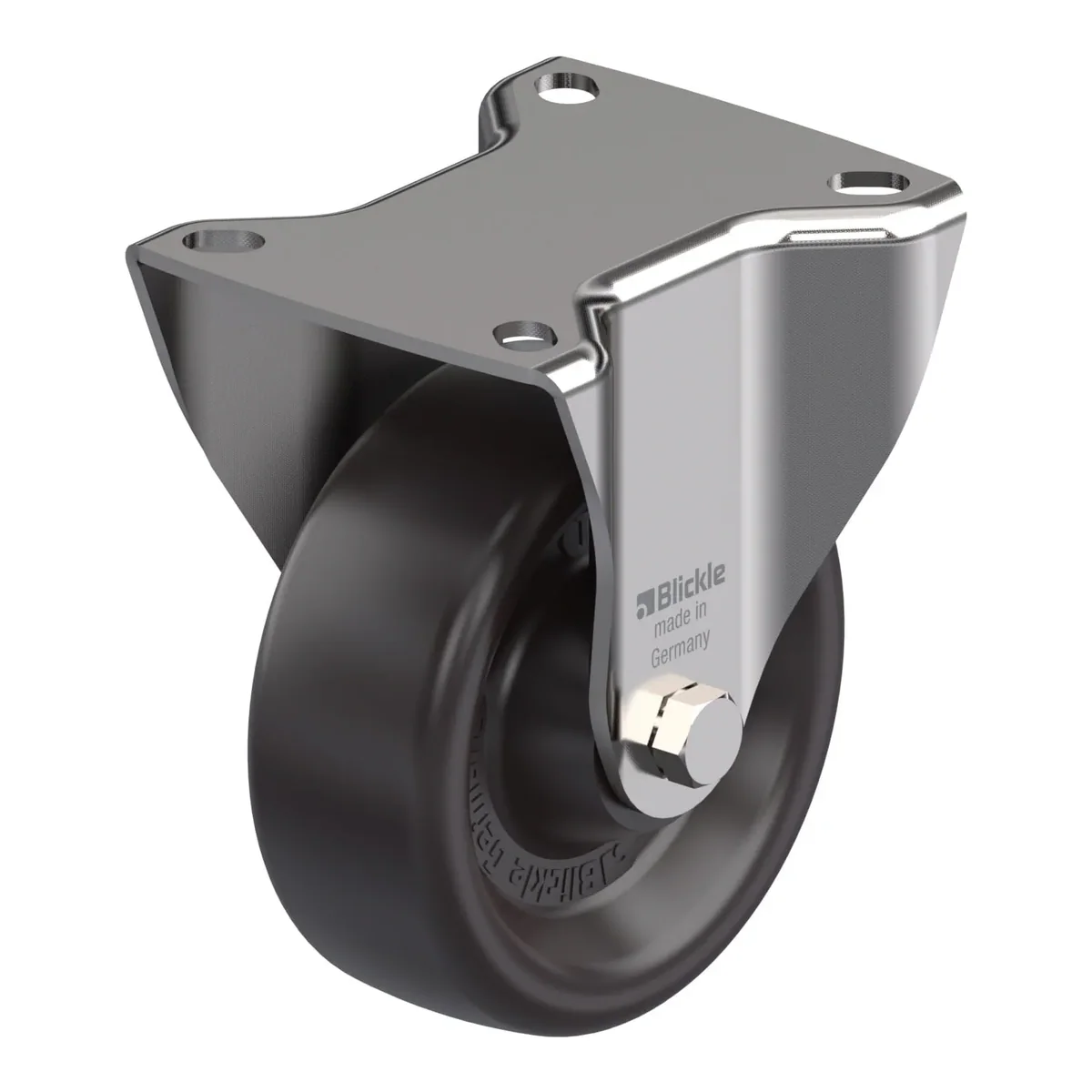

BX-PHN 102G
Fiksni točkić, Blickle, Made in Germany
Ukratko: BX-PHN 102G je fiksni točkić Blickle promjera 100 mm, širine 38 mm, nosivosti 200 kg pri 4 km/h (statički 500 kg). Ukupna visina je 125 mm. Cijena je 95.54 KM s PDV-om.
Stainless steel fixed castor, with top plate fitting, Blickle TempLine® Classic thermoset wheel, heat-resistant
95.54 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 625756 |
|---|---|
| EAN | 4047526625757 |
| Promjer točka | 100 mm |
| Širina točka | 38 mm |
| Ukupna visina | 125 mm |
| Nosivost pri 4 km/h | 200 kg |
| Statička nosivost | 500 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
| Otporan na koroziju | da |
Nosač
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- all parts including axle material are corrosion-resistant
Točak
- phenolic resin, hardness 90 Shore D, colour black
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -35 °C to +260 °C
- wheels are only conditionally suitable for uneven floors and crossing thresholds
