Šifra 938909
L-POTH 100R-FI-FS
Okretni točkić, Blickle, Made in Germany
Ukratko: L-POTH 100R-FI-FS je okretni točkić Blickle promjera 100 mm, širine 35 mm, nosivosti 250 kg pri 4 km/h (statički 625 kg). Ukupna visina je 125 mm. Cijena je 120.14 KM s PDV-om.

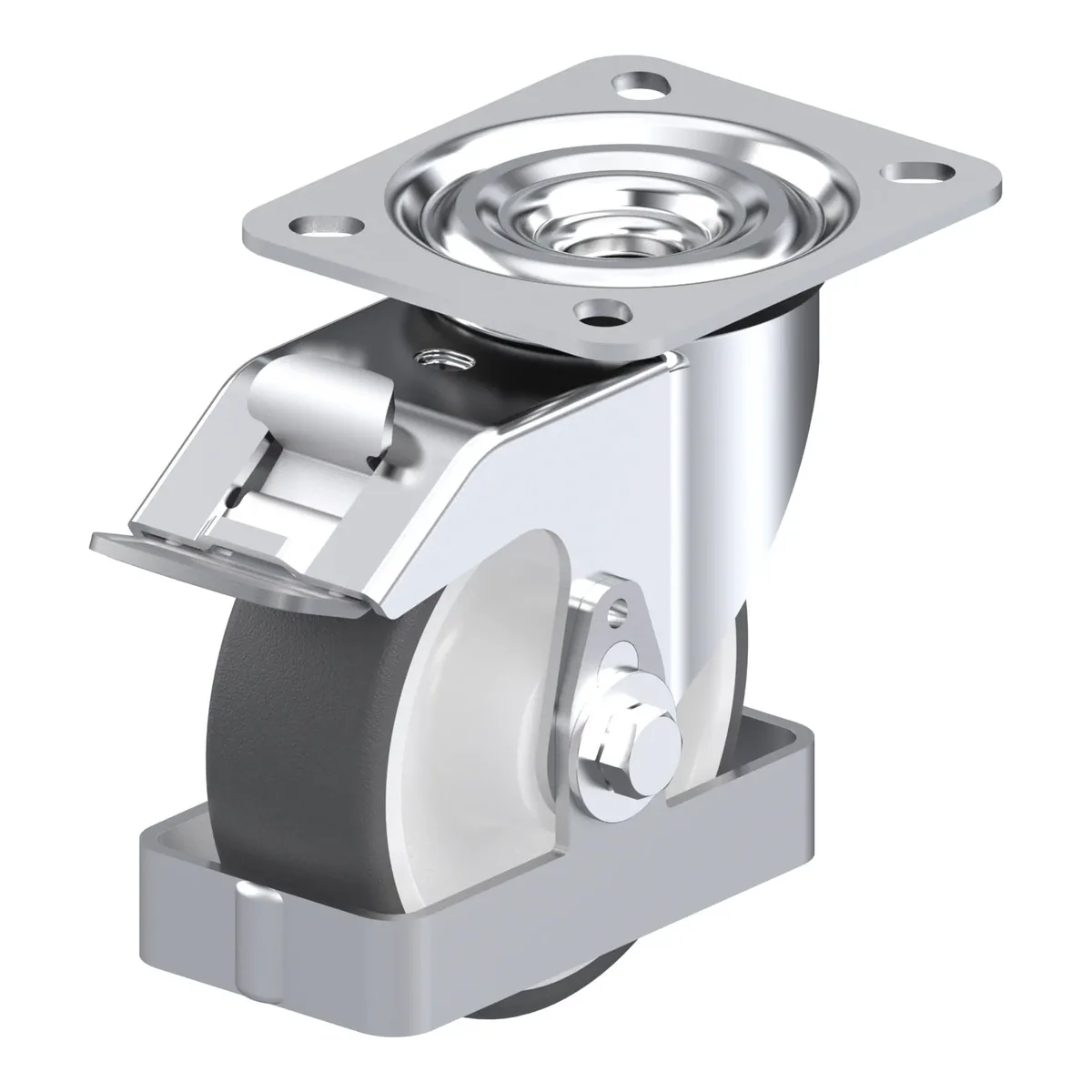

Pressed steel swivel castor, medium duty design, with top plate fitting, with brake system 'stop-fix', steel foot guard, wheel, with thermoplastic polyurethane tread, with heavy duty nylon wheel centre
120.14 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 938909 |
|---|---|
| EAN | 4047526398897 |
| Promjer točka | 100 mm |
| Širina točka | 35 mm |
| Ukupna visina | 125 mm |
| Nosivost pri 4 km/h | 250 kg |
| Statička nosivost | 625 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
| Offset | 36 mm |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin (from wheel Ø 150 mm)
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
- wheel centre: high-quality nylon 6, impact resistant, colour natural white
Dodatne karakteristike
- very high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
