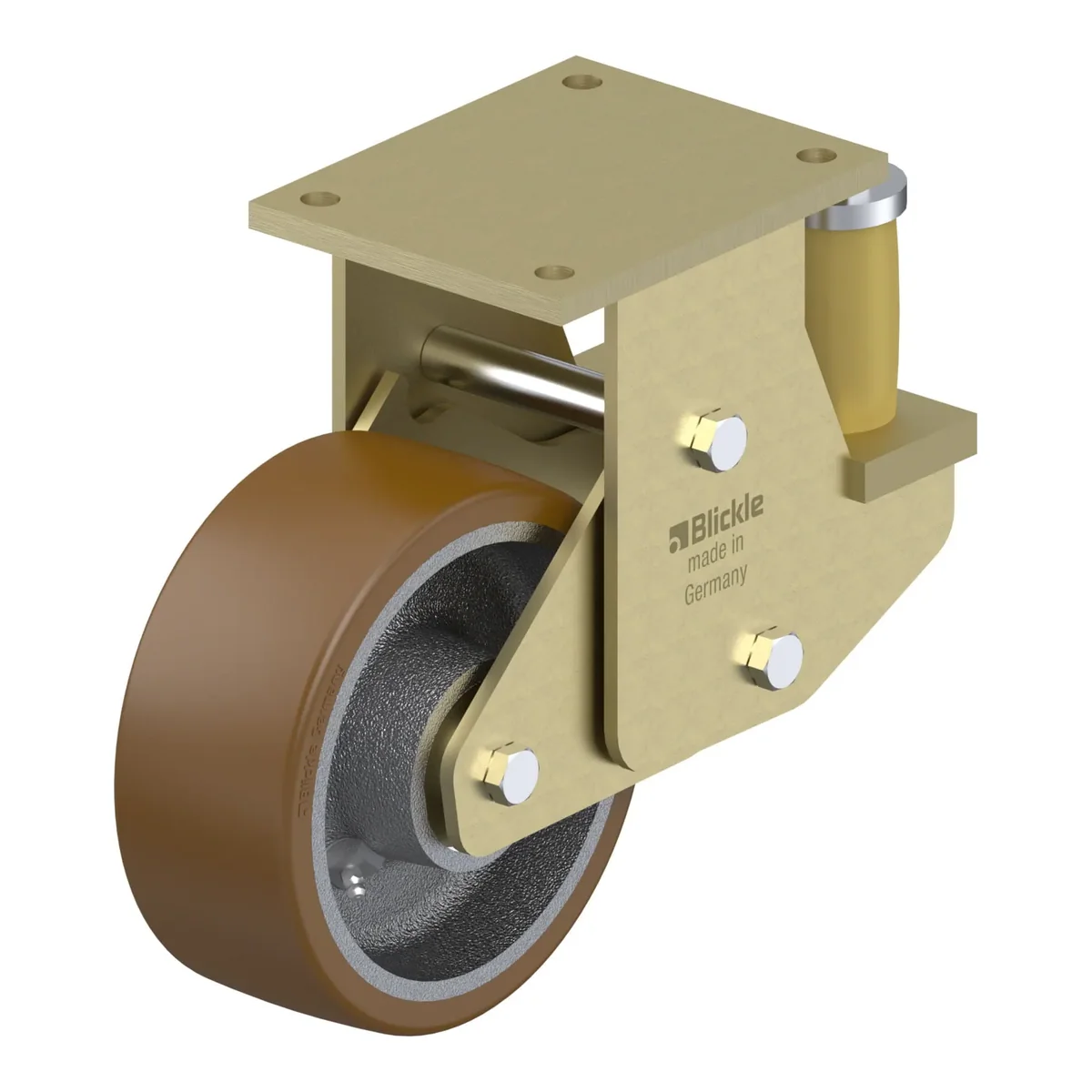

BSFE-GB 202K – fiksni točkić Blickle

Šifra 755416

BSFE-GB 202K

Fiksni točkić, Blickle, Made in Germany

Ukratko: BSFE-GB 202K je fiksni točkić Blickle promjera 200 mm, širine 80 mm, nosivosti 1600 kg pri 4 km/h (statički 4000 kg). Ukupna visina je 275 mm. Cijena je 900.43 KM s PDV-om.

Heavy duty welded steel fixed castor, with polyurethane spring, heavy duty wheel, with Blickle Besthane® polyurethane tread, with cast iron wheel centre

900.43 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla755416
EAN4047526078140
Promjer točka200 mm
Širina točka80 mm
Ukupna visina275 mm
Nosivost pri 4 km/h1600 kg
Statička nosivost4000 kg
Veličina ploče175 x 140 mm
Razmak rupa140.0 x 110.0 mm
Offset101 mm
Ne ostavlja tragoveda

Nosač

  • particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
  • elastomer spring for excellent damping properties
  • maintenance-free spring mechanism

Točak

  • tread: high-quality polyurethane elastomer Blickle Besthane®, hardness 92 Shore A, colour brown, non-marking, non-staining
  • wheel centre: rugged grey cast iron, with grease nipple from wheel Ø 150 mm, lacquered, colour silver

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
