Šifra 762802
L-PPN 125R-ST

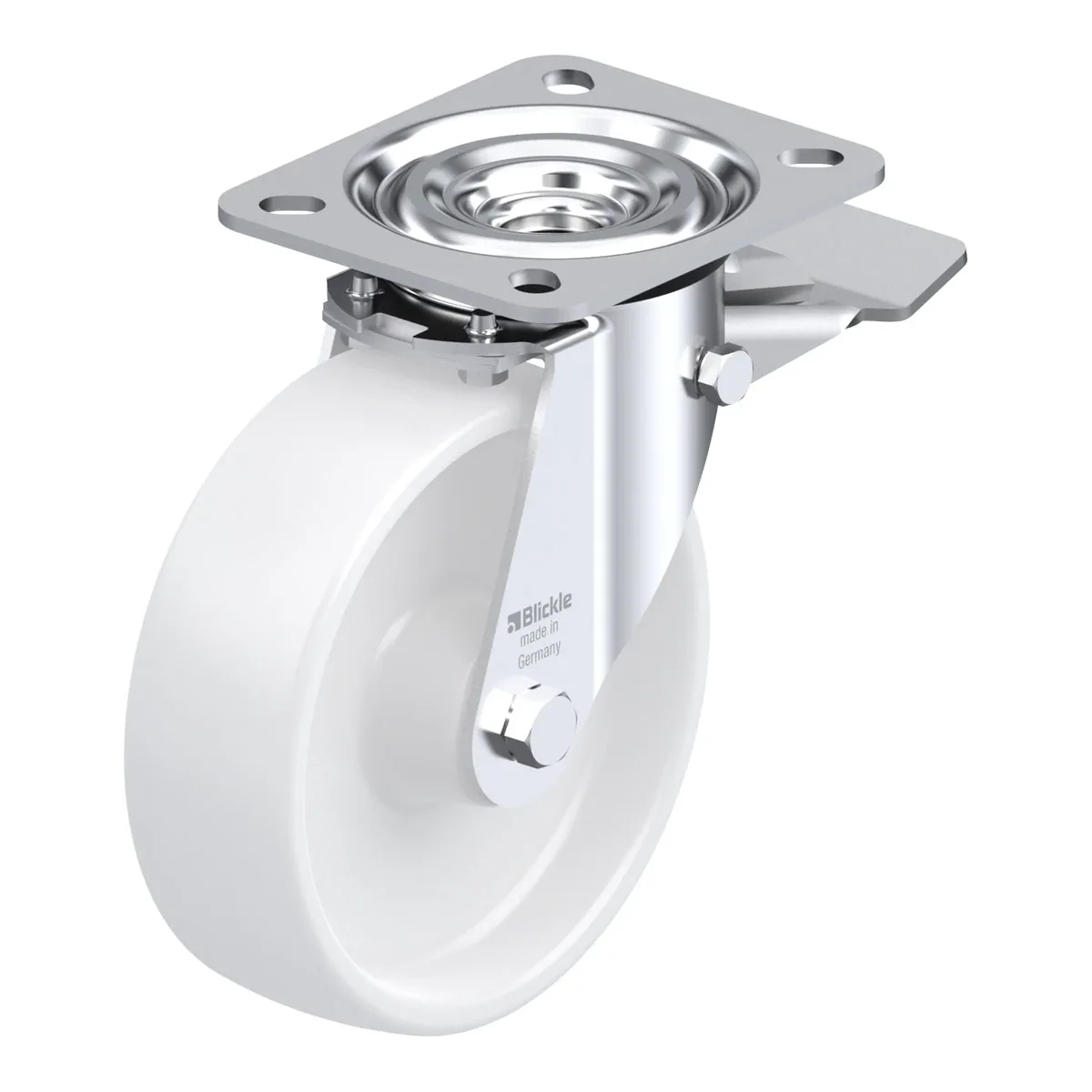

Okretni točkić, Blickle, Made in Germany
Ukratko: L-PPN 125R-ST je okretni točkić Blickle promjera 125 mm, širine 40 mm, nosivosti 200 kg pri 4 km/h (statički 500 kg). Ukupna visina je 150 mm. Cijena je 78.47 KM s PDV-om.
Pressed steel swivel castor, medium duty design, with top plate fitting, with brake system 'stop-top', polypropylene wheel
78.47 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 762802 |
|---|---|
| EAN | 4047526121044 |
| Promjer točka | 125 mm |
| Širina točka | 40 mm |
| Ukupna visina | 150 mm |
| Nosivost pri 4 km/h | 200 kg |
| Statička nosivost | 500 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
| Offset | 38 mm |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin (from wheel Ø 150 mm)
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- high-quality polypropylene, impact resistant, hardness 60 Shore D, colour natural white
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
