Šifra 561605
L-V 140R-FI

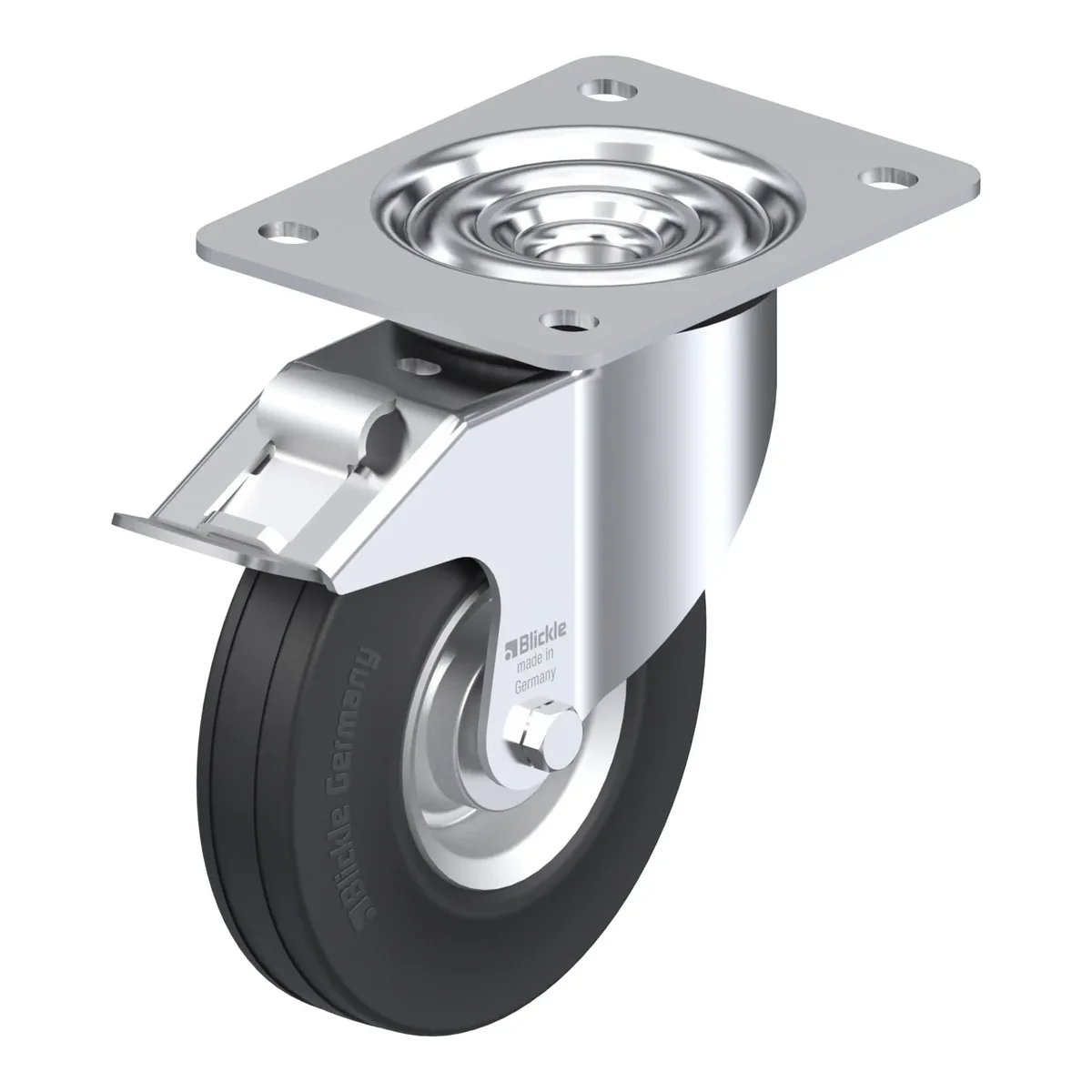

Okretni točkić, Blickle, Made in Germany
Ukratko: L-V 140R-FI je okretni točkić Blickle promjera 140 mm, širine 37.5 mm, nosivosti 115 kg pri 4 km/h (statički 290 kg). Ukupna visina je 170 mm. Radi na temperaturi od -25 °C do 70 °C. Cijena je 89.49 KM s PDV-om.
Pressed steel swivel castor, medium duty design, with top plate fitting, with brake system 'stop-fix', wheel, with standard solid rubber tyre, with pressed steel rim, reinforced design
89.49 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 561605 |
|---|---|
| EAN | 4047526561604 |
| Promjer točka | 140 mm |
| Širina točka | 37.5 mm |
| Ukupna visina | 170 mm |
| Nosivost pri 4 km/h | 115 kg |
| Statička nosivost | 290 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 45 mm |
| Tvrdoća gazišta | 80 Shore A |
| Radna temperatura | -25 °C do 70 °C |
| Težina | 2.1 kg |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin (from wheel Ø 150 mm)
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tyre: standard solid rubber, hardness 80 Shore A, colour black
- rim: pressed steel, strong rim structure with tubular steel hub, bolted or pressed, zinc-plated, blue-passivated, Cr6-free
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
