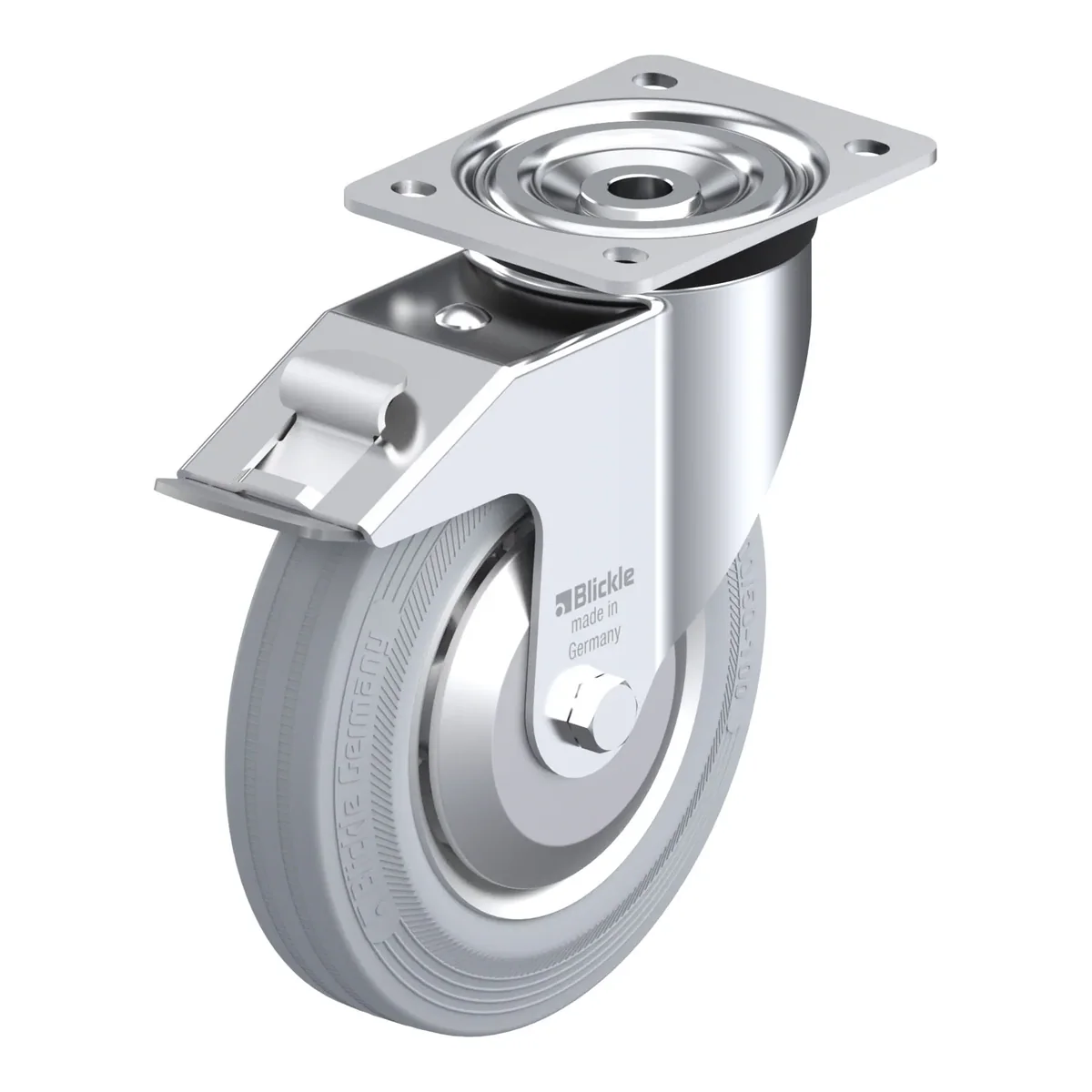

L-V 200K-FI-SG-FA – okretni točkić Blickle

Šifra 399865

L-V 200K-FI-SG-FA

Okretni točkić, Blickle, Made in Germany

Ukratko: L-V 200K-FI-SG-FA je okretni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 205 kg pri 4 km/h (statički 512.5 kg). Ukupna visina je 235 mm. Cijena je 226.08 KM s PDV-om.

Pressed steel swivel castor, medium duty design, with top plate fitting, with brake system 'stop-fix', wheel, with standard solid rubber tyre, with pressed steel rim, reinforced design, non-marking, grey, with steel thread guard

226.08 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla399865
EAN4047526399863
Promjer točka200 mm
Širina točka50 mm
Ukupna visina235 mm
Nosivost pri 4 km/h205 kg
Statička nosivost512.5 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset63 mm
Ne ostavlja tragoveda

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 150 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: standard solid rubber, hardness 80 Shore A, colour grey, non-marking
  • rim: pressed steel, strong rim structure with tubular steel hub, bolted or pressed, zinc-plated, blue-passivated, Cr6-free

Dodatne karakteristike

  • chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +80 °C, reduced load capacity over +60 °C
