Šifra 850143

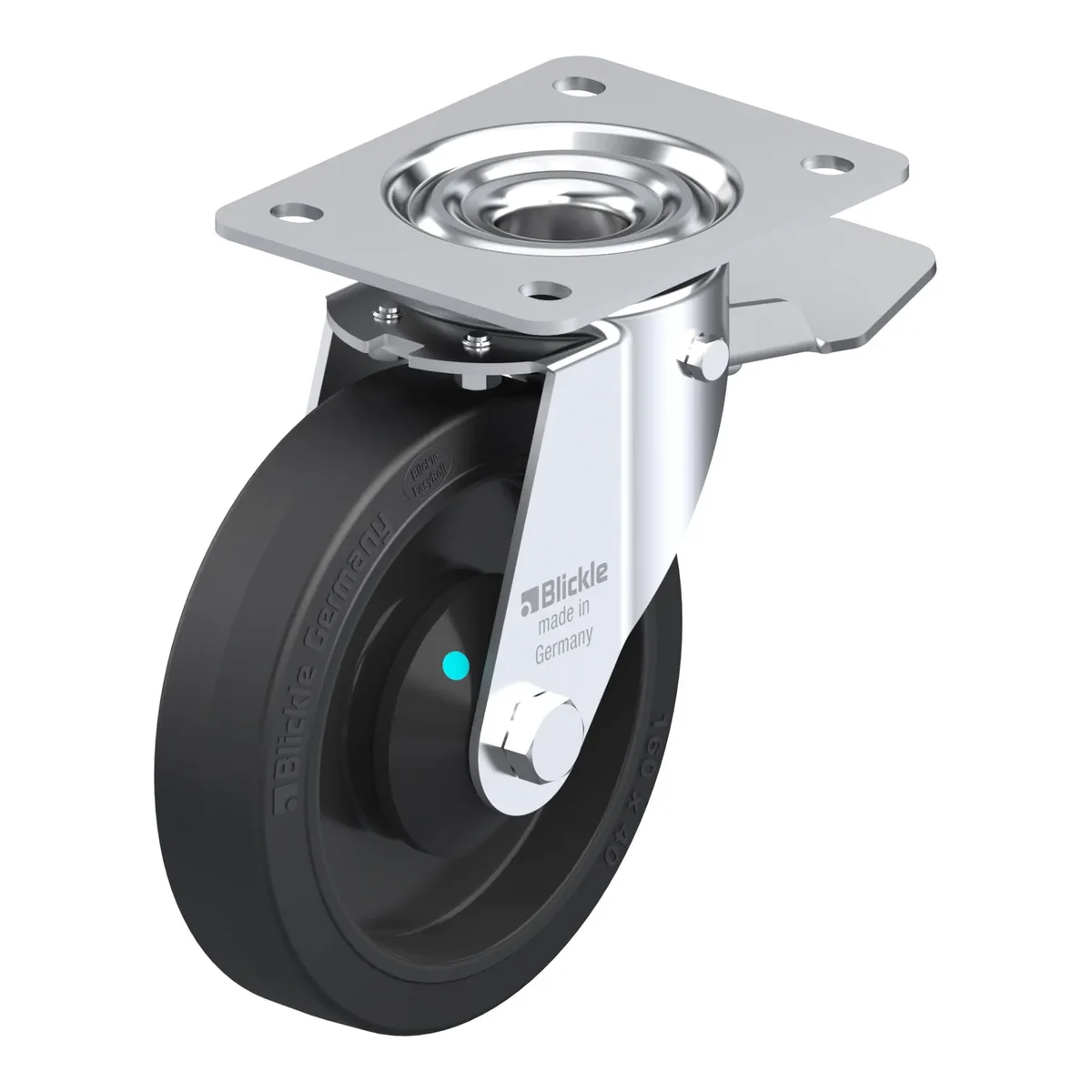

LE-POEV 161KAD-ST
Okretni točkić, Blickle, Made in Germany
Ukratko: LE-POEV 161KAD-ST je okretni točkić Blickle promjera 160 mm, širine 40 mm, nosivosti 300 kg pri 4 km/h (statički 750 kg). Ukupna visina je 195 mm. Cijena je 136.34 KM s PDV-om.
Pressed steel swivel castor, with top plate fitting, with brake system 'stop-top', heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with nylon wheel centre, with synthetic thread guard, small, w ith additionals ball bearing seals
136.34 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 850143 |
|---|---|
| EAN | 4047526161200 |
| Promjer točka | 160 mm |
| Širina točka | 40 mm |
| Ukupna visina | 195 mm |
| Nosivost pri 4 km/h | 300 kg |
| Statička nosivost | 750 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 54 mm |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour black
- wheel centre: high-quality nylon 6, impact resistant, colour black
Dodatne karakteristike
- small thread guard, with additional, ball bearing seal
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +35 °C
