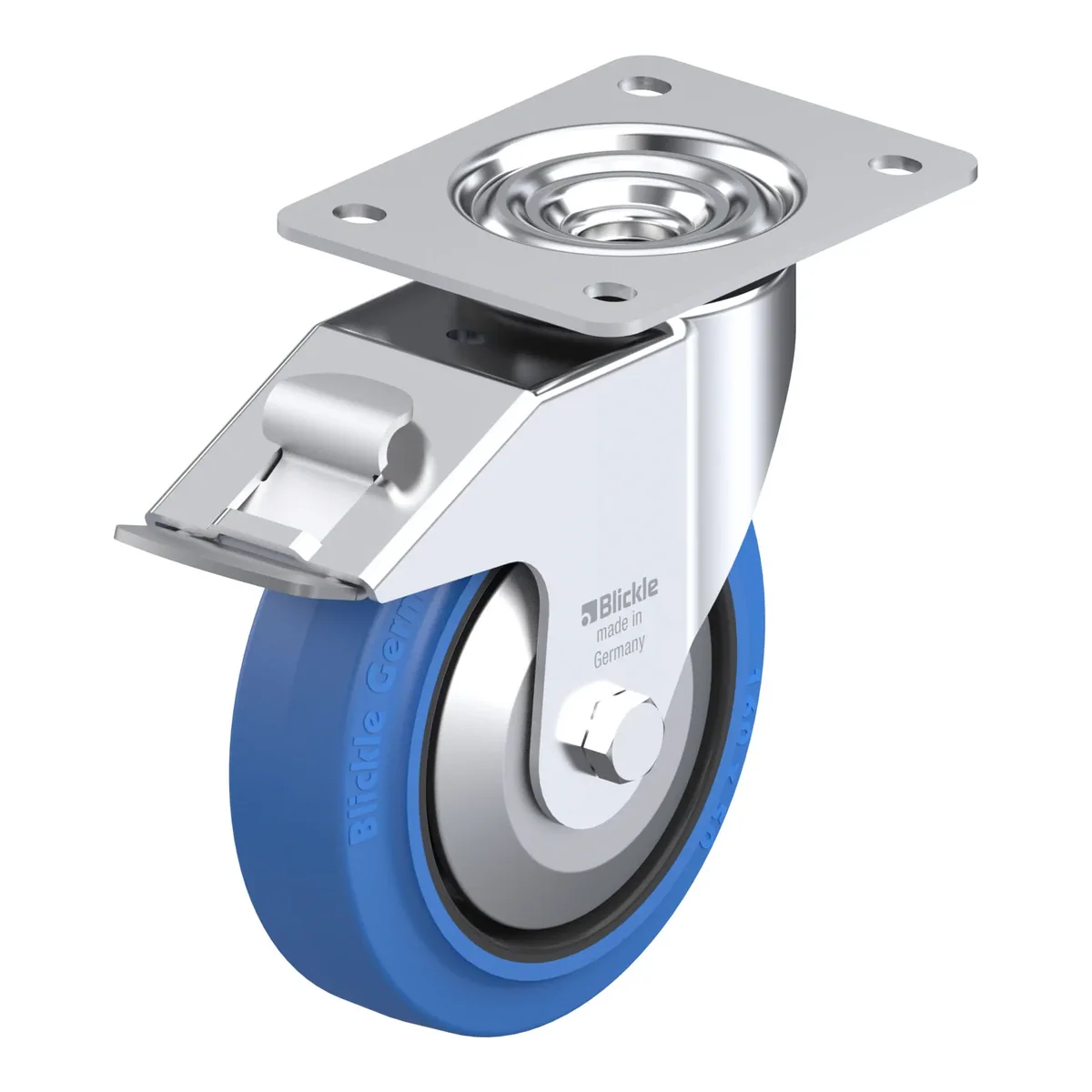

LE-POEV 160R-FI-SB-FA – okretni točkić Blickle

Šifra 749629

LE-POEV 160R-FI-SB-FA

Okretni točkić, Blickle, Made in Germany

Ukratko: LE-POEV 160R-FI-SB-FA je okretni točkić Blickle promjera 160 mm, širine 50 mm, nosivosti 300 kg pri 4 km/h (statički 750 kg). Ukupna visina je 195 mm. Radi na temperaturi od -25 °C do 70 °C. Cijena je 143.38 KM s PDV-om.

Pressed steel swivel castor, with top plate fitting, with brake system 'stop-fix', heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with nylon wheel centre, non-marking, blue, with steel thread guard

143.38 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla749629
EAN4047526014445
Promjer točka160 mm
Širina točka50 mm
Ukupna visina195 mm
Nosivost pri 4 km/h300 kg
Statička nosivost750 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset48 mm
Tvrdoća gazišta65 Shore A
Radna temperatura-25 °C do 70 °C
Težina2.4 kg
Ne ostavlja tragoveda

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour blue, non-marking
  • wheel centre: high-quality nylon 6, impact resistant, colour black

Dodatne karakteristike

  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -25 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +35 °C
